Executive Summary
A quality plan is the working agreement that connects an OEM product requirement to the actual sequence of manufacturing, inspection, documentation, and release decisions. For custom metal parts, it should do more than list a final inspection report. It should identify where variation can enter, define which characteristics matter most, specify how they will be checked, and establish what evidence the supplier must retain or submit.
For an international buyer, the plan is also a supplier-alignment document. It reduces interpretation differences between the drawing, purchase order, supplier process, and receiving inspection. The strongest plans are proportionate: they apply rigorous controls to safety, fit, function, and regulatory characteristics while keeping routine features efficient to inspect. They are agreed before production, updated when the design or process changes, and written clearly enough that different teams can use them without relying on informal explanations.
What a Quality Plan Must Accomplish
A useful plan answers five operational questions. What is being made? Which requirements are critical? At what process stage can each requirement be controlled? What method and acceptance rule will be used? Which record proves that the control occurred?
The plan should be traceable to the latest approved drawing, three-dimensional model where applicable, specifications, packaging requirements, and purchase terms. Revision status is essential. A supplier can perform every inspection correctly and still deliver the wrong product if an obsolete drawing, model, or process instruction remains active in the production area.
A quality plan should distinguish between a product characteristic and a process control. A hole diameter is a product characteristic; tool-life monitoring, fixture verification, or first-piece approval may be process controls that protect it. Both belong in the plan when they materially affect conformity.
| Plan element | Buyer and supplier alignment question | |---|---| | Requirement | Which drawing, specification, or model defines it? | | Risk | What failure could result if it varies? | | Control point | Where can the feature be prevented or detected most effectively? | | Method | What instrument, gauge, visual standard, or test will be used? | | Frequency | Is the check first-piece, periodic, 100 percent, or lot-based? | | Record | What evidence is created, by whom, and for how long? | | Reaction | What happens when the result is out of specification? |
Start With Product and Process Understanding
Before assigning inspection frequencies, map the manufacturing route. A machined housing may pass through material receipt, sawing, rough machining, heat treatment, finish machining, deburring, surface treatment, cleaning, final inspection, and packing. A stamped bracket may involve coil receipt, die setup, first-off approval, progressive forming, trimming, secondary operations, coating, and final audit. Welded fabrications add joint preparation, fit-up, welding, distortion control, cleaning, and possible nondestructive examination.
The route matters because a final check cannot reliably compensate for weak upstream controls. A dimension may be correct after machining but shift after stress relief. A coating may meet thickness requirements but fail adhesion because surface preparation was inconsistent. A welded assembly may pass an external visual check while containing an unacceptable internal discontinuity if the specified examination was omitted.
Create a simple process flow and place each important characteristic at the earliest practical control point. Use prevention where it is credible, detection where prevention is insufficient, and final verification as confirmation rather than the only safeguard. This approach also helps the buyer see which operations are performed by the supplier and which are subcontracted.
Classify Characteristics by Consequence
Not every dimension deserves identical treatment. Classify characteristics according to their effect on safety, assembly, performance, service life, compliance, and downstream cost. Typical categories include critical or special characteristics, key functional features, general dimensional requirements, appearance requirements, and process or documentation requirements.
The classification must be understandable to the supplier. If the OEM uses symbols, codes, or characteristic numbering, provide a legend. Avoid marking nearly every feature as critical; that practice dilutes attention and can make the plan expensive without making it more effective. Conversely, do not hide a sealing diameter, bearing seat, mounting datum, thread, material grade, or heat-treatment condition among routine requirements.
A characteristic should be called out as special when its failure has a meaningful consequence and when additional control is justified. The appropriate control might be a validated fixture, a calibrated gauge, a capability study, a defined sampling rule, a documented setup approval, or a test record. The requirement and the reason for enhanced control should be clear even if the buyer does not disclose internal risk calculations.
Define Control Points by Operation
A control plan is most useful when organized by process step. For each operation, identify inputs, outputs, equipment or tooling, responsible personnel, inspection method, record, and reaction plan.
At material receipt, verify the material designation, form, quantity, heat or batch identification when traceability is required, and accompanying documentation. The supplier should have a clear method for segregating unidentified or suspect material. For parts made from bar, sheet, plate, tube, or cast stock, the plan should state whether traceability must remain linked to the finished lot.
At setup and first-piece approval, verify the active revision, program or tooling version, fixture condition, datum strategy, and initial measurements. First-piece approval is particularly important after a new setup, tool change, program revision, or extended interruption. It should not be treated as a ceremonial signature; the record should show which features were checked and who authorized continuation.
During production, select controls that detect drift before a large quantity is affected. Examples include periodic dimensional checks, tool-offset review, in-process probing, forming-height checks, weld-parameter monitoring, bath-control records for finishing, and visual checks against an agreed standard. Frequency should reflect process stability, lot size, feature consequence, and the possibility that a defect could escape unnoticed.
After special processes, verify the outputs that cannot be fully confirmed by ordinary inspection. Heat treatment, plating, anodizing, painting, passivation, welding, adhesive bonding, and cleaning may require supplier certificates, parameter records, test results, or validated subcontractor evidence. The buyer should specify whether a certificate is required for every lot, each shipment, or only upon request.
At final inspection and release, confirm quantity, identification, required dimensions, appearance, packaging, and documentation. Release authority should be explicit. A shipment should not be released merely because the production quantity is complete; it should be released against an objective record showing that the defined requirements were addressed.
Match Methods to the Feature

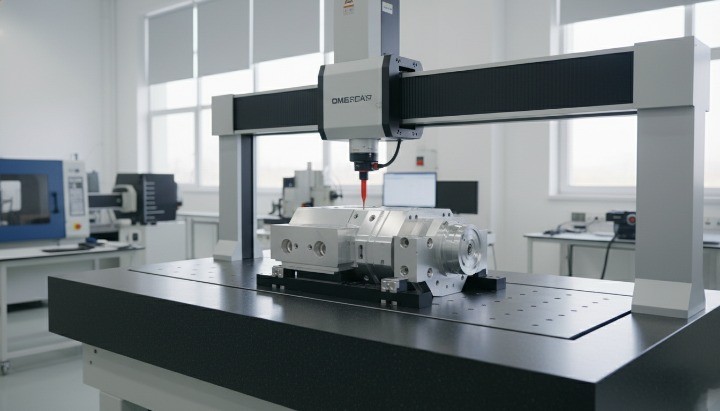

Inspection method selection is a technical decision, not a paperwork preference. A caliper may be suitable for a broad, nonfunctional outside dimension but unsuitable for a tight bore, a location relative to a datum, or a thin wall that can deform under contact force. Thread gauges, plug gauges, ring gauges, height gauges, optical systems, coordinate measuring machines, surface-finish instruments, hardness testers, and functional fixtures each answer different questions.
The plan should identify the measurement principle and relevant conditions. State the datum reference, measurement location, part orientation, temperature or conditioning requirements when relevant, and whether the result is variable data or an attribute decision. For a flatness or profile requirement, explain how the feature will be established and evaluated rather than simply writing “inspect per drawing.”
Measurement equipment must be suitable for the tolerance and geometry. Calibration status alone does not prove suitability. A calibrated instrument can still be the wrong instrument, used with an inappropriate fixture, contact force, resolution, or measurement strategy. The supplier should control equipment identification and prevent use after its calibration or verification status has expired.
When measurement results are disputed, both parties should compare the method before comparing numbers. Differences can arise from datums, fixturing, software settings, edge condition, burrs, temperature, or filtering. A shared measurement method for high-risk features prevents many avoidable disputes at receiving inspection.
Records, Traceability, and Data Integrity
Records should be designed for decisions. A useful dimensional report identifies the part or lot, drawing revision, characteristic number, nominal value, limits, actual result, equipment identification where appropriate, inspector, date, and disposition. A report that only says “passed” may be acceptable for a low-risk visual attribute, but it provides weak evidence for a critical measured feature.
Define the minimum record package in the purchase specification or quality agreement. Possible records include material certificates, first-article or first-piece reports, dimensional layouts, special-process certificates, functional-test results, nonconformance reports, deviation approvals, final release records, and packing or traceability data. Clarify whether original data must be supplied, retained by the supplier, or both.
Traceability should be neither excessive nor vague. Decide what the lot means: a furnace batch, coil, heat, production shift, setup, work order, or shipment quantity. If a defect is found, the lot definition must allow the buyer and supplier to identify potentially affected parts without automatically placing unrelated production on hold.
Electronic records require the same discipline as paper records. Use controlled revisions, access permissions, identifiable approvals, and protection against unexplained overwriting. If a result is corrected, the original entry and reason for correction should remain visible according to the organization’s record-control practice.
Supplier Alignment Before Production
The plan should be reviewed during RFQ or pre-production, not after the first nonconformance. Ask the supplier to identify outsourced operations, proposed inspection equipment, material sources where relevant, tooling assumptions, and any drawing interpretation that could affect cost, lead time, or conformity. The supplier should also confirm that its process can access the required datums and inspect features in the specified condition.
A pre-production review is an opportunity to separate requirements from preferences. The OEM may require a particular material, finish, cleanliness condition, or traceability level, while the supplier may propose an equivalent process route. Any alternative must be evaluated against function and formally approved before use. “Equivalent” should not be accepted as an informal substitution when chemistry, hardness, coating performance, weldability, or corrosion behavior could change.
Use characteristic numbering consistently across the drawing, quality plan, inspection report, and nonconformance record. This simple linkage allows a buyer to move from an issue to the requirement, from the requirement to the control point, and from the control point to the evidence.
RFQ and Pre-Production Checklist
- Provide the latest drawing, model, specifications, approved finish references, packaging requirements, and revision history.
- Identify critical, key functional, appearance, regulatory, and traceability characteristics.
- State required first-piece, first-article, sample, or approval submissions and their timing.
- Ask the supplier to list subcontracted heat treatment, coating, testing, welding, or other special processes.
- Confirm inspection methods for datums, threads, profiles, surface finish, hardness, and functional features.
- Define lot size, sampling logic, record content, retention expectations, and shipment-release requirements.
- Establish the nonconformance, deviation, rework, and concession-approval process before production.
- Require notification and written approval for material, tooling, process, site, subcontractor, or software changes that could affect conformity.
- Agree on packaging and identification controls that prevent damage, mixing, corrosion, or loss of traceability.
Common Failure Modes and Trade-Offs
One common failure is a plan copied from a generic template. It may contain impressive headings but omit the actual risk of the part, such as distortion after welding, burr direction, coating on masked areas, or a datum that cannot be reproduced in inspection. A shorter part-specific plan is usually more useful than a long document full of irrelevant controls.
Another failure is relying on 100 percent final inspection for a process that can drift rapidly. This may detect defects but still create sorting, schedule, and escape risks. In-process controls, setup verification, and reaction rules are generally more effective when the failure mechanism is understood.
Over-inspection is also a real trade-off. Requiring full dimensional reports for every feature and every lot can increase handling and measurement time without improving control of low-risk characteristics. It may also encourage rushed or copied data. Use 100 percent checks for characteristics where every part must conform or where an effective attribute gauge exists; use rational sampling or periodic checks for stable, lower-consequence features.
The opposite problem is vague sampling. “Inspect as necessary” leaves the supplier and buyer with different expectations. The plan should state the quantity or rule, when sampling starts, what happens after a failure, and whether a failed sample triggers expanded inspection, containment, process correction, or lot rejection.
Finally, many plans lack a reaction plan. An out-of-specification result is not resolved by recording it. The plan should define segregation, identification, review of potentially affected parts, root-cause investigation, rework or scrap authorization, and conditions for restart. A deviation should be approved by the designated technical authority before shipment; it should not be silently converted into an accepted condition.
Managing Changes and Continuous Review
Quality planning continues after approval. Changes to material source, machine, tooling, software, fixture, subcontractor, process sequence, inspection method, or production location can alter results even when the drawing is unchanged. The supplier should notify the OEM according to an agreed change-control process, with evidence scaled to the risk of the change.
Review the plan after significant nonconformances, recurring variation, engineering changes, field complaints, or introduction of a new supplier. The review should ask whether the control point was correctly chosen, whether the method was capable of detecting the failure, whether the reaction was timely, and whether the record supported a clear disposition. A quality plan is effective when lessons become controlled improvements rather than undocumented tribal knowledge.
Conclusion
Developing a quality plan for OEM metal parts is an exercise in translating design intent into observable, repeatable control. Start with the current product definition, map the real process route, classify characteristics by consequence, and assign practical methods at the points where variation can be prevented or detected. Then align records, traceability, release authority, change control, and nonconformance reactions with the supplier before production begins.
The goal is not to create the largest inspection package. It is to create a shared operating standard that protects fit, function, appearance, reliability, and delivery decisions. When the plan is specific to the part and proportionate to risk, the OEM gains clearer evidence, the supplier gains clearer expectations, and both organizations can address variation before it becomes a shipment or assembly problem.
