Executive Summary
Welding is not one capability but a family of joining methods. For OEM fabrication, the correct process depends on material, thickness, joint geometry, access, production volume, appearance, load path, and inspection needs. MIG is often the practical choice for productive fabrication in steel, stainless steel, and aluminum. TIG provides deliberate control and a clean bead when thin material, root quality, or appearance matters. Resistance spot welding efficiently joins overlapping sheet, while projection welding concentrates current and force at designed embossments, nuts, studs, or several contact points.
A sourcing decision should begin with the joint, not a preferred machine. The OEM should define base metals, thickness range, service loads, cosmetic zones, accessibility, annual volume, and evidence required for acceptance. Drawings should distinguish weld symbols, functional dimensions, visual expectations, and inspection points. Early supplier discussion can reveal whether a joint should be welded, redesigned for access, changed to resistance welding, or replaced by a formed or mechanical feature.
Start With the Joint and Production Context
The same two components may be weldable by several methods, but they will not have the same cost, cycle time, finish, or risk. A long fillet joining a bracket to a frame favors a process with useful deposition rate and flexible torch access. A thin enclosure with visible seams may favor controlled TIG, pulsed MIG, or a joint that hides the weld. Two overlapping panels with repeated attachments may be better suited to spot welding than to many individual arc welds.
Joint design must reflect the load path. Designers should avoid abrupt stiffness changes, provide sensible edge distance, and keep welds out of bend radii unless access and distortion have been proven. Enclosed structures need drainage and venting to prevent trapped liquid, corrosion, or hazardous vapor.
MIG Welding: Productive and Adaptable Arc Joining
Metal inert gas welding, commonly called MIG or gas metal arc welding, feeds a continuous wire electrode through a torch while shielding the arc with gas. The wire is both electrode and filler. Short-circuit, globular, spray, and pulsed transfer modes alter penetration, spatter, heat input, and usable positions.

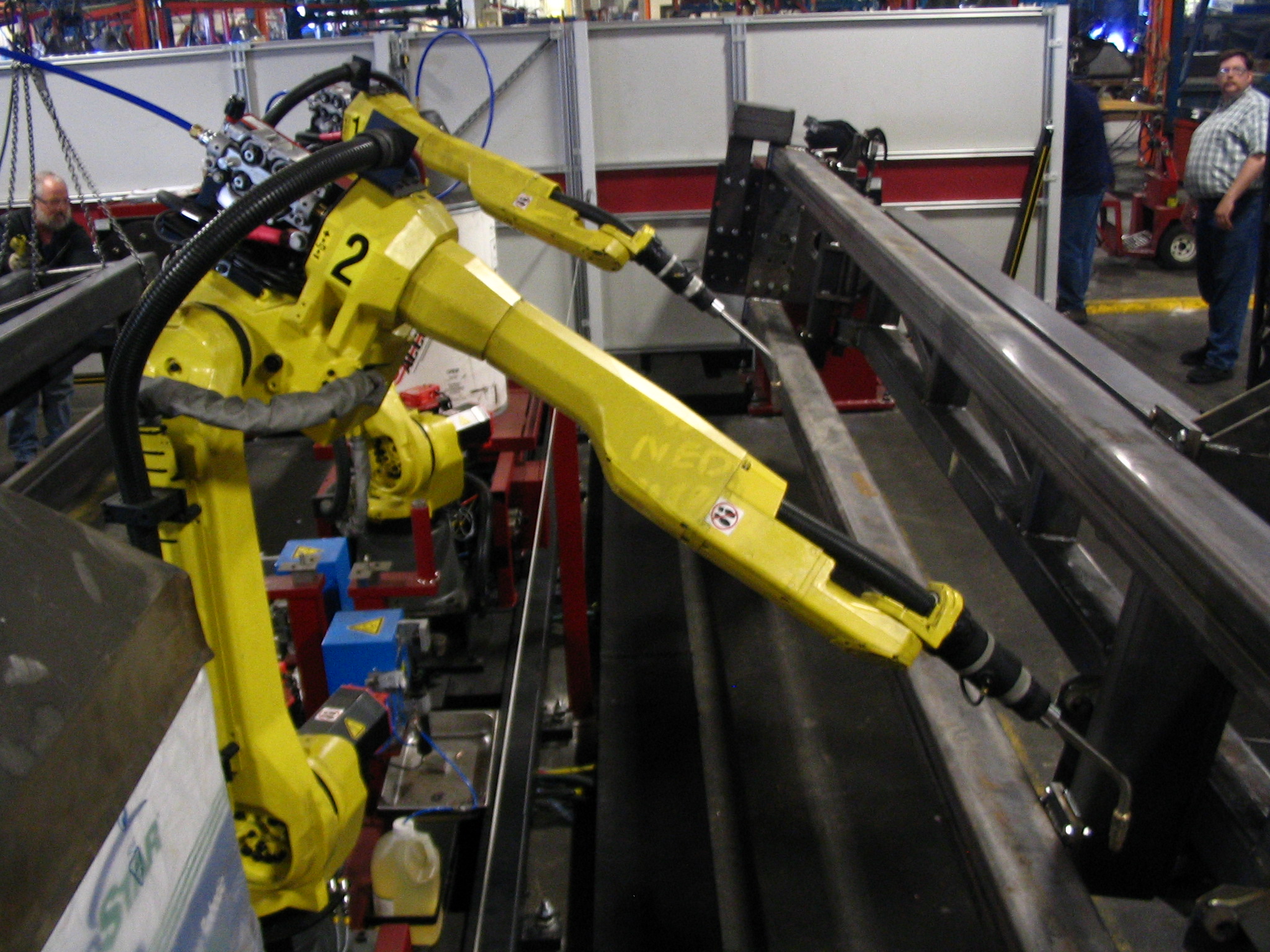

MIG attracts OEM buyers because it combines speed with broad applicability. It can join carbon steel, stainless steel, and aluminum when wire, gas, polarity, contact-tip arrangement, and parameters are suitable. Robotic MIG can provide repeatable travel and programming when joint access is good and part variation is controlled.
MIG is sensitive to fit-up, stick-out, shielding, and wire-feed stability. Large gaps can cause burn-through or an unnecessarily large weld. Poor gas coverage creates porosity, while contamination or incorrect polarity can cause instability and lack of fusion. The specification should state functional requirements and acceptable profile rather than assuming speed produces an economical weld.
TIG Welding: Control for Precision and Appearance
Tungsten inert gas welding, or gas tungsten arc welding, uses a nonconsumable tungsten electrode and a separate filler rod when filler is needed. The operator controls arc initiation, travel, filler addition, and often current with hand or foot control. Shielding gas protects the molten pool and tungsten from atmospheric contamination.
TIG is useful where bead appearance, root control, thin material, or contamination sensitivity is important. It can produce clean joints on stainless steel, aluminum, nickel alloys, and other conductive metals when surfaces are properly prepared. Typical applications include visible enclosures, thin-wall tubing, precision brackets, and parts where spatter or extensive cleanup would be costly.
Its main disadvantage is productivity. TIG deposits filler more slowly than wire-fed arc processes, and manual consistency depends strongly on technique and preparation. Excessive heat can discolor stainless steel, distort thin sheet, or enlarge the heat-affected zone. Insufficient heat or a poor torch angle can leave incomplete fusion. A TIG specification should state whether the weld is cosmetic, pressure-retaining, or structural. Back-purging may be needed for defined tube-root conditions, but it should be required for a clear technical reason.
Spot Welding: Efficient Overlap Joints in Sheet Metal
Resistance spot welding joins overlapping sheets by clamping them between electrodes and passing current through the stack. Resistance at the interface generates heat, creating a localized nugget that solidifies under electrode force. There is no added filler metal, and the cycle can be extremely short when electrode access is designed into the assembly.
Spot welding suits repeated lap joints in relatively thin sheet assemblies such as covers, cabinets, brackets, and vehicle-style structures. Advantages include short cycles, limited visible marking when designed correctly, and less consumable handling than arc welding. Automated equipment can monitor current, time, force, and sometimes electrical resistance, supporting process control over a run.
Access is the defining constraint. Both electrodes generally need to reach opposite sides, so a closed box or deep channel may require special tooling, a different sequence, or an arc process. Electrode caps wear and must be dressed or replaced; wear changes contact area and current density. Coatings, oil, scale, and inconsistent overlap also change resistance and nugget formation. The RFQ should define minimum spot count, pitch, edge distance, visible-side requirements, and verification expectations.
Projection Welding: Current at Designed Features
Projection welding is a resistance process in which current and force concentrate at raised projections. The projection may be formed into sheet or built into a nut, stud, tab, or other component. As it collapses, heat develops at controlled contact points and the joint forms, often at several locations in one cycle.
This method is valuable for attaching fasteners or joining components where repeatable force and current distribution matter more than a continuous arc bead. It depends on accurate projection geometry, material stack-up, electrode condition, and machine force. A damaged or poorly supported projection may collapse inconsistently or concentrate current unpredictably.
Projection welding is not merely spot welding under another name. The part must preserve the intended current path. Drawings should identify projection features, attached hardware, orientation, and limits on deformation or post-weld thread condition. For welded nuts, the assembly process must protect the thread and confirm that the fastener remains usable after welding and coating.
A Practical Process-Selection Framework
This comparison is a starting point, not a substitute for joint trials and supplier review.
| Requirement | MIG | TIG | Spot | Projection | |---|---|---|---|---| | Typical joint | Fillets, butt joints, structural attachments | Precise butt and fillet joints | Overlapping sheet laps | Sheet laps, nuts, studs, multiple points | | Filler metal | Continuous wire | Optional separate rod | None | None | | Main strength | Productivity and flexibility | Control and appearance | Fast repeatable cycles | Concentrated multi-point attachment | | Main constraint | Fit-up, shielding, spatter | Lower deposition rate and operator time | Two-sided access and electrode wear | Feature design and force/current control | | Key buyer question | Can the joint be accessed consistently? | Is control worth the cycle time? | Can electrodes reach both sides? | Can projections remain consistent? |
Assess thickness, thermal conductivity, coating condition, and access together. Thin stainless may favor TIG; a long steel frame seam may favor MIG; repeated sheet attachments may favor spot or projection welding.
Manufacturing Details That Affect Quality
Fit-up is a process input. Gaps, mismatch, burrs, and inconsistent overlap change the heat required and resulting geometry. Cut edges may be suitable, but burr removal, cleanliness, and bend accuracy still need control. Fixtures should locate functional datums without over-constraining the assembly: excessive restraint can store stress and release distortion when the part is removed.
Heat management is central. Weld sequencing, intermittent placement, balanced passes, copper backing, pulsed parameters, and controlled interpass practice can reduce distortion when appropriate. The drawing should not demand an unnecessarily large weld; oversizing increases heat, cycle time, grinding, and distortion without automatically improving performance. Conversely, a small nominal weld is unacceptable if it fails the required effective throat or continuity.
Control gas leaks and drafts, keep wire and filler clean and dry, match tungsten preparation to the process, and define resistance-electrode dressing or replacement criteria.
Common Failure Modes and Trade-Offs
**Porosity** may result from inadequate shielding, leaks, drafts, moisture, dirty surfaces, or contaminants released from coatings. Simply increasing gas flow is not a reliable fix; turbulence can draw air into the shielding envelope. **Lack of fusion** can come from low heat input, excessive travel speed, poor torch angle, bad joint preparation, or oxide that was not removed where required.
**Burn-through and distortion** usually reflect an unfavorable combination of thin material, excessive heat, large gaps, or poor sequence. Reducing current alone may create incomplete fusion. Better fit-up, pulsing, backing, or a revised joint may be more effective. **Spatter and excessive reinforcement** increase cleanup and can interfere with mating parts or coating adhesion. They may indicate unsuitable transfer mode, unstable wire feed, contamination, or parameters chosen without considering the actual joint.
Resistance welds have distinct risks. An undersized nugget, expulsion, indentation, shunting, or missed weld can weaken an assembly while leaving an apparently acceptable mark. Projection features may collapse inconsistently when stack-up varies. These risks make access, monitoring, sample testing, and traceable setup controls important elements of approval.
RFQ and Pre-Production Checklist
Before requesting quotations, provide a drawing or model that identifies materials, thicknesses, weld symbols, quantities, datums, and finish sequence. Include annual volume, launch quantity, packaging constraints, and whether the supplier must perform subassembly, cleaning, coating preparation, or final inspection.
A focused review should confirm:
- The proposed process and why it suits joint, material, volume, and access conditions.
- Weld size, length, spacing, continuity, cosmetic zones, and areas that must remain free of marks.
- Fixture datum strategy, orientation, electrode or torch access, and expected loading variation.
- Consumable or electrode controls, shielding, sequence, and distortion-management approach.
- Inspection method, sampling plan, visual criteria, and any sectioning, peel, torque, leak, or functional test agreed for validation.
- Treatment of deviations, repair welds, post-weld machining, cleaning, coating, and nonconforming parts.
Ask for a representative coupon or first-article sample when the joint is safety-relevant, appearance-critical, unusually thin, coated, or difficult to access. Approval should rely on the drawing and acceptance criteria, not a weld photograph alone.
Conclusion
MIG, TIG, spot, and projection welding solve different manufacturing problems. MIG offers flexible, productive arc joining; TIG offers control where precision and appearance justify slower deposition; spot welding efficiently joins accessible overlapping sheets; and projection welding uses designed features to create concentrated resistance joints. For international OEM sourcing, the strongest decision is not the process with the fastest headline cycle. It is the process that fits the joint, tolerates real variation, supports inspection, and integrates with forming, finishing, and assembly.
A clear RFQ, realistic weld requirements, and early manufacturability review prevent many downstream disputes. When a supplier can explain access, fixturing, heat control, electrode or consumable maintenance, and verification, the OEM has a sound basis for comparing quotations and approving production.
