Executive summary
Welded metal assemblies join two or more fabricated components into a functional product or subassembly. For an OEM, the attraction is practical: welding can combine plate, tube, sheet, machined features, brackets, and purchased hardware without requiring a single complex casting or extensive fastener inventory. It is used in equipment frames, guards, chassis, enclosures, platforms, racks, agricultural implements, material-handling structures, and many other products.
The best purchasing decision is not simply to find a shop that can make a weld bead. It is to define the assembly’s load path, interfaces, appearance, environment, and inspection needs, then select a process and supplier capable of repeating those requirements. Welded construction introduces heat, distortion, residual stress, access limitations, and joint-specific variation. These effects must be considered during design rather than corrected expensively after fabrication.
A robust specification separates three questions. First, what must the assembly do in service? Second, what features are essential for fit, strength, safety, or sealing? Third, which characteristics may be achieved by normal fabrication practice without imposing unnecessary inspection or tolerance cost? Clear answers make RFQs more comparable and allow a supplier to identify risks before production.
Start with function, not the weld symbol
The assembly drawing should communicate the product’s mechanical and operational intent. Identify mounting faces, datum features, bolt patterns, bearing seats, cable or hose routes, access openings, lifting points, and surfaces that must remain unobstructed. A welded frame may be strong enough overall yet fail as a product if a mounting hole shifts, a cover cannot be installed, or a machined interface pulls out of alignment.
Show the primary load path and distinguish structural joints from attachment welds. A structural joint transfers force between members; an attachment may only retain a shield, clip, or bracket. Treating every weld as equally critical can create unnecessary inspection and cost, while under-designating a highly loaded connection creates avoidable risk. Where calculations or testing establish a required joint size, throat, length, or penetration, state that requirement. Do not assume a larger weld is automatically better: excess weld metal increases heat input, distortion, cycle time, and sometimes stress concentration.
Material callouts should include grade or specification, thickness, and any delivery condition that affects welding. Similar-looking steels can have different chemistry, strength, coating, or weldability. Aluminum alloys and stainless grades also vary substantially in heat response and corrosion behavior. If the assembly combines dissimilar metals, address galvanic exposure, filler selection, joint design, and finishing explicitly.
Tolerances should follow the function
Welding rarely produces the same dimensional behavior as machining. Parts may be cut accurately, but fit-up gaps, tack sequence, thermal contraction, fixture compliance, and weld distribution influence the final condition. Apply tight tolerances only to features that affect assembly, motion, sealing, safety, or downstream machining. Define datums and inspection points in a way that a supplier can measure with ordinary, suitable equipment.
A useful strategy is to divide dimensions into functional and informational categories. Functional dimensions control an interface or performance requirement. Reference dimensions describe intent but do not require independent acceptance. When a welded blank will be finish-machined, provide machining allowance and identify which surfaces are established after welding. This can be more reliable than demanding a very tight as-welded position that the process is poorly suited to hold.
| Design question | Why the OEM should decide it early | Typical consequence if omitted | |---|---|---| | Which faces establish assembly datums? | Guides fixturing and inspection | Parts fit inconsistently despite acceptable individual dimensions | | Which joints carry primary load? | Sets weld design and inspection priority | Critical and noncritical welds receive the same treatment | | Will the assembly be machined after welding? | Allows stock and stress-control planning | Finished surfaces lack material or move during machining | | Is appearance functional or cosmetic? | Defines acceptable spatter, undercut, and grinding | Disputes arise over subjective surface expectations | | What environment applies? | Influences material, coating, drainage, and cleaning | Corrosion or trapped contamination appears in service |
Choosing a suitable fabrication route
Gas metal arc welding is widely used for carbon and low-alloy steel because it supports productive manual, semi-automatic, and robotic work. It can be suitable for varied joint lengths and medium-to-high production, but quality depends on shielding, wire selection, torch access, fit-up, and parameter control. Gas tungsten arc welding offers precise arc control and a clean appearance, often making it useful for thinner sections, stainless steel, aluminum, and visible joints. Its lower deposition rate can make it less economical for long, heavy welds.
Flux-cored arc welding can provide useful deposition and penetration in steel fabrication, particularly where joint access or outdoor work makes shielding management important, although the selected wire and shielding arrangement must match the application. Shielded metal arc welding remains flexible for repair, maintenance, and difficult access, but it is more dependent on operator technique and electrode handling. Resistance welding is effective for overlapping sheet-metal parts at repeatable production volumes, provided the joint geometry, electrode access, and material stack are appropriate.
The process choice should therefore be evaluated against thickness, alloy, position, access, production quantity, appearance, and inspection method. A supplier may recommend a process different from the one shown on an early concept drawing. That is acceptable when the change preserves the specified performance and is approved through document control. What matters is a controlled manufacturing route, not attachment to a process name.
Design details that improve manufacturability
Joint access is one of the most frequent sources of hidden risk. The torch, electrode, or gun needs a practical approach angle, a suitable extension, and room for the operator or robot to see and maintain the joint. Deep pockets, narrow slots, and boxed corners can make a nominally simple weld difficult to execute consistently. If access is limited, consider a different joint, an opening for the tool, a sequence change, or a design that permits welding before final enclosure.
Avoid unnecessary weld intersections and abrupt changes in section. They concentrate heat and can make distortion difficult to predict. Symmetrical weld placement often helps balance shrinkage. Intermittent welds can reduce heat and weight where the design permits them, but they must not compromise sealing, fatigue resistance, stiffness, or contamination control. In a corrosive environment, intermittent welds can create crevices that collect moisture; drainage and coating coverage may matter more than a small material saving.
Corners, inside radii, and edges deserve special attention. Sharp edges are difficult to coat uniformly and can encourage handling damage. A joint that ends at a corner may create a crater or an abrupt stress transition; extending, returning, or otherwise detailing the weld termination may be appropriate depending on the design. These decisions should be made by the responsible design authority, with manufacturing feedback, rather than copied indiscriminately across every joint.

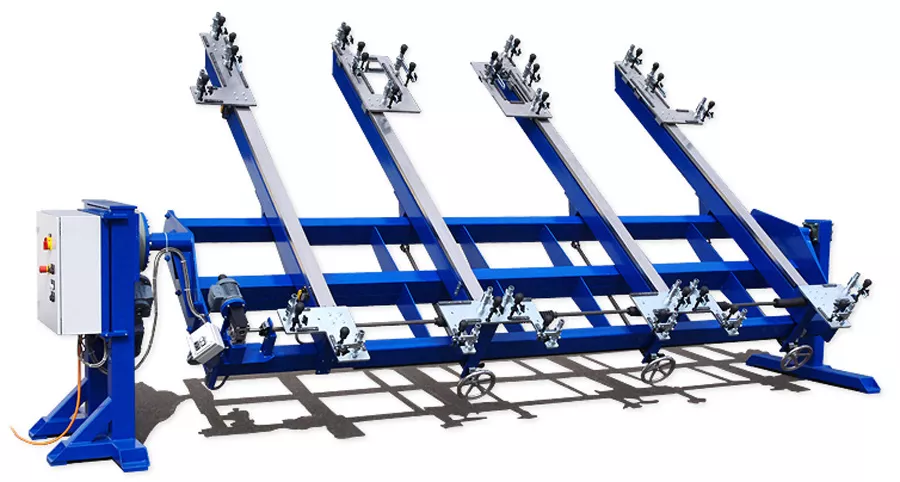

For sheet and tube assemblies, control gaps and mismatch through sensible cut features, bend allowances, tabs, slots, and locating surfaces. Self-locating features can reduce setup time, but they should not lock the fabricator into an impossible sequence. A fixture must locate the parts without preventing shrinkage from occurring in a controlled direction. Over-constraining a hot assembly may transfer stress into the part or fixture instead of producing a stable result.
Managing heat, distortion, and sequence
Welding melts a localized region and creates a thermal cycle around it. As the weld cools, the heated material contracts. The resulting movement depends on joint design, restraint, thickness, weld size, sequence, material, and the distribution of heat. Distortion may appear as angular change, bowing, twist, hole movement, or loss of flatness. It is not automatically evidence of poor workmanship, but it becomes a defect when it exceeds functional requirements.
A production plan should define fit-up checks, tack strategy, weld sequence, interpass controls where applicable, and the point at which critical dimensions are inspected. Balanced sequencing can offset movement from one side with movement from another. Temporary strongbacks, clamps, and fixtures can help, but excessive restraint can increase residual stress or make release unpredictable. Heat straightening or mechanical correction may be possible for some designs; it should be controlled and approved because it can affect coating, surface condition, and dimensional stability.
Preheating, controlled interpass temperature, and post-weld treatment may be required by material, thickness, joint restraint, service loading, or governing specification. These are not universal defaults. The OEM should identify the applicable engineering basis and ask the supplier to document how it will be met. For assemblies exposed to cyclic loading, fatigue-sensitive details, weld transitions, and surface discontinuities deserve particular engineering attention; static strength alone does not describe every service risk.
Quality planning and inspection
Quality requirements should be proportional to risk. Visual inspection is important for profile, continuity where specified, surface discontinuities, arc strikes, spatter, undercut, overlap, visible cracks, and general workmanship. It cannot verify every internal condition or establish that a joint carries a calculated load. Additional methods may include dimensional inspection, leak testing, dye penetrant, magnetic-particle testing, ultrasonic examination, radiographic examination, or destructive procedure qualification, depending on material, geometry, accessibility, and the consequence of failure.
Specify acceptance criteria and sampling before production. “High quality welds” is not an auditable requirement. A drawing or purchase specification should identify the governing code or internal standard where one applies, weld identification, required records, inspection extent, and treatment of nonconformance. If no external standard governs the product, define the practical visual and dimensional limits that matter to function and appearance.
A first-article or pre-production review is an opportunity to examine more than the finished bead. Review the cut parts, fit-up, fixture repeatability, weld sequence, distortion, machined interfaces, coating coverage, markings, packaging, and inspection records. If the part is safety-critical or unusually constrained, a controlled sample can reveal whether the design is robust before volume tooling or release.
Common failure modes and trade-offs
**Porosity** can result from contamination, inadequate shielding, moisture, poor gas coverage, or incorrect settings. It may be superficial or internal, and its significance depends on location and loading. Clean joint surfaces, protected shielding, and suitable parameter control reduce risk.
**Lack of fusion or penetration** may arise from low heat input, excessive travel speed, an unfavorable angle, poor access, or an unsuitable joint preparation. Increasing weld size without correcting access or preparation may not solve the underlying problem.
**Undercut, overlap, and excessive convexity** affect profile and may create local stress concentrations, interfere with fit, or require grinding. Grinding can improve a surface but can also remove useful section or conceal a discontinuity, so it should not substitute for process control.
**Distortion and hole shift** are usually managed through design, sequence, fixturing, and allowance planning. Adding a final drilling or machining operation may improve interface accuracy, but it adds handling, lead time, and cost. The right choice depends on the required assembly capability.
**Corrosion at joints** can develop when surfaces are contaminated, drainage is poor, dissimilar metals are coupled, or coating edges are thin. Weld cleanup, surface preparation, sealant, coating, passivation, or another specified finish should be selected for the actual environment rather than for appearance alone.
RFQ and pre-production checklist
An RFQ should let suppliers price the same scope and identify risks without guessing. Include the latest controlled drawings, three-dimensional models when useful, material requirements, weld symbols, critical dimensions, finish, packaging, annual volume, batch size, forecast assumptions, and required delivery condition. State whether supplied components, fasteners, inserts, and purchased hardware are included or excluded.
Operationally useful questions include:
- Which joints or dimensions does the supplier consider high risk, and what design change would reduce that risk?
- What welding processes, joint preparations, fixtures, and sequence are proposed for the quantity and material mix?
- Which dimensions will be inspected before welding, after welding, and after machining or coating?
- What inspection records, material traceability, weld maps, or nonconformance reports will be supplied?
- How will the supplier protect machined faces, threads, holes, and cosmetic surfaces during fabrication and finishing?
- What assumptions affect quoted lead time, minimum batch, setup, tooling, or outside processing?
Before approving production, confirm that the supplier has resolved drawing ambiguities, material availability, weld access, fixture datum strategy, and finish compatibility. Review a representative sample against functional assembly rather than relying only on a dimensional report. Check that inspection equipment is appropriate to the tolerance and that the defined acceptance criteria are understood by both organizations.
Conclusion
Welded metal assemblies are highly adaptable, but their reliability is designed into the complete system of material, joint, access, sequence, inspection, and finish. OEM buyers can improve results by identifying functional datums and load paths, applying tolerances selectively, allowing practical tool access, and treating distortion as a design variable. A disciplined RFQ and pre-production review then converts those decisions into a repeatable manufacturing plan. The strongest supplier relationship is built on clear requirements, early technical questions, and evidence that the finished assembly will fit and perform as intended.
