Executive Summary
Springback is the dimensional change that occurs when a stamped metal part partially returns toward its original shape after forming forces are removed. It is an elastic recovery phenomenon, not a simple press-setting problem. A flange may open, a wall may tilt, a bend radius may grow, or a formed panel may twist after leaving the die. The result can be excessive variation at assembly interfaces even when the press stroke, blank, and die appear to be nominally correct.
For an international OEM buyer, springback should be treated as a design-and-process risk during sourcing rather than as a final inspection surprise. The most reliable programs connect part geometry, material condition, forming simulation, tool compensation, process controls, and measurement planning. No single correction works for every part. Overbending, restrike operations, draw-bead changes, local stiffening, material substitutions, and revised datum strategies each solve different mechanisms and introduce different trade-offs.
The practical objective is not always to eliminate springback. It is to make the recovered shape predictable, repeatable, and compatible with downstream assembly. That requires the supplier to explain how springback will be characterized, compensated, verified, and controlled when material lots or production conditions change.
What Springback Means in a Stamping Process
During stamping, the sheet experiences a combination of elastic deformation and plastic deformation. Plastic strain changes the part permanently, while elastic strain stores recoverable energy. When the punch retracts and clamping forces release, the elastic component relaxes. The surrounding plastic strain prevents complete recovery, so the part settles into a new shape that differs from the tool cavity.
The effect is easiest to visualize in a simple air-bent flange. The outer fibers of the sheet undergo tension and the inner fibers undergo compression. After unloading, those stresses rebalance and the bend angle opens, usually requiring the tool to form a slightly tighter angle than the target. In a drawn or flanged component, the stress pattern is more complex: membrane tension, bending, unbending, friction, draw-bead effects, and local contact conditions can combine to produce angle change, sidewall curl, or twist.
Springback is therefore a **stress-distribution problem**. Two parts with the same nominal thickness and bend radius can recover differently if their forming paths, restraining conditions, or local stiffness differ. A supplier that reports only the final angle, without describing the loading and unloading history, has not fully explained the risk.
Main Causes of Springback
Material strength and hardening behavior
Higher-strength steels and many advanced high-strength steels generally store more elastic energy for a given forming operation because their yield strength is higher. Their strength, anisotropy, work-hardening behavior, and thickness all influence recovery. Aluminum alloys can also show significant springback, particularly in panels and channels with large radii or limited restraining force.
The relevant material definition is more detailed than a grade name. Yield strength, tensile strength, elongation, r-value, n-value, sheet thickness, rolling direction, temper, and supplier-specific forming curves can all affect the result. If a drawing calls for a nominal grade but permits a broad strength range, the same die compensation may not perform consistently across approved mills or lots.
Geometry and bend severity
Large bend radii, shallow channels, open flanges, long unsupported walls, and asymmetric sections are commonly sensitive to recovery. Thin sheet tends to be more flexible, while long part spans can amplify small local angular changes. A part can meet a local profile requirement yet fail an assembly gauge because a small angle error accumulates over its length.
The relationship between thickness, radius, and strength matters, but geometry is not evaluated one feature at a time. A hole near a bend, a relief notch, a jog, or an abrupt change in flange width can alter local stiffness and stress flow. Symmetry often helps, while unbalanced sections encourage twist or camber.
Forming path, friction, and restraint
Springback depends on how the material was loaded, unloaded, and reloaded. Blank-holder force, draw beads, punch and die radii, lubrication, press speed, and tool alignment change material flow and the through-thickness stress gradient. A process that allows too much material movement may create a different residual-stress pattern from one that restrains the blank more aggressively.
Friction is particularly important because it affects whether material feeds smoothly or locks against a tool surface. A change in lubricant, surface finish, or contact pressure can shift the forming balance. This is why a tool correction validated under one shop-floor condition may not transfer automatically to another production line.
Tool and press variation
Die wear, polishing, shimming, guide-post condition, press deflection, cushion response, and slide parallelism can affect recovered geometry. Progressive dies add another dimension: small changes in strip progression, carrier design, station timing, or partial forming can influence the final stress state. Transfer presses and robotic handling can also allow a part to relax or distort between operations.
These influences do not mean that springback is uncontrolled. They mean that a robust control plan must distinguish a systematic geometric bias from ordinary process variation and from handling damage.
How Engineers Predict Springback
Analytical estimates for early design
Simple bend calculations and section-property reasoning are useful during concept development. They help identify whether a flange is likely to open, whether a wall lacks stiffness, or whether a requested radius is unusually demanding. Such estimates are directional rather than release-level predictions because real stampings include contact, friction, anisotropy, sequential operations, and complex boundary conditions.
At this stage, OEM teams should use the estimate to improve the part before the die is designed. Adding a bead, increasing local section depth, balancing flanges, moving a hole away from a bend, or selecting a more stable datum can reduce sensitivity without adding a corrective operation later.
Finite element forming simulation
Production-intent forming simulation can model material flow through draw, bend, flange, restrike, and unloading steps. A useful study includes the proposed material model, thickness, rolling direction assumptions, tool radii, blank-holder conditions, friction assumptions, and the actual operation sequence. The springback result should be reviewed as a deviation map and as functional measurements, not only as a visually scaled color plot.
Simulation quality depends on input quality. Generic material cards may be acceptable for screening alternatives, but they should not be treated as a guarantee for a tight assembly interface. For critical parts, the supplier and buyer should agree on which material data will be used, how sensitivity to strength variation will be evaluated, and what physical correlation will occur after tryout.
Physical tryout and correlation
Tool tryout remains essential because real material, press behavior, lubrication, and measurement conditions expose effects that simplified models may miss. The correct engineering loop is predictive rather than reactive: simulate, form a representative trial, measure, compare, identify the dominant mechanism, update the model or die, and verify again.

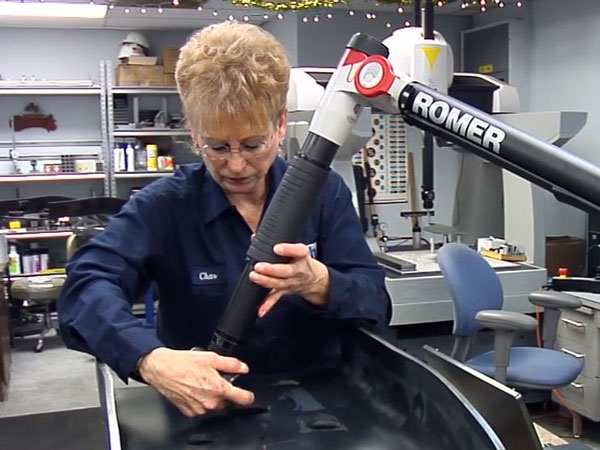

Correlation should focus on repeatable characteristics. A supplier may measure bend angles, profile sections, hole-to-datum locations, flange heights, and assembly-gauge conditions. Measurements should record part temperature, unloading time, support method, and fixture definition when those factors influence relaxation or distortion.
Design Compensation Strategies
Overbend and local die compensation
The most direct method is to form the feature beyond the desired nominal angle so elastic recovery brings it back into specification. This is effective for relatively simple bends and predictable recovery. It becomes less straightforward when adjacent features interact, when the bend is not uniform along its length, or when the part twists during unloading.
Die compensation may involve changing punch geometry, die radii, local surfaces, or forming angles. The compensated tool must preserve material clearance, avoid thinning or galling, and maintain functional surfaces. A visibly modified die is not necessarily a poorly made die; intentional compensation is normal. The important question is whether the correction is based on measured behavior and whether future maintenance can reproduce it.
Re-strike, coining, and bottoming
A restrike operation can impose a controlled final shape after the principal forming step. Coining or bottoming may reduce elastic recovery by creating additional plastic strain at a localized feature. These methods can improve angular stability, but they increase tooling complexity, press load, cycle time, and potential surface marking. Coining also requires careful review of thickness reduction and fatigue-sensitive areas.
A restrike is most valuable when the unstable feature is clearly identified and accessible in a separate station. It is not a substitute for correcting poor material flow or a fundamentally under-stiff part.
Stiffening and geometry changes
Beads, embossments, ribs, joggles, hemmed edges, and balanced flanges can increase section stiffness and reduce distortion. These changes may improve the part’s behavior through stamping, handling, coating, and assembly. However, they can affect appearance, crash performance, clearance, corrosion paths, and secondary operations. Any geometry change must therefore be reviewed against the product’s functional requirements, not judged solely by its ability to reduce a measured angle error.
Process compensation
Adjusting blank-holder force, draw-bead height, lubrication, sequence, or intermediate forming can change residual stress and material flow. Process compensation is useful when the cause is a stress imbalance rather than a single bend angle. It must be controlled tightly: a setting that reduces springback may increase splitting, wrinkling, thinning, surface marks, or press load.
The best solution is often a combination. For example, a modest geometry adjustment may reduce sensitivity, while controlled restraint and a light restrike provide final stability. The selected approach should be documented as part of the manufacturing process, not held as informal operator knowledge.
Common Failure Modes and Trade-Offs
A frequent failure mode is compensating the wrong measurement. Engineers may correct a flange angle while the assembly problem actually comes from part twist, datum movement, or hole position relative to the mating feature. Another is using a single trial part to establish compensation. One sample can reveal direction, but not lot-to-lot or cavity-to-cavity variation.
Overcompensation is also possible. A die corrected aggressively for high-strength material may produce an opposite error when a lower-strength approved lot is used. Excessive restrike can leave marks or harden a localized region. Increasing draw restraint may improve shape while raising the risk of wrinkles or cracks. A tighter tolerance can be technically achievable but may require added operations, slower production, more inspection, or restricted material sourcing.
Measurement setup creates another hidden risk. A flexible panel can show different results when measured free-state, clamped to a fixture, supported on a surface plate, or installed in an assembly. The drawing and inspection plan should define the condition that corresponds to product function. Otherwise, supplier and OEM teams can both report correct numbers from incompatible methods.
RFQ and Pre-Production Checklist
An RFQ should give the supplier enough information to assess springback before committing to tooling. At minimum, provide the 3D model, 2D drawing, material grade and strength range, thickness, rolling-direction requirements if relevant, surface requirements, assembly datums, critical interfaces, and the intended production volume and equipment concept.
Ask the supplier to identify springback-sensitive features and explain how they will be predicted. The following questions are useful during technical review:
- Which dimensions will be evaluated in free state, and which will be checked in a functional fixture?
- What material data and allowable strength range will be used for forming simulation?
- Which forming operations are planned, including draw, flange, restrike, coining, trimming, and piercing?
- How will the supplier evaluate sensitivity to material lot, lubrication, press, and temperature changes?
- What is the measurement fixture, datum scheme, scanning method, and repeatability study for critical characteristics?
- How will die compensation be recorded so that maintenance or transfer to another tool remains controlled?
- What happens if the approved material supplier, temper, or sheet thickness changes?
Before production release, confirm that the compensation strategy has been correlated with production-intent material and equipment. Review a deviation report that separates systematic bias from variation, and require agreement on the disposition path for results that are outside nominal but functional in the assembly.
Conclusion
Springback is an inherent consequence of elastic recovery in sheet-metal forming, but it does not have to become an unpredictable launch problem. Early geometry review, realistic material data, operation-specific simulation, physical correlation, and a defined measurement condition provide the foundation for control. Compensation may involve overbend, local die changes, restrike, coining, process adjustments, or added stiffness; the right choice depends on the stress pattern and the product’s functional priorities.
For OEM procurement teams, the strongest supplier proposal is not the one that promises a perfect first try. It is the one that clearly connects risk identification, prediction, tool learning, inspection, and change control. That evidence makes springback a manageable engineering variable and supports a more reliable transition from drawing to repeatable stamped production.
