Executive summary
For an OEM sheet-metal assembly, the choice between resistance spot welding and gas tungsten arc welding (TIG) is not simply a contest between “fast” and “high quality.” Each process creates a different kind of joint, requires different access and tooling, and places different demands on design, inspection, and production control. Spot welding joins overlapping sheets at discrete locations by passing electrical current through clamped workpieces. TIG welding creates a continuous fusion weld using a tungsten electrode and an inert shielding gas, with filler metal added when the joint design requires it.
Spot welding is usually the stronger candidate for high-volume assemblies made from overlapping, electrically conductive sheet. It can deliver repeatable weld schedules at high cycle rates with limited visible marking when electrodes and tooling are well designed. TIG is more adaptable for prototypes, low-volume work, visible seams, leak-resistant joints, mixed joint geometries, and materials or locations that cannot be presented to resistance-welding electrodes. It also gives the fabricator greater control over the weld pool, but that control comes with slower production, greater operator dependence, and a larger heat-affected area.
The correct sourcing decision begins with the assembly’s load path and geometry. The buyer should define whether the joint must carry shear, peel, vibration, pressure, or cosmetic requirements; how many welds are needed; whether both sides are accessible; and whether distortion or post-weld finishing is acceptable. A clear RFQ should describe the joint rather than naming a process prematurely.
How the two processes form a joint
Resistance spot welding
In spot welding, two or more sheets are overlapped and squeezed between opposing copper-alloy electrodes. The machine applies force, sends a controlled current through the stack, and maintains force while the molten interface cools into a weld nugget. The weld is localized between the sheets, so the finished joint normally consists of a series of separated nuggets rather than a continuous bead.
The process depends on a coordinated schedule: electrode force, welding current, current duration, squeeze time, hold time, and sometimes multiple pulses. Sheet thickness, electrical resistance, surface condition, coating, and stack-up all affect the required window. Galvanized steel, for example, can change electrode wear and contact behavior, while aluminum demands high current and careful control because of its conductivity and oxide layer.
A spot-welded assembly needs sufficient flange width for electrode contact and a practical pitch between weld locations. The electrodes must reach the joint without colliding with adjacent walls or leaving unacceptable marks. A joint that looks easy in a flat drawing may be difficult once bend radii, stiffeners, return flanges, and access constraints are included.

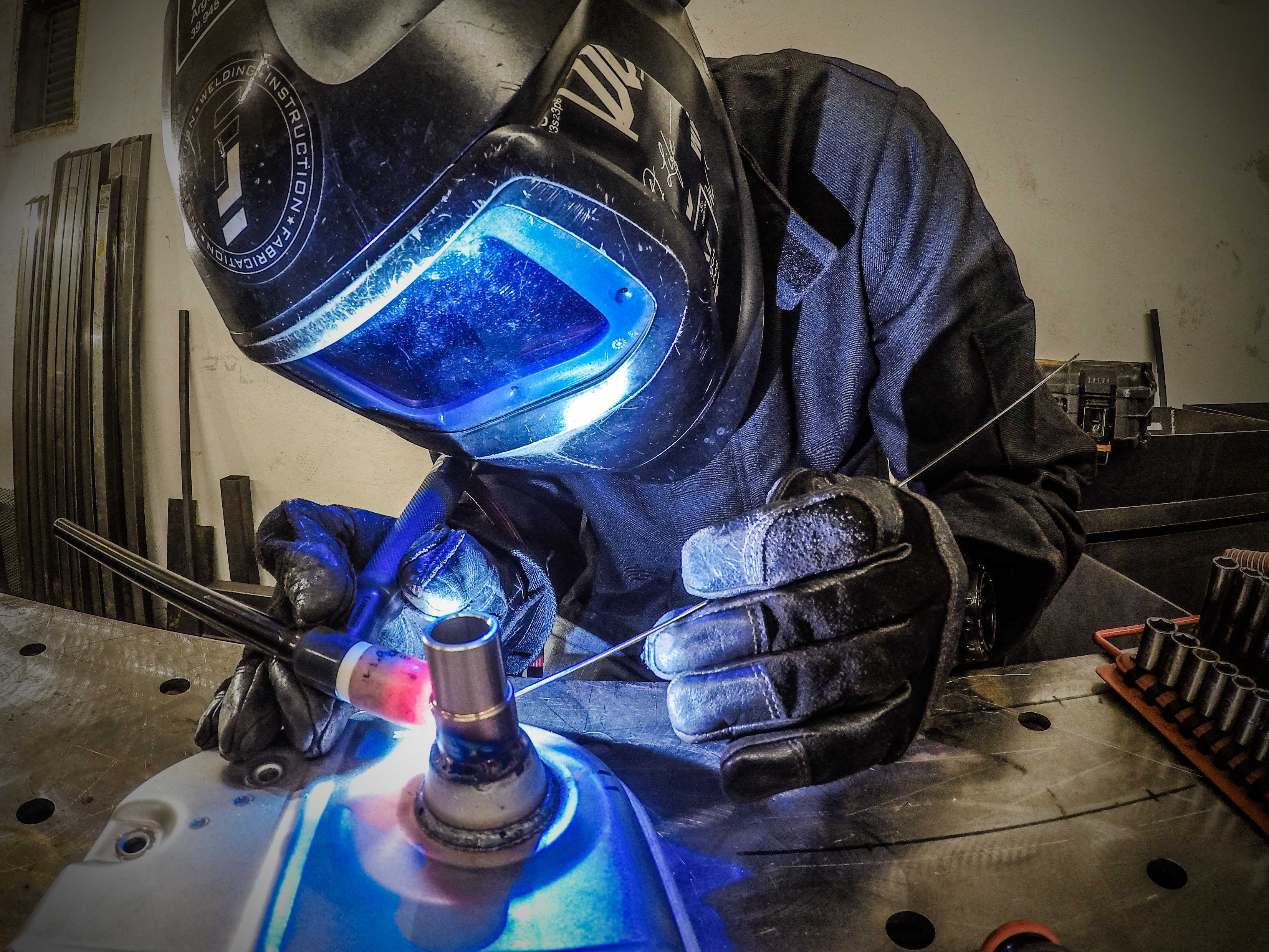

TIG welding
TIG welding uses an arc between a nonconsumable tungsten electrode and the workpiece. Argon or another specified inert shielding gas protects the electrode and weld pool from atmospheric contamination. The operator or machine controls torch position, arc length, travel speed, current, and, where required, filler-wire addition. Alternating current is commonly selected for aluminum and other materials where oxide-cleaning action is needed; direct current is widely used for steels and stainless steels, subject to the approved procedure.
TIG can produce a continuous butt, lap, corner, fillet, or edge weld. It is therefore useful when the assembly needs sealing, a defined bead profile, or load transfer along a seam rather than at isolated points. However, a continuous weld is not automatically stronger or more economical. It may add unnecessary heat, increase distortion, require more finishing, and introduce residual stress where a distributed series of spots would perform adequately.
TIG joint preparation matters. Gaps, edge mismatch, contamination, poor fit-up, and inconsistent tack spacing force the welder to compensate with heat or filler. For thin sheet, small changes in travel speed can alter penetration and burn-through risk. A buyer should therefore treat fit-up control and fixturing as part of the welding solution, not as separate workshop details.
Decision factors for an OEM assembly
The table below is a practical first screen. It is not a substitute for a production trial, because the result depends on material, thickness, stack-up, geometry, equipment, and acceptance criteria.
| Decision factor | Spot welding | TIG welding | |---|---|---| | Typical joint form | Overlap with discrete weld nuggets | Continuous butt, lap, corner, fillet, or edge seam | | Production rate | High when access and tooling are repeatable | Lower, especially for manual work | | Access | Requires electrode access to both sides or suitable robotic arrangement | Torch access is required; one-sided approach may be possible, with suitable return path | | Heat distribution | Highly localized | More sustained and distributed along the seam | | Tooling | Dedicated electrodes, fixtures, and sometimes dressing equipment | Torch, power source, gas system, fixtures, and filler control | | Appearance | Small electrode impressions or witness marks | Visible bead unless blended or otherwise finished | | Sealing | Not inherently continuous; sealants or additional welds may be needed | Continuous welding can provide a sealed seam when properly designed and executed | | Best production fit | Repetitive medium- to high-volume assemblies | Flexible low- to medium-volume or complex assemblies |
Volume and takt time
High volume favors spot welding when the part can be loaded consistently and the weld locations are accessible. Once fixtures, electrodes, and schedules are qualified, each weld can be made quickly and with limited operator manipulation. The economic benefit is greatest when the same joint pattern repeats across many parts.
TIG can still be appropriate at volume if the seam is short, the geometry is difficult for electrodes, or the product requires a continuous cosmetic or pressure boundary. Automated TIG, orbital arrangements, and mechanized fixtures can reduce operator variation, but the initial equipment and programming effort must be justified by the application.
For prototypes and frequent design changes, spot-welding hardware can become a burden if every revision moves a flange or changes the stack. TIG often provides a more flexible route while the design is being proven, although temporary hand welding should not be assumed to represent final production capability.
Material and thickness
Both processes can join common steels and stainless steels, while aluminum is feasible with process-specific equipment and controls. Spot welding is especially attractive for thin overlapping steel sheets. TIG offers broader geometric flexibility and can accommodate joints where the sheets meet edge-to-edge or where a local overlap would be undesirable.
Material combinations require careful review. Differences in melting point, electrical conductivity, thermal expansion, galvanic behavior, and surface coating can complicate either process. A coating may need to be preserved, removed locally, or accounted for in the approved procedure. The RFQ should identify base alloys, nominal thicknesses, coatings, and any restrictions on discoloration or post-weld cleaning.
Loads, fatigue, and sealing
A spot weld transfers load through individual nuggets. The design must distribute those loads across an appropriate pattern and consider peel forces, eccentricity, local sheet bending, and fatigue. Increasing the number of spots is not a universal remedy; spacing, edge distance, flange stiffness, and access also influence performance.
A TIG seam transfers load continuously along its length, but its performance depends on penetration, fusion, profile, defects, and distortion. A continuous bead may be advantageous for a fluid enclosure or dust-resistant housing, while a line of spots may be entirely suitable for a bracketed cover that is not a pressure boundary. If sealing is important, state the required leak-test method and allowable leakage rather than relying on the phrase “watertight.”
Practical design and manufacturing details
Design the flanges around the process
Spot welding needs a stable overlap and enough flat area for the electrodes. Avoid placing a weld so close to a bend, edge, emboss, or hole that the sheet cannot be clamped or that the nugget is weakened by edge effects. The designer should also reserve a path for the electrode arms or robot tooling. If access is available from only one side, ask the supplier whether a special electrode arrangement or alternate resistance process is intended; do not assume a standard spot gun can reach the joint.
TIG requires a torch path, a reliable work return, and room for the operator or robot to maintain a consistent angle and arc length. Add generous, controlled bend relief where the seam approaches a corner, and avoid hidden start-stop locations unless they are deliberately specified. Consistent fit-up is particularly important for thin sheet because an irregular gap changes penetration and filler demand.
Control heat and distortion
Spot welding limits heat to small regions, but excessive current or duration can expel molten metal, enlarge the nugget unpredictably, or damage coatings. Insufficient energy can produce a weak or undersized nugget that looks acceptable externally. Electrode caps must remain clean, aligned, and properly dressed, and the machine should record or control the applicable schedule variables.
TIG distortion is managed through joint fit-up, tack sequence, balanced welding, controlled heat input, backing or heat sinks where suitable, and a fixture that locates without over-constraining the part. Excessive restraint can move distortion into another area or lock in residual stress. A supplier should explain how the assembly will be supported during welding and what straightening or cosmetic finishing is permitted.
Plan inspection around what is hidden
Visual inspection is useful for TIG bead continuity, undercut, overlap, crater formation, discoloration, and burn-through, but it cannot establish all internal conditions. Spot welds are even less visually transparent: electrode marks do not prove nugget size or fusion. Production controls may include destructive peel or chisel checks, scheduled parameter verification, coupon testing, resistance monitoring, or other agreed methods.
The inspection plan should distinguish process verification from part acceptance. A destructive check on representative samples may confirm a qualified schedule, while dimensional inspection confirms that welding has not pulled the assembly out of tolerance. For safety- or fatigue-critical joints, the engineering team should define the applicable weld standard, test method, sampling plan, and disposition of nonconforming parts before production begins. ISO 5817 and AWS welding guidance are examples of standards families that may inform acceptance, but the contract should name the governing requirement rather than leave it ambiguous [1] [2].
Common failure modes and trade-offs
Spot welding commonly fails through inadequate fusion, excessive expulsion, electrode wear, shunting through nearby welds, poor alignment, or variation in the sheet stack. Contaminated surfaces and inconsistent coatings can narrow the process window. A joint may also be structurally weak because the design relies on too few spots or places them where the flange flexes.
TIG failures include lack of fusion, incomplete penetration, porosity, tungsten inclusion, crater cracking, undercut, burn-through, and oxidation caused by inadequate shielding or poor gas coverage. Manual TIG adds variation in travel speed and filler placement. Excessive cleaning or blending can remove useful weld reinforcement or make the surface inconsistent, while insufficient cleaning can leave a visible or corrosion-prone residue on stainless assemblies.
There are also commercial trade-offs. Spot welding may require dedicated fixtures, electrode maintenance, and a well-defined weld map, but it can reduce touch labor at repeatable volumes. TIG may avoid specialized electrode tooling and handle engineering changes more gracefully, yet it can consume more labor and post-weld finishing time. Comparing only the quoted weld-minute rate misses fixture design, inspection, rework, coating repair, and the cost of rejected assemblies.
RFQ and pre-production checklist
A strong RFQ gives suppliers enough information to recommend or validate the process without guessing. Include:
- Base materials, thicknesses, temper or grade, surface coatings, and cleaning restrictions.
- A drawing or 3D model showing joint stack-up, weld locations, flange widths, access limits, and cosmetic surfaces.
- Functional loads, fatigue or vibration conditions, sealing requirements, and service environment.
- Required weld symbols, governing standards, acceptance classes, inspection methods, and sample requirements.
- Dimensional tolerances before and after welding, along with allowed distortion and straightening methods.
- Expected annual volume, batch size, launch timing, engineering-change frequency, and packaging constraints.
- Whether marks, discoloration, grinding, brushing, passivation, painting, or other finishing operations are allowed.
Before release to production, request a manufacturability review and representative welded samples. Confirm that the proposed electrode or torch can reach every location, that the fixture references the correct datums, and that the weld sequence protects critical dimensions. For spot welding, review the weld schedule, cap maintenance, shunting risk, and destructive-test plan. For TIG, review fit-up limits, filler classification, shielding arrangement, start-stop treatment, distortion control, and any required cleaning or leak test.
The pre-production review should also resolve terminology. “Spot welded” may mean a specific resistance-weld pattern, while “TIG welded” may describe only the arc process and not the required bead size or penetration. Define the actual acceptance condition in drawings and purchase documents. If the design permits either process, ask suppliers to quote the recommended process and an alternate, with separate assumptions for tooling, inspection, finishing, and qualification.
A practical selection rule
Choose spot welding when the assembly uses repeatable overlapping sheets, both-sided electrode access is available, the joint does not need to be continuously sealed, and production volume justifies dedicated tooling. Choose TIG when the joint geometry is varied, a continuous seam or controlled appearance is necessary, access favors a torch, or the product is in prototype or lower-volume development.
When the answer is unclear, run a focused trial rather than a broad trial-and-error exercise. Produce samples using the actual material, thickness stack, coating, fixture concept, and intended joint pattern. Measure dimensions, inspect the surfaces, and test the joint according to its service requirement. The objective is not to select the process with the most impressive weld bead; it is to select the process that repeatedly delivers the required function at an acceptable total manufacturing risk.
Conclusion
Spot welding and TIG welding are complementary manufacturing methods. Spot welding excels at discrete, repeatable joints in overlapping sheet assemblies and can support efficient production when access and tooling are designed in from the beginning. TIG welding excels at flexible geometry, continuous seams, sealing, and controlled visible welds, but demands tighter attention to heat, fit-up, shielding, and operator or automation consistency.
For international OEM sourcing, the best decision is made by connecting the weld process to the assembly’s load path, access, volume, material, inspection method, and lifecycle requirements. A precise RFQ, representative pre-production trial, and explicit acceptance plan will usually prevent more problems than choosing a process name based on habit or appearance.
References
[1]: https://www.iso.org/standard/349ಂತ.html "ISO 5817, Welding — Fusion-welded joints in steel, nickel, titanium and their alloys" [2]: https://www.aws.org/standards "American Welding Society standards"
