Executive summary
Roll forming is a continuous bending process for converting coiled sheet or strip into a finished profile with a constant cross-section. A coil travels through successive pairs of rotating rolls, and each stand makes a controlled incremental change until the target geometry is reached. The process is especially attractive for OEM parts that are long, repeatable, and produced in substantial quantities: rails, channels, framing members, guards, tracks, cable-management sections, structural trim, and enclosure components are common examples.
For a buyer, the central question is not simply whether a profile can be roll formed. It is whether the complete product definition, material condition, volume, tolerances, joining method, surface requirements, and downstream operations fit a stable continuous process. Roll forming can reduce material handling and produce excellent repeatability, yet it also makes design changes expensive after tooling is released. A sound sourcing decision therefore connects part design with coil procurement, tooling strategy, line capability, inspection, packaging, and total landed cost.
This guide explains the process and the practical decisions an international OEM team should make before requesting production samples or approving a supplier’s tooling proposal.
How the roll-forming process works
From coil to cut length
The line normally begins with a decoiler that supports the incoming coil and feeds strip into the process. Depending on the application, a straightener or leveler removes coil set, while an entry guide centers the strip and controls lateral movement. Some lines include a servo feeder, pre-punching unit, welding station for coil-to-coil joining, or accumulation system so that the forming section can operate continuously.

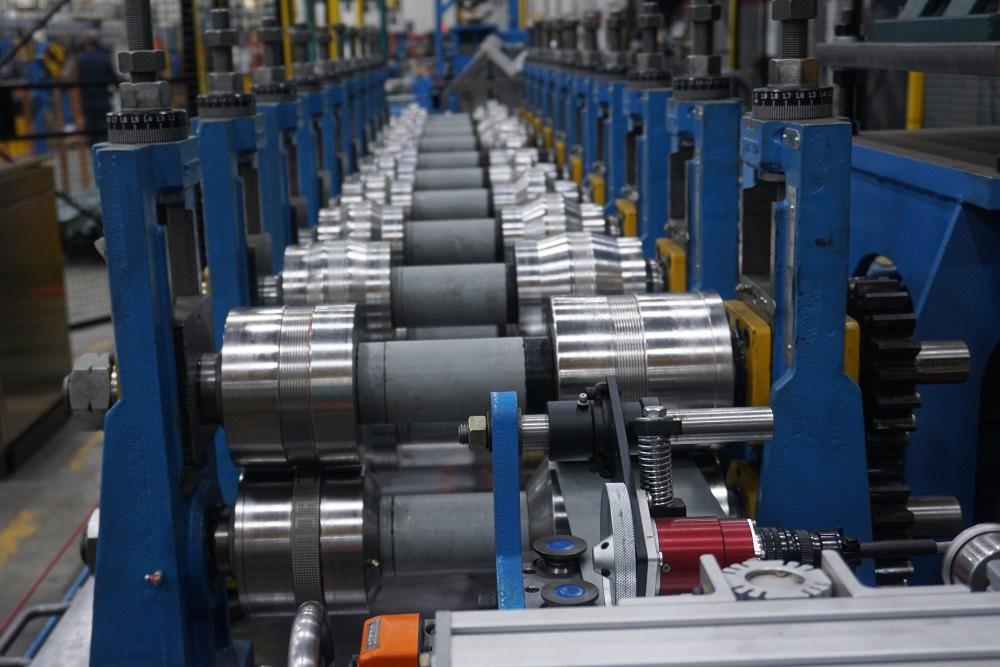

The forming mill contains multiple roll stands. Each stand has upper and lower tooling, and sometimes side rolls, that contact the strip at selected locations. The profile is formed gradually rather than bent to its final shape in one operation. This staged approach limits sudden deformation, helps control edge behavior, and allows complex open sections to be produced without a large press brake sequence. After the final stand, a cutoff machine separates parts to the specified length. The line may then include end-forming, hole punching, swaging, notching, deburring, or automated stacking.
The order of operations matters. Holes and slots can be punched before forming when access is easier, during forming with dedicated tooling, or after forming when their location depends on the final profile. The supplier should explain this sequence because it affects feature accuracy, tool complexity, scrap risk, and the ability to accommodate future design changes.
Why incremental forming affects design
As the strip bends, the material’s outer fibers extend and its inner fibers compress. Springback then causes the section to relax slightly when it leaves a roll. The amount depends on material strength, thickness, bend radius, work hardening, grain direction, and the geometry of neighboring elements. A competent process design accounts for these effects through roll layout, compensation, calibration passes, and controlled setup rather than relying on a single nominal bend angle.
The strip also moves through the line while being supported and guided. Poorly balanced forming can create twist, bow, flare, camber, edge wave, or uneven leg lengths. These defects may be subtle at the mill exit but become serious during assembly, especially when several long profiles must align with brackets, fasteners, glazing, seals, or mating extrusions.
When roll forming is a good fit for OEM parts
Roll forming is generally strongest when the part has a uniform cross-section over its length and the design can justify dedicated tooling. It is often more efficient than repeated press-brake operations for long parts because material advances continuously and the forming sequence is repeatable. Integrated punching and cutting can also reduce secondary handling.
The process may be less suitable when quantities are small, the cross-section changes frequently, or the part has many isolated three-dimensional features. A short prototype with several bends may be economical in a press brake, laser, or stamping process even if the eventual production part will be roll formed. A hybrid route is also possible: a continuous profile can be formed first, then cut and subjected to secondary forming or machining at its ends.
| Buyer consideration | Why it matters in process selection | |---|---| | Constant cross-section | Determines whether continuous tooling can form the part efficiently | | Annual volume and release pattern | Spreads tooling cost and influences line scheduling | | Material thickness and strength | Affects forming load, springback, roll design, and surface risk | | Feature location | Determines whether punching occurs before, during, or after forming | | Required length | Influences cutoff accuracy, straightness, handling, and packaging | | Surface condition | Determines protective film, lubrication, roll finish, and inspection needs |
A buyer should compare not only piece price but also tooling amortization, coil minimums, setup scrap, freight utilization, secondary operations, inspection effort, and the cost of assembly problems caused by unstable geometry.
Material and surface decisions
Common roll-forming materials include carbon steel, galvanized or coated steel, stainless steel, and aluminum alloys. Each material family brings different behavior. Higher-strength grades can reduce section weight but usually increase springback and forming demand. Coated material can provide corrosion protection, but aggressive contact, trapped debris, or unsuitable lubrication may damage the coating. Stainless steel may require careful surface control because visible scratches and galling are difficult to accept on exposed parts. Aluminum is relatively light and formable, but its surface can mark and its alloy and temper strongly influence bend performance.
The RFQ should identify the material standard, grade or alloy, thickness range, coating or finish, and whether substitutions require written approval. Nominal thickness alone is not enough when mating dimensions are tight. Actual incoming variation can influence the final opening width, leg position, and fit. If the part will be welded, painted, bonded, or exposed outdoors, the production route should be evaluated together with the downstream finish rather than in isolation.
Lubrication is another practical consideration. It can reduce friction and surface damage, but residue may interfere with welding, adhesive bonding, painting, or clean-room requirements. The supplier should state whether lubricant is used, how it is removed or controlled, and whether protective film remains on the material through forming and cutting.
Design considerations before tooling release
Cross-section geometry
Designers should provide adequate bend radii for the chosen material and thickness instead of specifying an unnecessarily sharp corner. A tight radius can increase cracking, coating damage, tool wear, and dimensional variation. The correct radius is application-dependent, so the supplier should review it against material data and the required visible surface.
Avoid narrow, unsupported lips or abrupt transitions that cannot be reached reliably by rolls. Long unsupported flats may oil-can or vibrate, while highly asymmetric sections can encourage twist. Symmetry is not mandatory, but an unbalanced section deserves a forming simulation, trial review, or explicit measurement plan. Features that are not functional should not be held to unnecessarily tight tolerances; looser noncritical requirements can reduce tooling complexity and inspection cost.
Holes near bends require particular care. A hole placed too close to a forming radius may distort, elongate, or shift relative to the final edge. Its permissible location depends on the forming sequence and the amount of material movement. The design team should specify true functional datums and positional relationships, not only isolated dimensions on a flat pattern.
Length, cutoff, and joining
Cut length is influenced by feed measurement, line speed, material movement, cutoff method, and burr control. If parts are joined end to end, a small length error can accumulate across an assembly. Define whether length is measured along the profile, between functional end faces, or by another datum. End squareness may matter as much as length when profiles meet at miters or fit into a fixture.
If the part will be welded, bolted, riveted, or clinched, reserve suitable flat areas and access for the joining equipment. A roll-formed shape can be structurally efficient yet difficult to weld if the joint is hidden or heat distortion is unacceptable. Similarly, a fastener hole should be located with tool access and stack-up in mind.
Quality planning and common failure modes
A robust inspection plan begins with the features that control assembly. Typical checks include material identity, thickness, profile dimensions, hole position, length, straightness, twist, burrs, coating condition, and visible surface defects. First-off approval should establish a shared measurement method, including the support condition, datum references, temperature where relevant, and whether dimensions are checked at a free state or in a fixture.
| Failure mode | Typical contributing factors | Practical response | |---|---|---| | Twist or camber | Uneven roll adjustment, asymmetric section, strip misalignment | Improve setup balance, guiding, and straightening; verify at multiple lengths | | Edge wave | Excessive edge strain or unsuitable pass progression | Review roll flower and edge forming sequence | | Flare or springback | Material strength variation, insufficient calibration, tight design | Confirm material range and add controlled compensation or calibration | | Scratches or coating damage | Dirty rolls, poor roll finish, excessive pressure, trapped chips | Clean tooling, improve handling, control lubrication and contact pressure | | Hole distortion | Feature punched too close to a bend or formed after local deformation | Move feature, change operation sequence, or validate with a trial | | Length variation and burrs | Cutoff setup, tool wear, unstable feed, unsuitable clearance | Define cutoff method, maintenance limits, and burr acceptance |
Not every deviation is a supplier failure. Some are interactions between material variation, drawing interpretation, and assembly conditions. For that reason, a buyer should avoid approving samples solely by visual comparison. The sample should be measured against an agreed drawing, tested in the actual mating fixture where practical, and reviewed for handling, packaging, and downstream finishing.
A further trade-off is between tighter dimensional control and cost. More stands, calibration, in-line sensing, slower speed, additional straightening, or post-forming correction may improve stability, but each can add equipment, setup, or inspection requirements. The objective is capability appropriate to function, not maximum precision everywhere.
RFQ and pre-production checklist
An effective RFQ gives suppliers enough information to quote the process honestly. Include the following items:
- A native CAD model and controlled two-dimensional drawing with revision status.
- Material grade, thickness tolerance, coating, surface class, and approved alternatives.
- Annual demand, batch size, launch schedule, forecast horizon, and expected call-off pattern.
- Finished length, allowable end condition, burr limits, straightness, twist, and critical profile dimensions.
- Hole, slot, notch, emboss, and end-forming requirements, with functional datums identified.
- Joining, painting, plating, adhesive, welding, or cleaning requirements after forming.
- Packaging, labeling, corrosion protection, bundle weight, and export-shipping constraints.
- Required sample stages, inspection records, traceability expectations, and change-control rules.
- Ownership, maintenance responsibility, storage location, and transfer terms for dedicated tooling.
Before purchase-order release, ask the supplier to return a process proposal showing the forming sequence, tooling assumptions, operation order, estimated scrap points, inspection approach, and known design risks. Confirm how engineering changes will be priced and managed after tool manufacture. Also clarify what happens if the specified material becomes unavailable or a coating supplier changes its product.
A pre-production review should include a drawing balloon plan, a control plan for critical characteristics, and agreement on sample quantities. Where the profile is long or flexible, inspect several locations along the part rather than only one cross-section. If the product is assembled under load, test fit and joining behavior before authorizing full-rate production.
Cost and sourcing trade-offs
Tooling is a primary economic variable. Roll dies are a dedicated investment, and their cost reflects profile complexity, material strength, number of operations, required features, roll material, machining precision, and validation effort. A low initial quote may exclude punches, cutoff tooling, straightening equipment, spare wear components, or engineering changes. A high quote may include robust maintenance provisions and a more complete validation scope. Compare quotation boundaries line by line.
Volume is important, but release stability matters too. A supplier may quote efficiently for a planned campaign yet incur additional setup and scrap when orders are fragmented. Long profiles can use transport space inefficiently, and packaging that prevents bending or edge damage may materially affect landed cost. Coils, finished lengths, and secondary operations should therefore be evaluated as one logistics system.
For international sourcing, define currency, delivery terms, customs responsibility, packaging standards, and spare-tool ownership early. Ask which dimensions are measured in-house and which require external verification. The best commercial comparison is a transparent total-cost model that separates recurring conversion cost from one-time tooling, validation, freight, finishing, and expected scrap.
Conclusion
Roll forming is a powerful production route for constant-section OEM metal parts, particularly when repeatability, efficient material flow, and integrated operations justify dedicated tooling. Its success depends on disciplined decisions made before the first roll is cut: select a compatible material, design realistic bends and features, establish functional datums, plan the operation sequence, and define inspection around assembly requirements.
For buyers and engineers, the most useful question is not “Can this supplier make the profile?” It is “Can the supplier demonstrate a controlled process that remains economical, measurable, and transferable over the life of the program?” A detailed RFQ, evidence-based sample approval, and explicit change-control agreement provide the foundation for that answer.
