Executive Summary
Powder coating and electroplating are both established finishing routes, but they should not be treated as interchangeable color or corrosion options. Powder coating applies a dry polymer powder to a prepared surface and then cures it into a continuous film. Electroplating deposits a metallic layer through an electrolytic process, usually after cleaning, activation, and masking. The result is a fundamentally different surface: one is an organic coating with meaningful film thickness; the other is a metallurgically bonded metallic deposit whose performance depends on the selected metal and deposit system.
For an international OEM buyer, the right choice follows the part’s operating environment and functional requirements. Powder coating is often attractive for large visible surfaces, broad color selection, electrical insulation, and economical coverage of steel fabrications. Electroplating is usually more suitable when the design needs conductivity, controlled friction, solderability, a metallic appearance, or a thin deposit on a machined or stamped component. Neither process automatically guarantees corrosion resistance. Pretreatment, geometry, rack or hanger strategy, film or deposit control, curing, rinsing, and inspection are as important as the finish name on the drawing.
A robust specification therefore states the substrate, preparation, finish chemistry or powder type, target appearance, critical dimensions, masking, test method, acceptance criteria, and packaging. It also requires the supplier to identify areas that are difficult to coat or plate, rather than allowing those details to emerge after production.
How the Two Processes Work

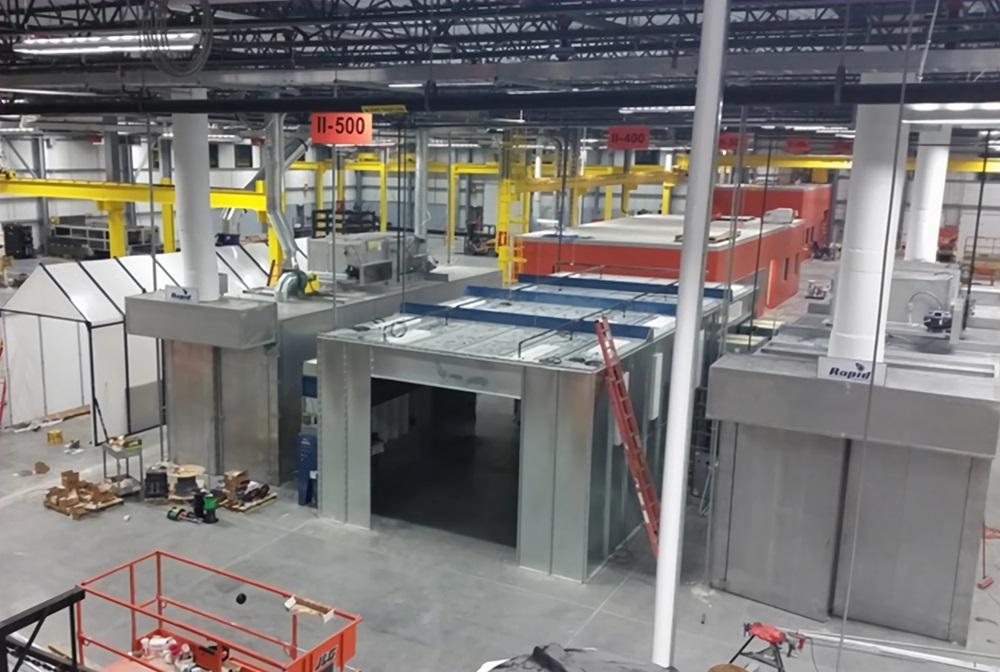

Powder coating: a cured polymer film
Powder coating begins with surface preparation. Steel, aluminum, or another compatible substrate may be degreased, rinsed, chemically treated, blasted, or otherwise conditioned to remove oil, oxides, scale, and contaminants. The exact sequence depends on the alloy, existing surface condition, required corrosion performance, and powder manufacturer’s recommendations.
A spray gun electrically charges powder particles while the part is grounded. Electrostatic attraction holds the particles on the exposed surface, although recessed areas, sharp edges, internal corners, and Faraday-cage regions can receive less powder. The coated part then enters an oven. Heat causes the particles to melt, flow, and chemically cross-link into a solid film. The relevant process variable is the metal temperature and time at temperature, not merely the oven air setting or conveyor speed.
The cured film can provide good resistance to abrasion, weathering, detergents, and general handling, depending on the resin family and service conditions. It is normally electrically insulating. Because the coating is relatively thick compared with many plated deposits, it can affect fits, threads, hinge clearances, grounding points, and heat-transfer interfaces.
Electroplating: a deposited metallic layer
Electroplating also depends on cleaning and activation, but its sequence is aqueous and electrochemical. Parts are immersed in process tanks, connected electrically as the cathode, and exposed to a solution containing ions of the plating metal. Current reduces those ions at the part surface, forming a metallic deposit. Common systems include zinc or zinc alloys for steel corrosion protection, nickel for appearance and wear resistance, copper as an underlayer or functional layer, and precious-metal deposits for electrical or contact applications.
Plating thickness is influenced by current density, bath chemistry, temperature, time, agitation, part orientation, and the geometry of the component. High-current areas such as edges may build faster, while recesses and shielded surfaces may plate more slowly. A process may use multiple layers, such as a strike, underplate, barrier, and final deposit. Post-treatments, sealers, baking, or conversion coatings can materially change corrosion behavior and appearance.
Unlike powder coating, electroplating remains electrically conductive when the selected deposit is conductive and continuous. It generally adds less thickness than a polymer film, but “thin” does not mean dimensionally irrelevant. Deposits can affect small bores, bearing seats, threads, connector interfaces, and sliding fits, especially when a part has tight bilateral tolerances.
Decision Criteria for OEM Parts
The best selection starts with function rather than color. The following comparison is a useful early-screening tool, but the final decision should be confirmed against the actual alloy, geometry, environment, and validation plan.
| Requirement | Powder coating tendency | Electroplating tendency | |---|---|---| | Large exposed steel panels or frames | Strong fit; efficient visual coverage | Possible, but tank size and handling may constrain the route | | Electrical insulation | Usually favorable | Usually unfavorable unless nonconductive areas are masked | | Conductivity or low contact resistance | Not inherent; requires masking or a separate contact strategy | Often favorable with a suitable metallic system | | Decorative color range | Broad, including textured and low-gloss options | Metallic appearance; color range depends on deposit and topcoat | | Very small dimensional allowance | Requires careful film control and masking | Often favorable, but deposit variation still needs control | | Deep recesses and enclosed geometry | May have shadowing or Faraday-cage effects | May have current-distribution and solution-access limitations | | Outdoor weathering | Depends strongly on resin, pretreatment, and UV exposure | Depends on metal, conversion layer, sealer, and galvanic environment | | Wear or sliding contact | Depends on powder formulation and surface design | Nickel or specialized deposits may be more appropriate |
Substrate compatibility and galvanic concerns
Powder coating can be used on several conductive substrates, but preparation must be tailored to the material. Aluminum requires attention to oxide formation and pretreatment. Zinc-coated steel requires a compatible process to avoid adhesion problems or outgassing. Castings and porous materials can release trapped gases during heating, creating pinholes or blisters. Stainless steel and other passive alloys may need specialized preparation if adhesion is critical.
Electroplating is not a universal solution for every alloy. Some substrates are difficult to activate, some require an intermediate layer, and dissimilar-metal combinations can introduce galvanic or adhesion concerns. If a plated part contacts another metal in a humid or salt-contaminated environment, the finish specification should consider the complete couple, not only the plated component. An underplate or barrier may be needed to prevent diffusion, discoloration, or substrate attack.
Environment and failure consequence
Ask what the part actually experiences: humidity, salt spray, ultraviolet light, chemicals, temperature cycling, abrasion, impact, assembly loads, and repeated handling. A finish that survives a laboratory corrosion screen may still fail at a cut edge, fastener interface, scratch, or damaged area in the field. Conversely, a decorative finish may be adequate indoors but unsuitable for exposed equipment.
Powder coating can offer a visually continuous barrier, yet a sharp impact can chip it and expose the substrate. Electroplated zinc can provide sacrificial protection to steel under many conditions, but the conversion layer and deposit integrity are essential, and white corrosion products may appear before red rust. Nickel may look durable but can be inappropriate as the sole corrosion strategy on a steel component if pores, cracks, or damaged regions expose the substrate. The finish must be selected with its failure mode in mind.
Design and Manufacturing Details That Affect Results
Geometry, edges, holes, and masking
Finish performance is often lost at geometry that was never discussed. Powder tends to accumulate at edges and corners, while recessed zones may receive less coverage. Electroplating can show heavier deposits at edges and thinner deposits in low-current-density areas. Both routes need access for cleaning and inspection. Blind holes can retain process fluids, while narrow gaps can trap rinse water, pretreatment chemicals, or uncured powder.
The drawing should identify no-finish zones for grounding, press fits, seals, threads, and bearing interfaces. Specify whether masking must be removed completely, whether a small transition is acceptable, and which surfaces are functionally critical. For powder coating, design hooks or rack points should be placed where a witness mark is tolerable. For plating, rack marks and contact points should be positioned away from visible or functional surfaces whenever possible.
Tolerance stack-up and assembly
Treat finish thickness as part of the dimensional stack-up. A nominal thickness is not the same as a guaranteed uniform thickness across every surface. If a shaft, bore, or threaded feature is important, state the pre-finish and post-finish condition required, or provide a controlled allowance and a measurement method. Do not assume that a standard finish specification overrides a tight machining tolerance.
Threads can be masked, chased, designed with allowance, or finished after coating or plating, depending on the part and process. Each option has consequences for corrosion exposure, labor, burrs, and repeatability. A supplier should review mating parts rather than evaluating the finished component in isolation.
Curing, hydrogen, and handling risks
Powder-coated parts require a validated cure window. Under-cure can reduce hardness, adhesion, chemical resistance, or flexibility; excessive heat can discolor the film or affect the substrate and assembled components. Large thermal masses and thin sheet sections may reach temperature at different rates, so the supplier should monitor representative load conditions.
Some electroplating processes can introduce hydrogen into susceptible high-strength steels. Where hydrogen embrittlement is a credible risk, the material grade, hardness, cleaning route, plating chemistry, baking requirements, and acceptance controls must be reviewed before release. This is not a reason to reject plating categorically; it is a reason to connect the finish process to the substrate’s metallurgical condition.
Common Failure Modes and Trade-Offs
Adhesion loss, blistering, and contamination
Powder adhesion failures commonly trace to oil, oxides, inadequate pretreatment, incompatible previous coatings, moisture, or incorrect cure. Blisters may result from trapped gases in castings, contamination, or moisture under the film. A supplier should distinguish a coating defect from a substrate defect and avoid simply sanding and recoating without addressing the cause.
Plating adhesion failures can arise from incomplete cleaning, passive surfaces, poor activation, excessive delay between preparation steps, or contamination in the bath. Peeling, flaking, and blistering can occur even when the visible color initially appears correct. Cross-sectional examination or adhesion testing may be needed for a new part, process, or supplier.
Corrosion at edges and damage sites
Edges, holes, welds, and rack marks deserve specific attention. Powder coating may pull back slightly at sharp edges or leave thinner protection where the powder field is disturbed. A plated deposit may be thinner in recesses or interrupted by a contact mark. Weld spatter, burrs, laser scale, and rough blasting can also create local defects or stress concentrations.
The buyer should define whether minor visual variation is acceptable and whether exposed base metal at a rack mark is allowed. If a corrosion test is required, specify the test standard, scribe method, duration, rating approach, and inspection location. A test without a defined interpretation can create disagreement rather than control.
Appearance versus function
Powder can hide minor surface texture, but it can also make dents, weld transitions, orange peel, craters, pinholes, and color variation visible under certain lighting. Metallic plating can reveal polishing lines, substrate pits, cloudiness, burn marks, and differences in deposit thickness. “Uniform appearance” needs a viewing distance, lighting condition, approved sample, and defined exclusions.
A high-gloss finish may show handling marks more readily than a texture. A decorative topcoat may improve appearance but alter friction, conductivity, or chemical resistance. Buyers should avoid specifying appearance alone when the part also serves as a ground, heat sink, seal carrier, or sliding interface.
RFQ and Pre-Production Checklist
A technically useful RFQ gives finish suppliers enough information to quote the real process rather than an assumed standard. Include the following items:
- Base material, temper or hardness where relevant, weld condition, and any existing coating or conversion layer.
- Part drawings with critical dimensions, mating features, surface roughness requirements, and clearly marked no-finish zones.
- Required finish family, color or metallic appearance, gloss or texture, target thickness range, and acceptable visual standards.
- Service environment, expected exposure, chemicals, temperature range, UV conditions, abrasion, and cleaning method.
- Corrosion, adhesion, hardness, conductivity, wear, or chemical-resistance tests, including the method and acceptance criteria.
- Masking, racking, contact-point, drainage, and packaging requirements, especially for visible panels and corrosion-sensitive parts.
- Whether the supplier must provide a first-article sample, finish coupon, process record, thickness map, or inspection report.
- Packaging controls that prevent abrasion, trapped moisture, contamination, and metal-to-metal contact during international transport.
Before production, ask for a joint review of the sample part. Confirm that the proposed cleaning sequence is compatible with the substrate, that all cavities can drain, and that rack marks will not land on critical areas. Measure the features that define assembly, not only broad exterior surfaces. If two finishes remain plausible, test representative parts in the actual assembly or a realistic fixture rather than choosing by brochure appearance.
Supplier questions worth asking
Ask how the supplier controls bath chemistry or powder application, how often thickness is verified, how cure is confirmed, and how nonconforming parts are segregated. For plating, request an explanation of deposit distribution on the actual geometry and any post-treatment or embrittlement controls. For powder, ask how the supplier handles color changes, reclaim powder, oven loading, and parts with significant thermal mass.
The answers should be process-specific. A generic statement such as “we meet industry standards” does not explain whether a critical bore is masked, whether a zinc deposit is sealed, or whether a coating repair is allowed. Those details belong in the purchase specification and control plan.
Conclusion
Powder coating is a practical choice when an OEM needs a durable polymer barrier, broad appearance options, insulation, and efficient coverage of substantial metal surfaces. Electroplating is better aligned with many requirements for conductivity, metallic contact behavior, controlled friction, thin functional deposits, or sacrificial protection on suitable substrates. The choice is not determined by color, part price, or habit.
Select the finish by mapping the service environment, substrate, geometry, tolerances, assembly interfaces, and failure consequences. Then make pretreatment, thickness, masking, curing or post-treatment, inspection, and packaging explicit in the RFQ. A clearly defined process gives the manufacturer a realistic route to repeatability and gives the buyer an objective basis for approving parts across international supply chains.
