Executive summary
Passivation is a chemical treatment used to improve the corrosion resistance and cleanliness of stainless steel parts after machining, fabrication, grinding, or other operations that may leave free iron and embedded contaminants on the surface. It does not add a conventional protective coating, change the nominal alloy, or repair poor design. Instead, a properly controlled treatment removes iron-bearing contamination and supports formation of the chromium-rich passive surface that stainless steel relies on for resistance in service. [1]
For an OEM buyer, the important question is not simply whether a supplier offers “passivation.” The purchase specification should identify the stainless grade, pre-cleaning expectations, treatment family when relevant, post-treatment rinsing and drying, masking requirements, acceptance criteria, and records needed for release. The right process depends on alloy chemistry, part geometry, contamination risk, regulatory requirements, and the intended environment. A sound specification also distinguishes passivation from electropolishing, pickling, descaling, and cosmetic brightening, because these processes have different purposes and dimensional effects.
What passivation does—and does not do
Stainless steel resists corrosion because its surface can develop a very thin, adherent oxide film enriched in chromium. That film is commonly called the passive layer. Cutting tools, fixtures, carbon-steel brushes, abrasive media, handling, and heat-treatment scale can introduce iron or other contaminants onto an otherwise suitable surface. Machining can also leave smeared metal, residues, and local surface damage that interfere with consistent passivation. [2]
Chemical passivation is intended to remove these contaminants without substantially attacking the base metal. Nitric-acid and citric-acid treatments are established process families, with the selected chemistry and operating window depending on the stainless alloy and the processor’s validated procedure. ASTM A967/A967M describes accepted chemical treatments and verification approaches for stainless steel parts; it also makes clear that passivation is a process specification, not a guarantee that every design or finish will perform in every service. [3]
Passivation is therefore not the same as painting, plating, conversion coating, or another barrier layer. A part that has been passivated should still look broadly like the underlying machined, formed, or polished surface. Minor variations in color can occur, but a glossy appearance is not proof of passivation. Conversely, a dull or matte surface is not automatically evidence of failure.
| Process | Primary purpose | Typical buyer concern | |---|---|---| | Passivation | Remove free iron and support a clean passive surface | Corrosion resistance and cleanliness after manufacturing | | Pickling | Remove scale, oxides, and some heat-tint or corrosion products | Surface attack, roughness, and dimensional impact | | Electropolishing | Smooth and brighten the surface electrochemically | Microroughness, particle retention, and controlled material removal | | Cleaning or degreasing | Remove oils, coolant, and process residues | Residual chemistry and compatibility with later steps |
These treatments can be combined in a process route, but they should not be used interchangeably in an RFQ.
How the process is normally controlled
A reliable route begins before the acid bath. The processor should know the alloy family, prior operations, surface finish, weld condition, and likely contaminants. Austenitic, ferritic, martensitic, precipitation-hardening, and duplex stainless steels do not always respond identically. Some grades and tempers require special attention to avoid excessive attack, staining, hydrogen-related concerns, or altered appearance. The supplier should confirm that its written procedure covers the specified material rather than assuming that one bath recipe fits every stainless part.
1. Pre-cleaning and inspection
Oil, grease, coolant, marking ink, shop dirt, and polishing compound must be removed before chemical treatment. If organic residue shields the metal, the bath may produce an uneven result. Pre-cleaning can include alkaline cleaning, solvent-compatible cleaning, or another controlled method appropriate to the part and downstream use. Welded parts may also require removal of heat tint or scale by a separate operation; passivation alone is not a substitute for descaling when oxide scale remains.
Before processing, the supplier should inspect holes, crevices, blind cavities, threads, and mating surfaces. Entrapped fluid is a practical risk. Small passages may require orientation, agitation, draining, or a dedicated rinse method. Parts should be loaded so that treatment reaches functional surfaces and liquids can leave without pooling.
2. Chemical treatment
The treatment exposes the cleaned stainless surface to a controlled passivating solution for a defined time and temperature range. The exact concentration, temperature, and duration are process variables that belong in the supplier’s controlled procedure unless the OEM has a reason to mandate a specific chemistry. Citric-acid systems are often selected where lower hazardous-material burden or a particular facility profile is important; nitric-acid systems remain common in established industrial processing. Neither label, by itself, proves suitability.
Material compatibility and geometry matter. Sharp edges, thin sections, closely fitted interfaces, deep recesses, and mixed-metal assemblies can increase the risk of uneven treatment or chemical retention. If the part includes copper alloys, elastomers, solder, inserts, or temporary tooling, the processor should review compatibility before release. When passivation follows welding, the buyer should identify whether weld discoloration, scale, or heat-affected surfaces must be removed by another approved operation.
3. Rinsing, neutralization where applicable, and drying
Rinsing is part of the process, not an afterthought. Acid residues left in threads, blind holes, lap joints, or internal channels can cause staining or localized attack after shipment. The route should use controlled rinsing suitable for the application, followed by drying that does not recontaminate the part. For high-cleanliness components, the specification may need to address water quality, handling gloves, packaging materials, and the maximum time between processing and packaging.
Packaging should protect the treated surface from carbon-steel contact, dirty benches, abrasive dust, and moisture condensation. A passivated component can be contaminated again by careless post-process handling. The buyer should define whether individual bagging, cleanroom-compatible packaging, protective caps, or other controls are required.
Choosing what to put in an OEM specification
The most useful specification tells a supplier what outcome must be demonstrated while leaving room for a qualified process. A typical requirement may reference ASTM A967/A967M or another applicable industry standard, name the stainless grade, and state the required verification method and acceptance basis. The drawing or purchase order should also identify surfaces that must remain free of stains, residues, burrs, or visible damage.
Do not write only “passivate per standard” if the part has unusual requirements. State the following points in proportion to risk:
- **Material and condition:** Include the exact alloy designation, heat-treated condition when relevant, and whether welds or mixed materials are present.
- **Pre-treatment:** State whether machining lubricant, heat tint, scale, burrs, or embedded media must be removed before passivation.
- **Surface requirements:** Define retained finish, critical cosmetic zones, roughness requirements if applicable, and areas that may not be chemically attacked.
- **Geometry controls:** Identify blind holes, microchannels, threaded cavities, pressure boundaries, and trapped-volume risks.
- **Masking and plugs:** Specify surfaces to be masked, plugged, or protected, and explain whether temporary masking may affect cleanliness.
- **Verification:** Name the required test or inspection basis, sample plan, and disposition of failed samples.
- **Documentation:** Request a certificate of conformance, lot traceability, processing date or batch identification, and test records when the application warrants them.
- **Packaging:** Define clean handling, packaging material, labeling, and protection against recontamination.
The term “passivated” should not silently include deburring, polishing, electropolishing, dimensional correction, or removal of weld scale. If those operations are needed, list them separately and put their sequence in the process documentation.
Verification and acceptance
Verification should be matched to the risk of the part. ASTM A967/A967M includes tests such as water immersion, high-humidity, salt-spray, copper sulfate, and ferricyanide-nitric acid approaches, with applicability depending on the material and requirement. [3] These tests are not all equivalent, and a test selected without considering alloy or service can create misleading confidence.
A buyer should ask the supplier which method is being used, why it is appropriate, and whether the requirement applies to every part, a representative sample, or a defined production lot. Visual inspection can identify stains, residues, discoloration, and obvious attack, but visual appearance alone cannot establish the absence of free iron. A free-iron test can be useful for detecting contamination, while corrosion-performance tests may be more appropriate when the component has a demanding service environment. [4]
Acceptance language should avoid vague terms such as “perfect finish.” Better wording identifies observable defects and the engineering function they threaten. For example, the purchase documentation may prohibit visible acid residue, red-rust indications after an agreed test, blocked passages, dimensional loss beyond drawing limits, and contamination on sealing or fluid-contact surfaces. The supplier and buyer should agree in advance how nonconforming samples are investigated and whether reprocessing is allowed.
Common failure modes and trade-offs
Treating dirty parts instead of cleaning them
Oil, polishing compound, and shop soil can produce patchy treatment. The remedy is not simply longer acid exposure. Improve pre-cleaning, verify wetting, and control handling between machining and passivation.
Confusing heat tint with passivation failure

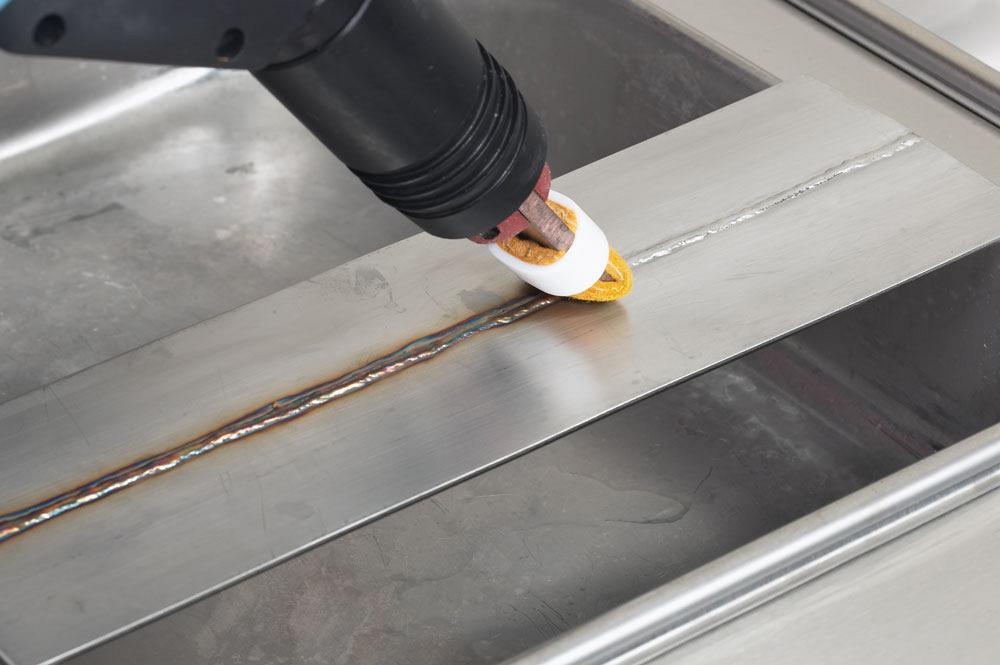

Weld heat tint is an oxide condition that may require mechanical or chemical removal. A part can be passivated after heat tint remains, yet still have an unsuitable surface for the application. Specify oxide removal separately when weld appearance or corrosion performance requires it.
Recontamination after processing
Contact with carbon-steel racks, wire brushes, dirty gloves, or steel shot can put iron back on the surface. Dedicated or properly controlled tooling and clean post-treatment handling are more effective than relying on a certificate alone.
Acid retention in complex geometry
Blind holes and narrow channels can retain solution. Staining, residue, or later corrosion may follow if rinsing and drying are inadequate. Design reviews should consider drainability, access for rinsing, and whether the component can be oriented during processing.
Over-specifying chemistry without a reason
Mandating a particular acid may exclude suitable suppliers or create unnecessary environmental and handling constraints. Unless the application, customer standard, or material requires it, specify the performance and verification basis first, then approve the processor’s validated chemistry.
Expecting passivation to fix design weaknesses
Crevices, stagnant fluid zones, rough scratches, dissimilar-metal contact, and inadequate drainage can remain corrosion risks after treatment. Passivation improves the surface condition; it cannot replace material selection, hygienic design, weld quality, or appropriate environmental controls.
RFQ and pre-production checklist
Before requesting quotations, an OEM team should align engineering, quality, and sourcing on the following questions:
- What exact stainless grade, temper, weld condition, and prior finish will the supplier receive?
- Is the requirement passivation only, or are cleaning, descaling, pickling, electropolishing, or deburring also required?
- Which surfaces are functional, cosmetic, sealed, or exposed to process fluid?
- Are there blind holes, narrow passages, lap joints, threads, or inserts that create drainage or compatibility risks?
- What standard and verification test apply, and what is the lot or sampling basis?
- What visible conditions are unacceptable, and what dimensional or roughness limits must remain unchanged?
- Are records, material traceability, batch identification, or test certificates required at shipment?
- How must parts be dried, protected, packaged, and labeled to prevent recontamination?
- Is reprocessing permitted, and how will a failed test or stained part be dispositioned?
- Has the supplier reviewed the complete process sequence, including machining, heat treatment, welding, cleaning, passivation, inspection, and packaging?
A small pre-production lot is valuable when geometry is complex or cleanliness is critical. It allows the team to inspect internal features, confirm that masking works, check appearance against an agreed reference, and verify that the selected test is practical. The goal is not to create an artificial “golden” sample that hides normal process variation; it is to establish a shared, documented acceptance baseline.
Conclusion
Stainless steel passivation is a targeted surface-treatment step that supports the alloy’s natural corrosion resistance after manufacturing contamination has been removed. Its effectiveness depends on the entire route: suitable material preparation, compatible chemistry, adequate rinsing and drying, controlled handling, and meaningful verification. For OEM procurement, the strongest specification defines the material, required condition, process boundaries, acceptance tests, documentation, and packaging without confusing passivation with unrelated finishing operations.
When buyers address geometry, weld scale, cleanliness, recontamination, and test scope before production, they reduce ambiguity without demanding invented performance promises. That clarity gives qualified manufacturers a fair basis for quoting and gives the OEM a defensible way to evaluate whether each lot is ready for assembly or service.
