Executive Summary
Packaging for custom metal parts is not a shipping afterthought. It is the final manufacturing operation that must preserve geometry, surface condition, cleanliness, traceability, and usable delivery condition from the supplier’s dock to the OEM’s line. A sound packaging specification translates those objectives into observable requirements: the part orientation, separators, containment, corrosion protection, label content, pack quantity, handling limits, and acceptance checks.
For an international buyer, the specification should be written as a controlled part of the purchase order or quality agreement, not left to a supplier’s default carton or a carrier’s preferences. The right design balances protection with pack density, labor, disposal, returnability, and local regulations. It also recognizes that a machined aluminum housing, a zinc-plated bracket, a sharp-edged stamped component, and a painted visible panel need different controls.
The practical method is to define the delivery condition first, identify the damage mechanisms in the logistics route, then select packaging features that prevent those mechanisms. Finally, verify the pack with representative handling and environmental checks before releasing routine production.
Start With the Required Delivery Condition
“Parts delivered without damage” is too vague to guide a packer or resolve a claim. A usable specification describes what the receiving team must find when the container is opened. That description should cover dimensional integrity, surface appearance, cleanliness, identification, quantity, and usability.
For dimensions, state whether the part must remain within the released drawing condition after packing and transport. Thin sheet components may bend under stacking loads, long shafts can bow when poorly supported, and precision-machined components can suffer burr damage through contact. Surface requirements should state whether parts must arrive dry, oil-preserved, free of fibers and adhesive residue, and separated from cosmetic faces. Also identify whether the receiving operation removes preservative, desiccant, or protective paper.
Define pack quantity and presentation
Pack quantity affects counting effort, line-side replenishment, damage exposure, and the severity of a single packaging failure. A high quantity per carton may reduce freight cost but increase contact and operator handling weight; a low quantity improves separation but consumes more packaging and handling time.
State pieces per inner pack, inner packs per outer container, and whether mixed part numbers are prohibited. For automated or kitted assembly, define orientation and presentation, such as fixed-direction nesting, pockets, or trays that avoid touching functional surfaces. For returnables, identify container type, footprint, stacking limit, and cleaning responsibility.
Map the Logistics Damage Mechanisms
Packaging decisions become clearer when the route is described as hazards rather than a generic “shipment.” Consider supplier handling, pallet loading, forklift movement, parcel or less-than-truckload transfer, ocean or air transit, customs inspection, storage, and line-side use. Each stage can add vibration, shock, compression, tipping, moisture, dust, temperature change, or uncontrolled handling.
A useful decision sequence is:
- Identify vulnerable features: edges, threads, sealing faces, cosmetic faces, holes, coatings, and thin sections.
- Identify loads: stacking compression, drops, vibration, sliding, and clamp or fork contact.
- Identify environmental risks: humidity, condensation, salt, dust, and prolonged storage.
- Define the handling interface: pallet, tote, rack, crane, forklift, or manual movement.
- Select containment, separation, cushioning, and barrier features for the highest risks.
- Confirm the pack can be packed, inspected, closed, labelled, and opened consistently.
Avoid specifying only a material, such as “use foam,” without defining its function. Foam may separate finished faces, but it can also shed particles, retain moisture, compress permanently, or react with a coating. Function and compatibility should lead; the material name should follow.
Match packaging architecture to part geometry

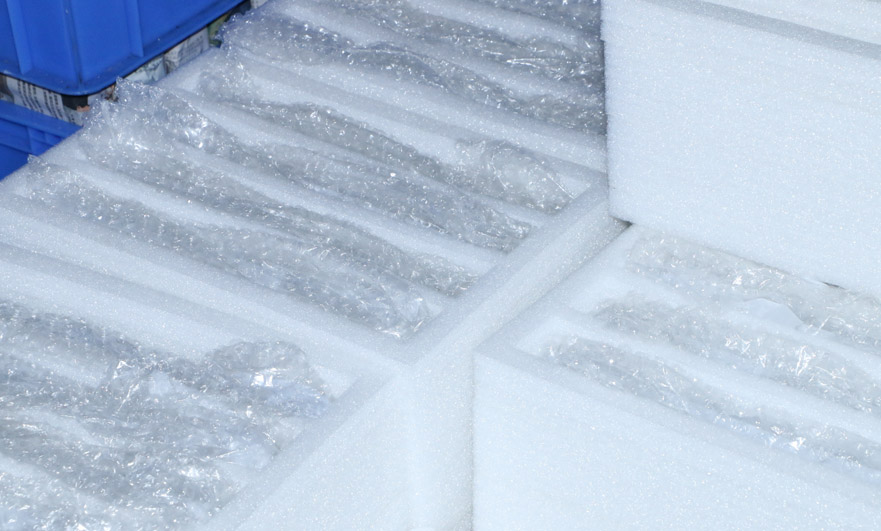

Small robust parts may be placed in bulk containers when controlled contact is acceptable. Parts with threads, machined bores, sealing lands, or visible finishes usually need dividers, pockets, sleeves, caps, or nested trays. Heavy parts need load-bearing supports that transfer weight to the container rather than through delicate features.
For sharp-edged stampings, prevent edges from cutting the carton, neighboring parts, or operators. Folded separators, edge guards, and defined loading direction can outperform loose paper. Long parts need enough support to limit sag, while movable assemblies may need immobilization to prevent fretting or impact marks. Restraint should distribute load over structurally capable surfaces rather than clamp a thin flange or cosmetic face.
Control Corrosion, Moisture, and Contamination
Metal parts can corrode after leaving the supplier. Risk depends on alloy, finish, residual contamination, storage duration, humidity, temperature cycling, and contact with dissimilar materials. Distinguish short domestic transit from extended international shipment or uncertain warehouse dwell.
Controls may include dry packaging, vapor corrosion inhibitor materials, oil or rust-preventive film, desiccant, sealed barrier bags, and corrosion-resistant separators. The system must suit the part and receiving process: a preservative may be unsuitable where parts are assembled without washing, while a sealed bag can trap moisture if wet parts are enclosed.
Specify the condition before packing: parts should be dry and free of wash water, unless the approved process explicitly requires a preservative. Define whether desiccant is permitted, how it is secured, and whether its indicator must be visible. Do not place loose desiccant where it can contact a finished surface or enter a bore. If a barrier bag is used, state closure method and whether damage to the barrier invalidates the pack.
Contamination control includes fibers, wood fragments, loose rust, oil transfer, metal chips, and packaging dust. Corrugated board, wood, foams, films, and adhesives should be selected with awareness of shedding and chemical compatibility. When parts enter a clean assembly environment, the packaging specification should identify the outer-to-inner transition point and any required wipe-down or inspection.
Make Labelling a Traceability Control
A label is not merely a warehouse convenience. It connects physical material to the purchase order, part revision, lot, quantity, and inspection status. The label should remain readable through normal handling and should be placed where it can be scanned without opening the container when practical.
At minimum, define the part number and revision, supplier identification, purchase order or delivery reference, lot or batch identification, quantity, pack sequence where applicable, and any status or date fields required by the OEM system. Barcodes should be specified by symbology and data structure only when the receiving system requires it; otherwise, the requirement may create avoidable incompatibility. Human-readable text should accompany machine-readable data.
Use one label hierarchy for inner packs and outer containers. An inner tray that loses its identity when separated from the carton creates a traceability risk. If multiple lots are prohibited in one container, say so. If mixed lots are allowed only with physical separation and distinct labels, define that arrangement. Labels should not be attached directly to a cosmetic or functional surface unless the adhesive and removal method are approved.
Include handling and opening information
External marks should communicate orientation, stacking limits, moisture sensitivity, and lifting or fork-entry restrictions when meaningful. Supplement symbols with concise text where needed. Opening instructions should identify safe cutting locations, separator removal, container retention, and inspection of damaged returnables.
Balance Protection Against Cost and Sustainability
The cheapest pack per shipment is not necessarily the lowest-cost system. Total cost includes damage, sorting, line stoppage, repacking, disposal, storage, labor, return freight, and investigation of unclear deliveries. Compare systems on total delivered risk, not carton price alone.
Reusable totes and custom trays can provide consistent presentation and reduce disposable waste, but require reverse logistics, cleaning, asset control, and a shortage plan. Disposable corrugated packs are easier to deploy internationally but may need stronger separation and can vary with humidity. Wood can offer load strength yet introduce weight, moisture, treatment, or splinter concerns. Choice depends on route, volume, sensitivity, and the OEM’s operating model.
Design for efficient cube utilization without exceeding ergonomic or structural limits. Ask the supplier to show packed footprint, gross mass, stack arrangement, and empty-space assumptions before approval.
Common Failure Modes and Trade-Offs
One frequent failure is “carton within carton” packaging with no positive separation. The outer box appears undamaged, yet parts rub together during vibration. The corrective action is not simply thicker cardboard; it is controlled spacing, restraint, or a different orientation.
Over-tight packaging is another failure mode: inserts can press on sealing faces, deform thin walls, or transfer marks from hard edges. Confirm contact locations against the drawing and load path; soft material is not automatically safe if it compresses unevenly or retains abrasive particles.
Corrosion failures often begin with packing parts before they are fully dry. Increasing desiccant quantity may not solve that root cause. Review wash, drain, cool-down, and pack-room conditions, then verify the barrier is closed correctly. Similarly, a label may be present but useless if it falls off in condensation, is hidden under stretch wrap, or identifies only the outer pallet.
Mixed-lot and mixed-part packaging creates receiving errors even when every individual label is technically correct. Keep identification at the smallest practical pack level and require physical segregation where mixing is permitted. Finally, packaging changes made informally can invalidate a previously approved handling method. Treat changes to inserts, container size, corrosion materials, pack quantity, or label format as controlled changes requiring review.
RFQ and Pre-Production Checklist
A packaging requirement can be attached to an RFQ as a concise data sheet, then expanded after the supplier proposes a pack. The following questions expose missing assumptions before production starts:
- What delivery condition is required for dimensions, finish, cleanliness, corrosion protection, and usability?
- Which surfaces, edges, threads, holes, or sealing features may not contact packaging materials?
- What are the approved pack quantities, part orientations, and maximum gross mass?
- Is bulk packaging acceptable, or are pockets, dividers, caps, sleeves, or trays required?
- What route, handling modes, storage duration, and environmental exposures should the pack address?
- Are preservatives, desiccants, barrier bags, wood, foams, adhesives, or recycled materials restricted?
- What information must appear on inner, outer, pallet, and returnable-container labels?
- Which barcodes, human-readable fields, lot rules, and revision controls apply?
- How will the pack be inspected, closed, opened, and repacked without damaging parts?
- What evidence is required before approval: photographs, a packing sample, dimensional checks, or a handling trial?
- Which packaging changes require written approval, and who owns returnable assets and damaged containers?
Before release, request a packing sample using production-intent parts and materials. Review loading time, operator access, label placement, container stability, and part condition after unpacking. For unusually long routes or sensitive parts, a representative handling evaluation can expose failure modes before they become recurring receiving problems.
Conclusion
An OEM packaging specification should describe a controlled delivery condition, the hazards of the logistics route, and the packaging features that prevent damage, corrosion, contamination, and traceability loss. Define the vulnerable features, set pack and label rules, review environmental compatibility, and approve production-intent samples before routine shipments. Packaging then becomes a repeatable part of manufacturing quality rather than an uncertain final handoff.
