Executive Summary
Before a manufacturer prices a custom metal part, the drawing is read as both a design definition and a manufacturing plan. A quotation depends on more than the material name and overall dimensions. The supplier must understand how the part will be made, which features control function, what inspection evidence is required, and where ambiguity could create assumptions. Every unresolved assumption becomes a commercial or production risk.
For an international OEM buyer, an effective drawing review is therefore a structured decision process. It should distinguish functional requirements from preferred methods, identify characteristics that genuinely need tight control, and expose information that is missing from the drawing package. The goal is not to make every dimension tighter or every document longer. The goal is to make design intent clear enough that qualified manufacturers can quote the same scope and plan a repeatable process.
A manufacturer typically reviews the part in five connected layers: **scope**, **manufacturability**, **quality requirements**, **commercial effort**, and **launch risk**. The following checklist explains what each layer means and what an OEM team should resolve before issuing or comparing an RFQ.
1. Confirm the Drawing Package and Scope
The first review is administrative, but it has technical consequences. A supplier needs to know which document controls the quote and which files are supporting references. A two-dimensional drawing may define dimensions and tolerances, while a three-dimensional CAD model defines shape. A specification may define material, heat treatment, coating, cleanliness, or testing. If these documents conflict, the quotation cannot be based on a stable interpretation.
The manufacturer will normally check the drawing revision, issue date, units, projection method, scale, sheet count, and referenced standards. Revision history matters because an outdated model paired with a current drawing can lead to incorrect tooling or process assumptions. The supplier may also verify whether the quoted quantity is prototype, pilot, annual, or lifetime demand, because production method and inspection planning change with volume.
The RFQ should clearly identify the following:
- Part number, revision, description, and intended application.
- Quantity required for the quotation, first order, and expected annual demand.
- Prototype, validation, pilot, or serial-production status.
- Supplied files, including drawing, CAD model, specifications, and approved deviations.
- Required delivery location, packaging expectations, and commercial terms.
- Whether tooling, fixtures, gauges, programming, or engineering support should be priced separately.
A manufacturer also looks for evidence that the supplied files are complete. Missing detail drawings, undefined purchased components, absent finish specifications, or unclear assembly relationships may not prevent a rough budgetary estimate, but they prevent a dependable production quote. An OEM should label any assumptions deliberately rather than expecting each supplier to make a different one.
2. Read Geometry Through the Manufacturing Route
A drawing describes what the part should be; the manufacturer must determine how to create it. Geometry is therefore reviewed against likely processes such as CNC machining, sheet-metal fabrication, stamping, laser cutting, bending, casting, forging, or a combination of operations. The same shape may be feasible through several routes, but each route has different tooling, setup, tolerance, surface, and quantity implications.
The supplier examines stock size, material removal, wall thickness, access for cutting tools, bend access, forming direction, weld access, and the number of operations needed. A deep pocket with narrow internal corners may be machinable but require small tools, longer cycle time, and additional tool-change or finishing operations. A thin sheet feature may be geometrically possible but vulnerable to distortion during cutting, forming, or welding. A hole close to an edge may be acceptable in one process and unstable in another.
Design-for-manufacture review is not simply a search for impossible features. It is an assessment of process sensitivity. The manufacturer asks whether the feature can be produced consistently, inspected realistically, and handled without damage. A part that is technically possible in a prototype may be inefficient or unreliable at production volume.
Questions Applied to Geometry
For machined parts, the review should consider tool diameter relative to pocket width, depth-to-width relationships, internal radii, hole depth, thread access, datum accessibility, and the ability to hold the workpiece securely. For sheet-metal parts, it should consider bend radius, bend sequence, hole-to-bend distances, grain direction where relevant, springback, weld distortion, and deburring access. For formed, cast, or forged parts, draft, parting strategy, radii, wall transitions, shrinkage, and post-process machining may dominate the quotation.
The OEM should identify which surfaces are functional and which are merely visual or clearance surfaces. That distinction helps a supplier prioritize process controls. It may also reveal that a nominal dimension can be relaxed without affecting performance, while another apparently ordinary dimension is critical because it establishes alignment in an assembly.
3. Separate Functional Tolerances from Default Tolerances
Tolerance review is often the most important technical part of quoting. A general tolerance block gives a baseline, but it does not explain which features matter most. If the drawing applies tight tolerances broadly, the supplier may assume that extensive finishing, temperature-controlled measurement, special fixturing, or multiple inspection stages are required. If critical relationships are left vague, different suppliers may quote different levels of process control.
The manufacturer looks for dimensional tolerances, geometric tolerances, datum references, surface-finish requirements, and the relationship between them. Position, flatness, perpendicularity, parallelism, profile, concentricity-related controls, and runout can affect both process planning and inspection method. A tolerance is meaningful only when its datum structure and measurement method are understandable.
A useful OEM review asks three questions for every tight requirement:
- What function does this requirement protect?
- Which process and measurement method will verify it?
- Is the requirement needed on the entire feature, or only on a defined zone?
Tight tolerances can be justified by sealing, bearing fit, alignment, motion, electrical contact, pressure retention, or interchangeability. They should not be applied merely because a CAD system displays many decimal places. Conversely, a loose tolerance on a mating feature can be more dangerous than a tight tolerance on an isolated feature.
The drawing should also make clear whether dimensions are basic, reference, theoretical, or inspection-driving. Where a coordinate system or datum scheme is essential, the OEM should consider whether a model-based definition, inspection diagram, or critical-characteristic list would remove interpretation risk.
4. Verify Material, Condition, and Finish Requirements
Material information must describe more than a commercial alloy or steel family when performance depends on condition. The supplier may need the grade, temper, hardness range, heat-treatment condition, mechanical requirement, corrosion expectation, or source restriction. Different material conditions can affect machinability, forming behavior, distortion, weldability, and final properties.
The quotation review also covers finish. “Black,” “plated,” “anodized,” or “passivated” may be insufficient without a recognized specification, color or appearance expectation, thickness range where relevant, masking areas, dimensional allowance, and post-finish inspection requirements. A coating can change dimensions, edge appearance, friction, conductivity, or fit. Chemical treatment can influence corrosion resistance and may require cleaning or handling controls.
The manufacturer will want to know whether the finish is functional, cosmetic, or both. A visible exterior panel may require an appearance standard and handling protection, while an internal bracket may only need corrosion protection. If the entire part receives a finish but certain faces must remain uncoated, masking must be represented clearly. Ambiguous cosmetic language is a frequent source of disagreement because different parties use terms such as “smooth,” “uniform,” or “no marks” differently.
Material and finish review should also consider supply availability and approved substitutions. An OEM may permit equivalent grades, but equivalence must be defined by the properties and standards that matter. A supplier should not silently substitute material or finish chemistry simply because the alternative is easier to source.
5. Identify Inspection and Documentation Burden
Quality requirements influence both price and lead time. A manufacturer reviews whether the RFQ calls for a first-article inspection, dimensional report, material certificates, hardness results, coating certificates, weld records, process certificates, capability evidence, traceability, or special testing. These documents may be appropriate, but each should be linked to a real customer, regulatory, safety, or functional need.
The buyer should distinguish between characteristics that must be measured on every part and characteristics verified during first-article or periodic inspection. It should also define sampling expectations where applicable rather than leaving the supplier to guess. A request for “full inspection” can mean different things: every dimension on every part, every critical dimension on every part, or a report covering one representative sample.

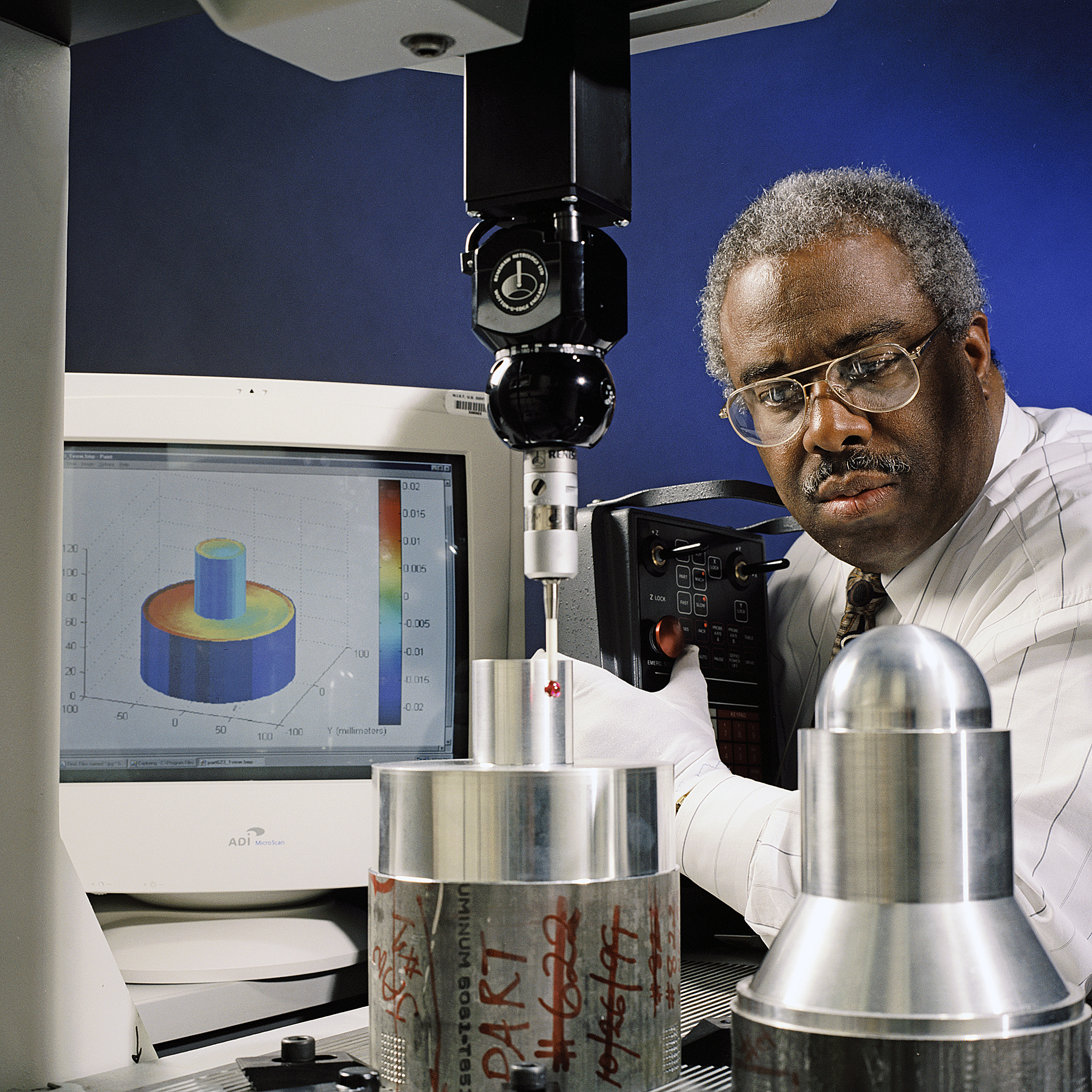

Measurement feasibility is important. A supplier may be able to inspect a dimension with calipers, a height gauge, a coordinate measuring machine, optical equipment, a functional gauge, or a specialized fixture. The selected method depends on size, geometry, tolerance, surface, and required uncertainty. If the drawing controls a feature that is difficult to access after finishing or assembly, the process may need an in-process check or a dedicated gauge.
A practical quality section in the RFQ should state what records are required, when they are due, what format is acceptable, and whether the customer will provide templates. This reduces administrative assumptions and makes quotes more comparable.
6. Review Quantities, Tooling, and Process Economics
A quotation is shaped by demand pattern as much as by part geometry. Prototype quantities may favor flexible machining or fabrication. Higher recurring volumes may justify stamping dies, dedicated fixtures, automated inspection, nesting strategies, or secondary-process investments. The supplier therefore reviews order quantity, batch size, forecast stability, release pattern, and expected program duration.
Tooling ownership and maintenance should be addressed before the quote. The RFQ should state whether tooling is customer-owned, supplier-owned, amortized into piece price, or priced as a separate non-recurring item. It should also clarify whether the quoted tooling includes design, manufacture, tryout, corrections, spare components, maintenance, and end-of-life replacement.
Manufacturers examine setup count, material utilization, machine capacity, outside processing, inspection time, packaging, and handling. A part with low raw-material cost can still be expensive if it requires several setups, slow machining, manual blending, special masking, or outsourced treatment. Conversely, a more material-intensive route may be economical when it reduces operations and stabilizes production.
International buyers should request a clear separation between recurring and non-recurring costs. This makes it easier to compare a flexible prototype route with a production-oriented route without confusing tooling investment with unit manufacturing cost.
7. Common Drawing Review Failure Modes
One common failure is the “everything is critical” drawing. When every surface receives tight tolerances, premium finish language, and extensive reporting requirements, the supplier cannot see the true priorities. The result may be an unnecessarily expensive process or a quote based on conservative assumptions. A critical-characteristic list and functional tolerance analysis usually communicate intent better.
A second failure is the incomplete mating context. A part may be dimensionally defined in isolation while its fit depends on a shaft, seal, fastener, weldment, or adjacent housing. Without mating information, the manufacturer cannot assess stack-up, access, sequence, or inspection datums. Supplying relevant assembly drawings or interface dimensions can prevent avoidable redesign.
A third failure is confusing model appearance with specification. A CAD model may show a chamfer, fillet, hole, or surface but not define its size or purpose. Conversely, a drawing may contain a reference feature that is visible but not required for function. The OEM should make the controlling definition explicit.
A fourth failure is specifying a process before defining the outcome. Requiring a particular machine method may prevent a supplier from proposing a lower-risk route, unless that method is necessary for material behavior, qualification, intellectual property, or validation. Where the process is not mandatory, define the required result and acceptance criteria instead.
8. Pre-Production RFQ Checklist
Before sending the RFQ, the OEM team should confirm that the package answers the questions below:
- Is the part number, revision, unit system, and document hierarchy unambiguous?
- Are all functional interfaces, mating parts, and assembly conditions identified?
- Are datums practical to establish and accessible for inspection?
- Are tight tolerances limited to requirements supported by function?
- Are geometric tolerances and surface finishes defined with understandable references?
- Are material grade, condition, heat treatment, and substitution rules stated?
- Are coating, plating, masking, color, appearance, and dimensional effects addressed?
- Are burr, sharp-edge, cleanliness, marking, and packaging requirements included?
- Are prototype, pilot, serial quantities, forecast, and release assumptions stated?
- Are tooling, fixtures, gauges, programming, and engineering charges separated?
- Are inspection reports, certificates, traceability, and sample requirements specified?
- Is the supplier expected to identify deviations and assumptions with the quotation?
After quotations arrive, compare the assumption lists rather than looking only at unit price. A lower quote may exclude tooling, outside processing, documentation, packaging, or a required inspection stage. A higher quote may include a more robust route or a clearer interpretation. The most useful comparison normalizes scope before ranking commercial offers.
Conclusion
A drawing review checklist is a sourcing-control tool, not just an engineering formality. Manufacturers use it to translate geometry and requirements into operations, controls, inspection methods, and commercial assumptions. OEM buyers benefit when they make the same translation before requesting prices.
The strongest RFQ packages explain what must function, what must be measured, what appearance is acceptable, how demand is expected to develop, and which assumptions are negotiable. They do not attempt to prescribe every manufacturing decision without reason. By clarifying priorities and resolving ambiguity early, an OEM can obtain quotes that are easier to compare, designs that are easier to launch, and production parts that are less likely to require corrective interpretation after the purchase order is issued.
