Executive Summary
Metal stamping and CNC machining are both capable routes for producing custom metal parts, but they are not interchangeable versions of the same process. Stamping forms sheet or strip material with a matched tool and press. CNC machining removes material from a solid workpiece or near-net blank through controlled cutting operations. The right choice depends on the part’s geometry, material thickness, annual demand, dimensional priorities, surface requirements, tooling budget, and acceptable production risk.
For a relatively thin part that can be developed from a flat blank, stamping often offers fast cycle times and repeatable production once the die is proven. It is particularly effective for brackets, shields, clips, terminals, covers, and other parts with bends, pierced holes, or formed features. CNC machining is usually more flexible for three-dimensional geometry, low-to-medium quantities, frequent revisions, tight feature relationships, and parts that begin as bar, plate, billet, or casting. It can also be the better choice when the design cannot be unfolded into a practical blank or when material removal is modest compared with the cost of dedicated tooling.
A sound sourcing decision should compare **total manufactured cost and technical fit**, not only the first quoted piece price. A low stamping price may exclude die development, maintenance, tryout, and engineering changes. A low machining quote may conceal long cycle times, multiple setups, difficult chip evacuation, or extensive inspection. The best process is the one that reliably delivers the required function over the complete production life of the part.
How the Processes Create the Part
Metal stamping: forming a blank with controlled force

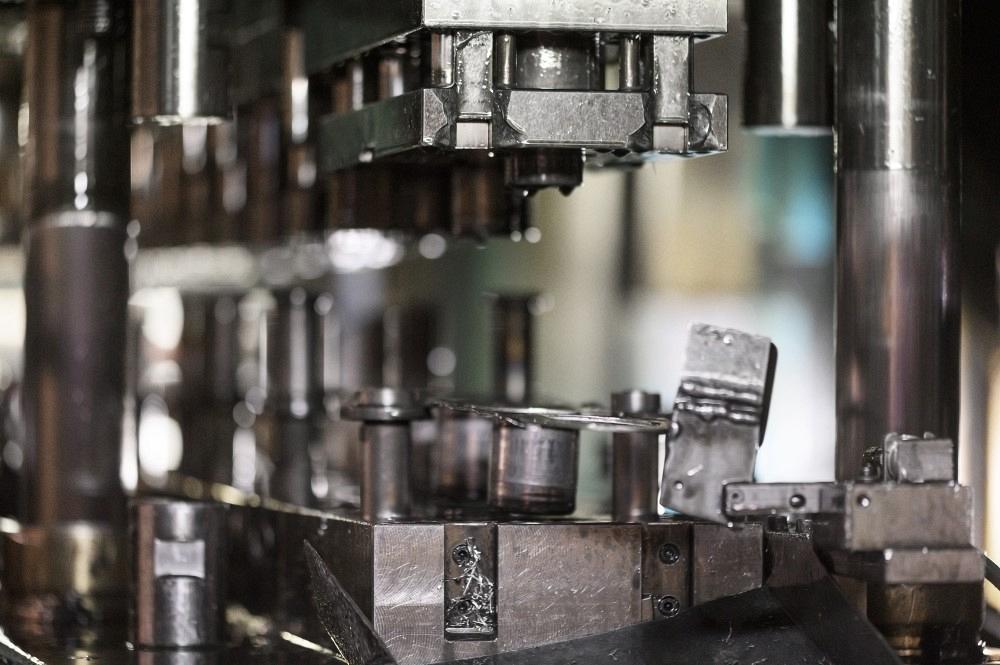

In stamping, a press drives a punch into a die or through a die opening. The operation may blank the outside profile, pierce holes, bend flanges, draw a cup, emboss a surface, coin a feature, or combine several actions in a progressive or transfer tool. The starting material is commonly supplied as coil, strip, or pre-cut sheet. A single press stroke can perform one operation or several operations, depending on the tool design.
The designer must account for material thickness, bend direction, grain orientation, springback, minimum bend radii, corner relief, burr direction, and the relationship between pierced and formed features. The flat blank is not simply the finished outline laid on a screen. It is a developed shape that compensates for deformation and material movement. Tool clearance, punch condition, lubrication, feed accuracy, and press alignment influence edge quality and dimensional consistency.
Stamping can be paired with secondary operations. These may include tapping, clinching, deburring, flattening, welding, heat treatment, plating, painting, or assembly. In a high-volume program, the economics may favor integrating several forming and piercing steps into one progressive die. In a lower-volume program, a simpler die with separate bending or finishing operations can avoid excessive upfront investment.
CNC machining: removing material with programmed tools
CNC machining begins with digital toolpaths that control cutting tools relative to a workholding system. A mill can produce pockets, slots, bosses, holes, contours, and three-dimensional surfaces. A lathe can turn diameters, faces, grooves, threads, and bores. Mill-turn equipment, Swiss-type lathes, and five-axis machines extend the range of possible geometries, but they also introduce programming, fixture, and inspection considerations.
The material may be cut from bar, plate, block, forging, extrusion, or casting. The programmer chooses tools, cutting conditions, entry strategies, stepovers, workholding methods, and the order of operations. The manufacturing engineer must consider tool access, internal corners, wall thickness, deflection, heat generation, burr formation, chip evacuation, and the amount of stock left for finishing passes.
Machining is inherently adaptable. A design revision may require a new program, fixture adjustment, or tool change rather than a complete die redesign. That flexibility is valuable during product development, for service parts, and for products whose demand is uncertain. It does not mean that every geometry is economical. A complex part with large volumes of removed material can become expensive because machine time, tooling wear, coolant management, and inspection effort accumulate on every piece.
The Main Selection Variables
| Selection factor | Stamping is often favorable when | CNC machining is often favorable when | |---|---|---| | Geometry | The part is sheet-based, bendable, and largely prismatic | The part has solid three-dimensional features or difficult formed geometry | | Demand | Repeated production justifies dedicated tooling | Quantity is limited, variable, or still being validated | | Material form | Coil or sheet is readily available in the required gauge | Bar, plate, billet, extrusion, forging, or casting is appropriate | | Design change | The design is mature and stable | Revisions, variants, or customization are expected | | Cost structure | Tool investment can be amortized across many parts | Programming and fixtures are preferable to a dedicated die | | Features | Holes, tabs, bends, embosses, and draws dominate | Precise bores, pockets, threads, contours, and 3D surfaces dominate | | Finishing | Inline or batch finishing can follow forming efficiently | Machined surfaces or selective finishing are central to function |
These are tendencies rather than rules. A thin, flat component with a few holes may still be machined for a prototype, while a high-volume machined blank may be converted to a stamped or forged preform to reduce material removal. Hybrid routes are also common: stamp a near-net shell, then machine critical bores or datum surfaces; or machine a small run before investing in a production die.
Geometry and Design for Manufacturing
The first practical question is whether the part can be represented as a manufacturable blank. Stamping becomes more attractive when the component has uniform thickness, broad planar areas, manageable bends, accessible holes, and a sensible progression of operations. Deep draws, narrow flanges, large changes in section, and closely spaced features may require specialized development and careful control of forming strain. A design that looks simple in a solid model can be difficult if it has no room for tooling, feeding, pilots, or part ejection.
Machining becomes attractive when the component needs independent control of several faces, intersecting bores, contoured surfaces, or local thicknesses that stamping cannot create economically. However, a machined design should not assume unlimited tool access. Internal square corners often require small-radius tools or a secondary process. Deep narrow cavities may cause tool deflection. Thin walls can distort under cutting forces or clamping pressure. Long holes may require specialized drilling or boring strategies.
OEM teams should involve manufacturing engineering before the drawing is frozen. A small change to hole spacing, bend orientation, corner radius, datum scheme, or stock allowance can substantially improve process stability. Design for manufacturing is not merely a way to reduce quotation price; it helps establish a part that can be inspected, maintained, and reproduced across suppliers.
Tolerances, Datums, and Functional Features
Neither process should be selected by quoting a single headline tolerance. The important question is which dimensions control assembly, sealing, motion, electrical contact, structural load, or appearance. Stamping can provide highly repeatable features after tool qualification, but material variation, springback, die wear, burrs, and press conditions affect results. Formed features may also shift relative to pierced features if the sequence and restraint are not well designed.
Machining can hold close relationships between features that are established in the same setup, but accuracy depends on machine condition, thermal behavior, tool wear, workholding, probing, and the datum strategy. A dimension spread across several setups may be less robust than one created in a single clamping. The drawing should identify functional datums and avoid assigning unnecessarily tight tolerances to noncritical surfaces.
For either route, specify edge-break expectations, burr limits, flatness or profile requirements, surface texture where functional, and the inspection method for difficult features. If a stamped part has a permissible burr direction because of assembly orientation, state it. If a machined bore requires a particular measurement method or cleanliness level, define that before the RFQ. Ambiguity shifts risk into the production phase.
Material Behavior and Secondary Operations
Material selection affects both processes. Ductility, yield strength, work hardening, thickness, temper, grain direction, and coating condition influence stamping behavior. A grade that is attractive for strength may be challenging to draw or bend without cracking. Edges cut from sheet may need attention where fatigue, handling, sealing, or electrical contact matters.
In machining, hardness and microstructure affect tool life, cutting forces, burrs, surface finish, and heat treatment distortion. Plate or bar may have residual stresses that become visible when substantial material is removed. If the final part will be anodized, plated, painted, passivated, or otherwise finished, the buyer should confirm how the substrate, edge condition, and masking requirements interact with that treatment.
Secondary operations can change the process decision. A stamped part may need extensive leveling, deburring, tapping, or assembly that eliminates its apparent advantage. A machined part may be economical if it avoids several forming, joining, and rework steps. Ask each supplier to show the complete routing, including material preparation, forming or cutting, inspection, cleaning, finishing, packaging, and any outsourced operation.
Common Failure Modes and Trade-Offs
A frequent stamping failure is excessive springback, which changes bend angles or overall form after the load is released. Other issues include edge tearing, wrinkles in drawn areas, cracked bends, slug pulling, burr growth, feeding errors, and tool galling. These problems can be reduced through suitable material selection, bend compensation, radii, lubrication, tool maintenance, and controlled process windows, but they should be considered during die design rather than after production starts.
Machining failures commonly include chatter, poor surface finish, burrs, tool breakage, dimensional drift from wear or heat, distortion of thin walls, and damage caused by inadequate workholding. A part can meet individual dimensions yet fail assembly because the inspection plan does not control the feature relationship that matters. Excessive tool changes, repeated re-clamping, or difficult internal access can also make a technically possible design commercially unattractive.
The central trade-off is **dedicated efficiency versus adaptable flexibility**. Stamping commits more engineering and capital earlier, but a mature tool can produce repeated parts rapidly. Machining commits more time and cutting effort to each part, but it postpones irreversible tooling decisions. Buyers should evaluate the cost of being wrong: an unsuitable die can be expensive to revise, while an unsuitable machining route can create recurring piece-cost and capacity problems.
How to Compare Quotes on a Total-Cost Basis
Request comparable assumptions. A stamping quote should identify die type, number of operations, expected tool life assumptions, tryout scope, maintenance responsibility, material utilization, scrap treatment, and the cost impact of engineering changes. A machining quote should identify stock form, number of setups, fixture scope, programming or nonrecurring engineering, cycle assumptions, inspection requirements, and whether deburring and finishing are included.
Material utilization deserves special attention. Stamping may generate skeleton scrap between parts, while machining may generate chips from a large billet. Neither scrap figure alone determines the answer because nesting, recovery value, material price, and part geometry all matter. Include packaging, freight, outsourced finishing, quality documentation, and inventory strategy in the comparison.
For uncertain demand, model at least three scenarios: prototype or pilot quantity, expected annual volume, and a higher-volume case. The result may support machining initially, followed by a stamped production design once the product stabilizes. Alternatively, a stamped part may remain preferable if volume is modest but the tooling is simple and the secondary routing is short.
RFQ and Pre-Production Checklist
Before requesting quotations, provide a controlled drawing, a native or neutral CAD model, material and temper, surface-finish requirements, annual and release quantities, forecast horizon, target production location, and packaging expectations. Mark critical-to-function characteristics and identify the inspection reports required at approval and during production.
Use this short review before placing an order:
- Confirm whether the part is intended for stamping, machining, or a staged prototype-to-production route.
- Identify the functional datums, critical feature relationships, and realistic tolerances.
- State burr direction, edge condition, flatness, surface texture, cleanliness, and cosmetic zones.
- Ask for a proposed process flow, including setups, forming operations, secondary work, and inspection gates.
- Separate tooling, fixtures, programming, samples, validation, and recurring piece price.
- Define ownership, storage, maintenance, repair authorization, and change control for dies and fixtures.
- Request material traceability and evidence that the supplied material matches the drawing requirement.
- Agree on first-article sample quantity, dimensional report format, capability evidence where justified, and approval criteria.
- Clarify how deviations, rework, scrap, and engineering changes will be communicated.
- Review packaging and corrosion protection so parts arrive in the same condition in which they were approved.
A supplier’s response should make assumptions visible. If a quoted process depends on a tolerance relaxation, a split operation, a different stock form, or a finishing allowance, that condition belongs in the technical review rather than in an informal conversation.
A Practical Decision Sequence
Start with the part’s material form and geometry. If the design is a thin, developable component with repeatable holes and bends, obtain a stamping feasibility review. If it is a solid component with pockets, bores, threads, or multiple sculpted surfaces, obtain a machining review. Next, classify demand certainty and design maturity. Low certainty and frequent changes favor flexible processes; stable demand supports investment in dedicated tooling.
Then separate critical from noncritical requirements. Consider whether a hybrid blank, near-net preform, or secondary machining step solves the real problem better than an all-or-nothing choice. Finally, compare complete route costs and validation risks over the intended program life. A disciplined decision may involve prototype machining, soft tooling, or short-run stamping before the final process is committed.
Conclusion
Metal stamping is strongest when a stable, sheet-based design must be repeated efficiently through forming and piercing. CNC machining is strongest when geometry, customization, or feature control demands flexible material removal. The correct choice depends on the interaction of design, volume, material, tolerances, tooling, secondary operations, and quality planning.
For international OEM purchasing teams, the most reliable approach is to request transparent process proposals rather than price-only quotations. Freeze the functional requirements, invite manufacturing feedback, compare total cost across realistic volumes, and validate the features that govern assembly or performance. When the part and production strategy are aligned, either process can be a dependable foundation for a global supply program.
