Executive summary
Metal spinning, also called spin forming, shapes a circular metal blank over a rotating mandrel by applying localized pressure with a roller or forming tool. The operation is well suited to hollow, rotationally symmetrical components such as cones, hemispheres, domes, reflectors, housings, funnels, covers, and pressure-related shells. Unlike machining from a solid billet, spinning can create a near-net shape with continuous material and little scrap. Unlike deep drawing, it can often accommodate prototypes, low-to-medium volumes, and changes to the profile without requiring a large progression of dies.
For an OEM buyer, the central question is not simply whether a part is “spin-able.” It is whether the specified geometry, material, surface requirement, production quantity, and inspection plan are compatible with a stable forming route. Wall thinning, wrinkling, tearing, springback, residual stress, tool marks, and variation at the open end all need to be considered before tooling is released. A capable supplier should be able to explain the forming sequence, blank size, intermediate anneals, trimming method, and verification strategy rather than quoting only a finished-part price.
This guide outlines the process and the purchasing decisions that most influence manufacturability, quality, and total cost.
How the metal-spinning process works

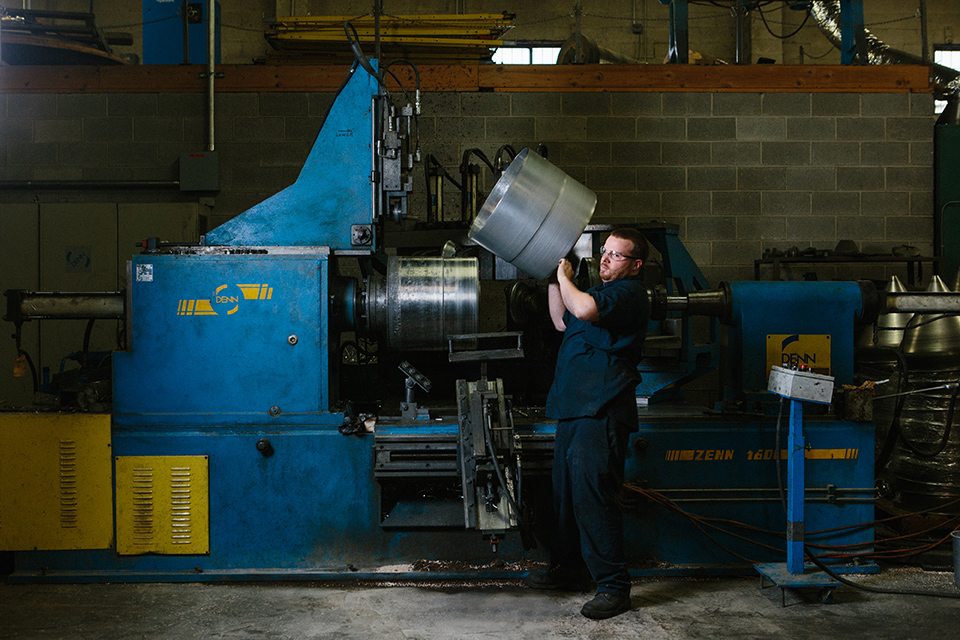

The basic setup contains a spindle, a mandrel or form block, a circular sheet blank, a tailstock or axial support, and one or more forming tools. The blank is clamped against the mandrel and rotates with it. A roller advances along a programmed or operator-controlled path, pressing the material against the mandrel until the required contour is developed. The tool does not normally contact the entire surface at once; deformation is concentrated in a moving zone.
The part may be formed from a flat blank into a hollow shape, or an existing preform may be spun through one or more operations. In conventional spinning, the blank diameter and wall thickness remain broadly related to the finished geometry, although local thinning and thickening can occur. In shear spinning, the tool path deliberately reduces wall thickness while expanding or shaping the part. Flow forming uses related localized deformation principles but is generally associated with more controlled axial reduction and specialized equipment.
The distinction matters during an RFQ. A supplier that proposes conventional spinning for a part designed around shear-spun wall reduction may need different tooling, equipment, and process controls. The drawing should therefore identify the intended functional wall thickness, not merely the nominal starting gauge.
Manual, CNC, and multi-operation routes
Manual spinning relies on an experienced operator to control tool pressure, feed, and contact. It can be valuable for prototypes, repair work, development parts, and simple shapes, but repeatability depends heavily on operator technique and setup discipline. CNC spinning uses programmed axes and controlled feeds to repeat a defined path. It is usually more appropriate when the part has a demanding profile, a visible surface, multiple operations, or a production quantity that justifies process development.
Many parts require more than one pass. A roughing pass may establish the general contour, followed by one or more finishing passes that seat the material against the mandrel. Separate trimming, beading, flanging, piercing, machining, welding, heat treatment, or surface-finishing operations may follow. The best route is the one that controls deformation without creating unnecessary handling or rework, not automatically the route with the fewest nominal operations.
Where spinning fits in an OEM manufacturing strategy
Spinning is attractive when rotational symmetry is fundamental to the component. It can produce a seamless shell from one blank, which may eliminate a longitudinal weld and reduce the number of joints exposed to leakage, vibration, or corrosion. The process also supports relatively quick design changes when the mandrel can be modified, replaced, or built from a lower-cost material for development.
It is commonly considered for lighting and optical reflectors, HVAC and ventilation parts, industrial covers, loudspeaker components, cookware, laboratory vessels, aerospace-shaped shells, and equipment housings. Suitability depends on the actual alloy and geometry. Aluminum, stainless steel, mild steel, copper, brass, and some nickel-based alloys may be formed by spinning, but each has different work-hardening behavior, lubrication needs, surface sensitivity, and allowable strain.
Spinning is less compelling for non-axisymmetric shapes, parts with many integrated holes or tabs, extremely high volumes with stable dimensions, or designs whose cost is dominated by secondary machining. Deep drawing may be more economical for large repeat orders when a progressive die can amortize its cost. Hydroforming, stamping, machining, fabrication, or additive methods may be better for other geometries. A sourcing decision should compare the complete manufacturing chain rather than the primary forming operation alone.
| Requirement | Why it affects the route | Buyer question | |---|---|---| | Axisymmetric profile | Determines whether the blank can be formed around a mandrel | Is rotational symmetry maintained around the datum axis? | | Material and temper | Controls ductility, work hardening, and surface behavior | Is the supplied temper suitable for the planned strain? | | Annual quantity | Influences tooling and automation economics | Should the process be manual, CNC, or dedicated? | | Wall-thickness control | May require multiple passes or shear spinning | Where is thickness functionally critical? | | Surface appearance | Makes tool condition and lubrication important | Which surfaces are cosmetic, functional, or hidden? | | Downstream features | Can add trimming, machining, and inspection cost | Can holes, flanges, and threads be postponed? |
Design and material details that deserve early attention
The profile should be dimensioned from clear datums and should distinguish the formed zone from the trim allowance. A perfectly sharp internal corner is generally difficult to form and may concentrate strain. A defined blend radius gives the material and tool a more manageable transition. Long, unsupported straight sections can be vulnerable to instability, while abrupt changes in angle can require staged forming or a redesigned profile.
The open-end condition is especially important. A spun shell may need trimming to establish its final length, then rolling or machining to create a flange, bead, or precise rim. If the rim is part of a seal, bearing fit, or stack-up, the drawing should specify the finished condition after secondary operations. Do not assume that the as-spun edge is suitable as a precision datum.
Material documentation should identify alloy, temper, thickness, and applicable specification. Temper can affect formability as much as nominal alloy designation. A harder condition may improve strength but reduce the available forming strain. In some routes, an intermediate anneal restores ductility before additional passes; this adds time, handling, cleaning, and potentially scale or discoloration. The supplier should state whether annealing is expected and how the condition will be verified afterward.
Lubrication reduces friction and helps protect the surface, but it can introduce cleaning requirements or contamination concerns. For oxygen service, food contact, vacuum use, or other sensitive applications, the complete lubricant and cleaning process must be reviewed against the product requirements. A visual surface that looks acceptable may still require a separate cleanliness or residue-control specification.
Tooling, tolerances, and inspection planning
The mandrel establishes the internal or external form, depending on the setup, and its accuracy directly influences the formed profile. Tooling material and finish should match the part material and expected production life. A hard tool may resist wear, while a softer or coated tool may reduce marking on a cosmetic surface. The correct choice is application-specific and should be confirmed through trials rather than assumed from a generic tooling rule.
Tolerances should reflect how the part is made and used. A spun shell can show variation from material thickness, blank centering, springback, tool deflection, thermal effects, and operator or program differences. Tight profile tolerances over the entire surface may require CNC control, dedicated gauging, machining, or a more rigid alternative process. Applying a narrow tolerance to every dimension can increase cost without improving function.
A practical control plan may include incoming material verification, blank-diameter checks, setup approval, first-off dimensional inspection, wall-thickness measurements at defined locations, rim inspection after trimming, and visual examination for cracks, folds, scoring, or unacceptable waviness. For pressure, leak, or fatigue applications, the OEM should define the required test method and acceptance criteria independently of the supplier’s general visual inspection.
Reference standards can help establish terminology and inspection discipline, but they do not replace application-specific requirements. For example, ASTM guidance on aluminum and wrought alloy products provides material and test context, while ISO GPS standards provide a framework for communicating geometrical specifications; the relevant edition and product specification should be selected for the actual component [1] [2].
Common failure modes and trade-offs
**Wrinkling** occurs when compressive stresses destabilize a portion of the blank. It may be encouraged by excessive unsupported material, an unsuitable tool path, inadequate support, or an unfavorable blank-to-profile relationship. A controlled sequence, better support, altered feed, or intermediate preform can reduce the risk.
**Tearing or cracking** indicates that local strain, work hardening, edge condition, or material ductility has exceeded the process window. The remedy may involve a larger blend radius, a different temper, more gradual passes, lubrication changes, or an anneal. Simply increasing forming force is rarely a reliable solution.
**Excessive thinning** can reduce strength and create a part that meets outside dimensions but fails its functional requirement. Thickness should be measured at engineered critical zones, particularly near transitions and areas subjected to pressure, sealing load, fatigue, or attachment forces.
**Springback and profile drift** can leave gaps between the material and mandrel after the tool passes. Compensation in the tool path, additional sizing passes, controlled trimming, or secondary machining may be needed. The drawing should make clear whether dimensions apply in a free state, constrained state, or assembled condition.
**Surface scoring and orange peel** may result from tool roughness, contamination, excessive pressure, unsuitable lubrication, or material structure. Cosmetic acceptance should use agreed samples or objective limits. “No marks” is not a measurable requirement and can produce disputes at final inspection.
**Out-of-roundness and runout** may originate in blank centering, mandrel alignment, spindle condition, clamping, or post-forming release. If the component mates with rotating or concentric parts, specify the datum scheme and measurement method, including whether runout is checked before or after trimming.
The principal trade-off is flexibility versus repeatability. Spinning can avoid expensive hard tooling and support changes, but a low-tooling-cost route still requires engineering time, skilled setup, and inspection. Conversely, a dedicated CNC process or precision mandrel may cost more initially while reducing variation and secondary work over the production life.
RFQ and pre-production checklist
A useful RFQ gives the supplier enough information to evaluate the process before committing to a price or schedule. Include the following:
- A fully dimensioned 2D drawing with datums, material condition, thickness, surface requirements, and revision status.
- A 3D model showing the nominal profile, while identifying which document controls if the model and drawing differ.
- Annual volume, batch size, forecast horizon, prototype quantity, and expected production cadence.
- Critical functional zones, allowable wall-thickness range, roundness or runout requirements, and post-forming measurement conditions.
- Details of trimming, flanges, beads, holes, threads, welds, inserts, machining, heat treatment, coating, and cleaning.
- The intended service environment, including temperature, pressure, chemicals, vibration, fatigue, sealing, or electrical requirements.
- Required material certificates, traceability, inspection records, sample approval, and any customer or regulatory standards that apply.
- Cosmetic criteria supported by photographs, limit samples, or clearly described defect categories.
Before production approval, ask the supplier to provide a process flow, proposed blank and tool strategy, likely intermediate operations, identified risks, and a first-article inspection plan. Confirm who owns the mandrel, how tool changes are controlled, and what happens if a design revision changes the profile. For repeat orders, establish packaging and storage requirements so that thin shells are not distorted after inspection.
A small trial is often more informative than a long exchange of assumptions. The trial should use production-intent material and a representative tool where practical. Review dimensions, wall thickness, surface condition, trimming, and any destructive or functional tests required by the application. Do not approve only a visually attractive sample if the production process, material source, or measurement method will change later.
Conclusion
Metal spinning is a capable forming route for axisymmetric OEM components when the design, material, tooling, and inspection plan are developed together. Its advantages include seamless construction, efficient use of sheet material, profile flexibility, and a practical path from prototype to repeat production. Its limitations include sensitivity to local strain, springback, support conditions, surface protection, and secondary operations.
For international sourcing, the strongest RFQ is specific about function and measurable acceptance while leaving the supplier room to propose a robust sequence. Compare spinning with deep drawing, machining, fabrication, and other forming processes on total delivered performance, including tooling, inspection, finishing, logistics, and change control. A technically transparent pre-production review will do more to protect cost and schedule than choosing a process name in isolation.
