Executive Summary
Metal stamping is often described as a high-throughput process, but repeatable output depends on a controlled interaction between material behavior, tooling geometry, press motion, lubrication, and inspection. A stamped component can meet its nominal dimensions in a drawing and still fail in production because the forming path creates excessive tensile strain, unstable compression, elastic recovery, or adhesive wear. The most familiar symptoms are **cracking, wrinkling, springback, and galling**.
For an international OEM buyer, the important question is not simply whether a supplier can make one acceptable sample. It is whether the supplier can identify the likely failure mode before production, demonstrate a controlled process window, and provide evidence that the part remains functional after tool wear, material-lot variation, and normal line interruptions. Failure analysis should therefore begin at the part and process definition stage, not after a batch is rejected.
The practical approach is to connect each visible defect to its mechanical cause. Cracking usually indicates excessive localized tensile strain or inadequate material flow. Wrinkling is commonly related to compressive instability or insufficient restraint. Springback reflects elastic recovery after forming. Galling is adhesive damage between the sheet and tooling surfaces, often accelerated by pressure, sliding, surface condition, or inadequate lubrication. These mechanisms can coexist, so correcting one symptom without checking the complete forming path may shift the problem elsewhere.
How a Stamped Part Fails
A stamping operation may include blanking, piercing, bending, drawing, restriking, coining, and trimming. Each stage changes the stress state in the sheet. A flange may be compressed while the wall is drawn in tension; a pierced edge may introduce a notch that later becomes a crack; a bend may spring open after the punch is removed. The final defect is therefore a process-history problem rather than a simple visual imperfection.
A sound review starts with three questions:
- Where does material need to move, and where is it intentionally restrained?
- Which regions experience the highest tensile, compressive, bending, or sliding loads?
- Which dimensions are functional after unloading, and how will they be measured?
Material grade, thickness, rolling direction, yield strength, work-hardening behavior, anisotropy, and surface finish all influence the answers. A drawing that specifies only a commercial grade and nominal thickness may not provide enough information for a robust forming plan. Buyers should define the governing material standard, acceptable substitutions, surface requirements, and any critical directionality or edge-quality expectations before quoting.
Tool design is equally important. Punch and die radii, clearance, draw-bead layout, blank-holder force, reliefs, transition surfaces, and shut-height control determine how the sheet flows. The [ASM forming-process overview](https://www.asminternational.org/) and the [Auto/Steel Partnership forming guidance](https://www.autosteel.org/) both emphasize the relationship between material properties, geometry, and forming limits.[1] [2]
Failure Mode 1: Cracking and Tearing
Cracking appears when local deformation exceeds the material’s ability to sustain strain. In drawn or stretch-formed regions, the crack often develops at a punch radius, die radius, corner transition, flange-to-wall junction, or near a pierced feature. It may be a clean split, a jagged tear, or a fine surface fracture that becomes visible only after coating or service loading.
Why cracking develops
The immediate cause is usually excessive tensile strain, but the process can reach that condition through several routes. A small or sharp forming radius concentrates strain. Excessive blank-holder force prevents the flange from feeding material into the draw, increasing wall tension. Insufficient lubrication raises friction and makes material flow less uniform. A blank that is too small may force the tool to stretch the sheet instead of drawing it. Conversely, an unsuitable blank shape can create uneven reserve material and overload one sector.
Material variation also matters. A stronger or less ductile lot may require a different forming strategy than the nominal grade suggests. Anisotropy can produce directional differences in earing and drawability. Burrs from prior blanking or piercing operations can act as stress concentrators, especially when a later forming operation places the affected edge in tension.
What reduces cracking risk
The preferred corrective action is to improve material flow rather than merely polish the crack or increase press force. A supplier may adjust radii, clearance, draw-bead restraint, blank-holder load, lubricant application, blank development, or the sequence of forming operations. Moving a hole away from a highly strained corner, adding a forming station, or changing the preform can be more effective than changing material grade after the tool is built.
A buyer should ask to see the supplier’s method for locating high-strain areas. This may include forming simulation, grid-mark testing, sectioned first-off parts, or a documented trial matrix. The method is less important than whether it identifies the cause, records the change, and verifies that the repair has not created thinning, wrinkling, or dimensional drift elsewhere. For safety-related or fatigue-sensitive components, crack inspection should be appropriate to the risk; visual inspection alone may not reveal early defects.
Failure Mode 2: Wrinkling and Buckling
Wrinkling is an uncontrolled wave or buckle created when sheet material is subjected to compression without enough support. It commonly appears in a flange during drawing, along a wide unsupported wall, or near a transition where material flow changes abruptly. Wrinkles may be removed by a later restrike, but hiding them can leave residual thickness variation, surface marks, or unstable dimensions.
The restraint trade-off
Wrinkling and cracking are opposing risks in many drawing operations. More blank-holder force can suppress flange wrinkles by increasing restraint. Too much force, however, can restrict material inflow and raise tensile stress until the wall cracks. Less restraint may improve drawability but allow a flange to buckle. The correct setting is a process window, not a universal maximum or minimum.
Part geometry determines how narrow that window is. Large flat flanges, deep draws, abrupt corners, low-strength sheet, and insufficient support are more prone to compression instability. Tool alignment and press parallelism can create uneven restraint, so a defect on only one side does not automatically prove a material problem. Unequal lubrication or local wear can have the same visual effect.
Practical controls
Wrinkling control may involve a revised blank outline, draw beads, binder geometry, bead height, local radii, additional support, or a different operation sequence. In some cases, a carrier or temporary feature stabilizes the part until trimming. In others, a redraw or restrike is needed because the desired shape cannot be formed in one operation without losing control of the flange.
When reviewing samples, inspect both the visible surface and the trimmed edges. A supplier should show whether the wrinkle was eliminated by controlled flow or simply forced flat. Check the part under consistent lighting and with the specified assembly interfaces loaded if that reflects actual use. A cosmetic requirement should distinguish between a visible surface that must remain smooth and a hidden area where minor forming marks are acceptable.
Failure Mode 3: Springback and Dimensional Drift
Springback is the elastic recovery that occurs when forming loads are removed. The sheet does not remain exactly in the shape imposed by the punch and die because part of the deformation is elastic. Bends may open, walls may change angle, and large panels may twist or distort. Higher-strength steels and parts with long, lightly constrained flanges can be especially sensitive, although every material and geometry combination has its own response.
Springback is not necessarily a tooling defect. It is a predictable consequence of the material’s stress-strain behavior, bend geometry, residual stress distribution, and process sequence. It becomes a manufacturing problem when the design does not define which unloaded dimensions are critical or when the supplier compensates the tool without a stable measurement method.
Managing elastic recovery
Common controls include overbending, restriking, coining selected regions, changing bend radii, adding beads or local stiffness, and compensating the die geometry. The best choice depends on whether the part must preserve surface condition, fatigue performance, edge quality, or assembly position. Heavy coining may improve angular repeatability but can mark the surface and alter local thickness or hardness. A restrike may correct shape while adding cycle time and tool complexity.
Measurement strategy is essential. A part should be measured in a defined free-state condition, with datums, support points, temperature, and gauge method agreed before trial approval. If the component is checked in a fixture, the fixture must not conceal a free-state problem that will reappear when the part is installed. For assemblies, buyers should specify functional gauges or mating trials where appropriate, while retaining traceable dimensional data for critical features.
Because springback can change with material strength and thickness, incoming material control should be connected to the forming process. A supplier may need to monitor certificates, thickness, hardness, or selected mechanical properties within the agreed material specification. The goal is not to reject every normal variation, but to understand which variation is capable of moving a functional dimension outside its limit.
Failure Mode 4: Galling and Tool Adhesion

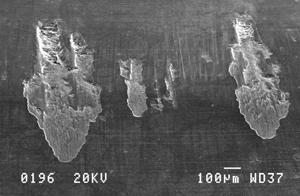

Galling is a form of adhesive wear in which material transfers between the sheet and tooling surfaces. It can produce scratches, scoring, raised deposits, pickup on the die, and progressively worse surface damage. Galling is common where contact pressure and sliding are high, such as draw radii, beads, corners, and narrow forming lands. Once transferred material roughens the tool, the roughened area can accelerate further pickup.
Why surface condition matters
Galling risk is influenced by tool material, hardness, coating or treatment, sheet surface, lubricant chemistry, cleanliness, contact pressure, sliding distance, and local heat. A lubricant that performs well in one operation may be unsuitable for another, particularly when the part is galvanized, pre-coated, stainless, aluminum, or destined for a downstream joining or finishing process.
Poor housekeeping can also contribute. Metal fines, damaged wipers, burrs, and contaminated lubricant create local abrasion or interrupt the intended lubrication film. A tool may produce acceptable parts at the beginning of a run and then generate scratches after pickup accumulates. This is why first-piece approval is not enough evidence for a cosmetic or exposed component.
Controls and trade-offs
Corrective actions include cleaning and polishing the affected tool area, improving filtration and lubricant delivery, changing surface treatment, reducing local pressure, revising radii, or selecting a tool material better suited to the application. Coatings can reduce adhesion, but their suitability depends on forming load, edge condition, substrate preparation, and maintenance practice. A coating is not a substitute for correct flow or a clean tool.
Specify the acceptable surface condition with representative samples, lighting conditions, and location-based criteria. A hidden internal mark and a visible exterior scratch should not be treated as the same defect. Also confirm whether the chosen lubricant is compatible with washing, painting, welding, adhesive bonding, or corrosion protection. Environmental and worker-safety requirements may limit available formulations.
A Decision Framework for OEM Buyers
A useful supplier review links defect risk to the stage where it can be prevented. During design review, examine radii, hole locations, draw depth, flange width, material direction, and access for inspection. During tool design, review the forming sequence, blank development, restraint strategy, simulation assumptions, and compensation plan. During trials, vary the important settings deliberately instead of approving a single recipe that has not been challenged.
| Risk | Typical mechanism | Evidence to request | Typical trade-off | |---|---|---|---| | Cracking | Local tensile strain, restricted flow, sharp transition | Trial sections, strain or crack review, material controls | More flow can increase wrinkles | | Wrinkling | Compression instability, inadequate support or restraint | Draw-bead review, free-state inspection, trial settings | More restraint can cause tearing | | Springback | Elastic recovery and residual stress | Defined datums, free-state measurement, compensation record | Restrain or coin features may mark parts | | Galling | Adhesive wear under pressure and sliding | Tool-maintenance plan, surface samples, lubricant controls | Treatments add process and maintenance requirements |
The supplier should also explain what happens after a line stop, tool cleaning, material-lot change, or maintenance intervention. These events can alter lubrication, temperature, alignment, or restraint. A robust control plan identifies the restart checks and the features that receive increased attention during ramp-up.
RFQ and Pre-Production Checklist
Include the following information in the RFQ or technical review package:
- Material standard, grade, thickness range, coating, surface class, and permitted substitutions.
- Flat pattern or blank assumptions, grain-direction requirements, and any restrictions on welded or laminated stock.
- Critical dimensions in the free state, functional datums, assembly interfaces, and cosmetic zones.
- Required edge condition after blanking, piercing, and trimming, including burr direction or maximum acceptable burr where relevant.
- Expected annual volume, batch size, press constraints, operation sequence, and secondary processes.
- Lubricant, cleaning, painting, welding, adhesive, and environmental compatibility requirements.
- Inspection method, gauge concept, sampling plan, first-off approval criteria, and reaction plan for nonconformance.
- Tool-maintenance expectations, spare inserts, wear monitoring, and ownership of design changes.
Before production approval, ask for evidence that the supplier has tested the process beyond the easiest condition. Review parts from more than one material lot when feasible, inspect both visible and hidden surfaces, and compare free-state dimensions with functional fit. Confirm that corrective actions address the mechanism, not only the symptom. A decision record should identify the accepted residual risks and the controls assigned to each one.
Conclusion
Cracking, wrinkling, springback, and galling are different manifestations of the same underlying challenge: controlling material flow and contact conditions throughout the stamping cycle. The most reliable manufacturing decisions are made before hard tooling is finalized, when geometry, material, restraint, and inspection methods can still be changed economically.
For OEM procurement teams, supplier capability is best judged by the quality of the reasoning and evidence behind a process—not by a single attractive sample. A clear RFQ, defined free-state measurement, documented trial logic, and practical maintenance plan create a common language between design, sourcing, tooling, and production. That preparation reduces avoidable rework while preserving the flexibility needed to produce durable, dimensionally stable metal parts at scale.
