Executive Summary
Edge condition is often treated as a finishing footnote, yet it directly influences whether a custom metal part assembles, handles safely, survives cyclic loading, accepts a coating, and meets the customer’s inspection plan. In stamping, the edge is shaped by punch and die clearance, material behavior, tool wear, and the direction of fracture. In machining, it is shaped by the cutting tool, toolpath, burr formation, deburring method, and the accessibility of the feature.
For an OEM buyer, the central issue is not whether an edge is “smooth.” That description is too subjective for a drawing, quotation, or production approval. The requirement should identify the intended geometry, the critical locations, the acceptable residual burr, the measurement method, and any surfaces that must remain sharp or functionally defined. A small edge break may be sufficient for handling, while a controlled radius or chamfer may be necessary for sealing, insertion, fatigue resistance, or electrical contact.
The best specification balances function with process capability. Overly broad language creates inconsistent interpretation; unnecessarily tight edge requirements create secondary operations, longer inspection time, and avoidable cost. This article provides a practical framework for choosing and communicating edge conditions in stamped and machined metal parts.
What “Edge Condition” Actually Includes
An edge condition is the physical form and surface state where two faces meet. It includes the nominal geometry, the transition from one face to another, and any material left by the manufacturing process. The most common conditions are a natural sharp edge, a burr, an edge break, a radius, and a chamfer.
A **burr** is unwanted material projecting beyond the intended profile. It may be a thin rollover, a torn fragment, a raised lip, or a localized protrusion. Burrs are not always visible from a normal viewing angle, especially inside holes, slots, or recessed pockets. Their direction matters: a burr on a mating face can interfere with seating, while a burr on a handling edge can create a cut hazard.
An **edge break** removes or blunts the sharp intersection without requiring a precise, fully formed radius or chamfer. A drawing note such as “break all sharp edges” communicates intent, but it does not by itself define how much material may be removed. A more useful requirement gives a range, for example a small maximum edge break, and identifies exceptions.
A **radius** is a curved transition. It can reduce local stress concentration, improve sliding contact, or protect a coating from an abrupt corner. A radius is more demanding than a general edge break because its size and continuity may be functionally important.
A **chamfer** is a planar transition, commonly specified by width and angle. It may guide a part into an assembly, provide clearance for a mating fillet, remove a sharp corner, or create a lead-in for a fastener or shaft. A chamfer is usually easier to inspect than an undefined “smooth” edge, but its actual manufacturability depends on access and tool orientation.
How Stamping and Machining Create Different Edges
Stamped part edges

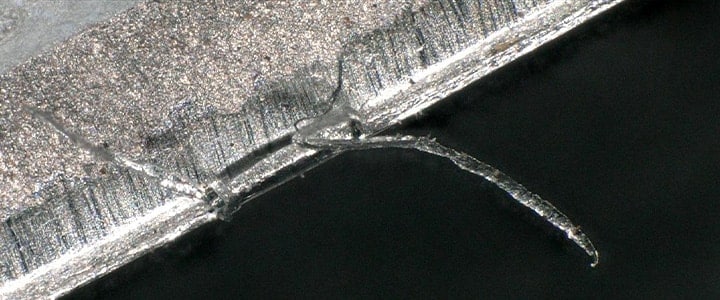

A sheared stamped edge typically contains several zones rather than one uniform surface. The punch first penetrates the sheet, producing a relatively smooth burnished region. As separation continues, the material fractures and leaves a rougher break zone. On one side, the displaced material can form rollover; on the opposite side, a burr may project from the fracture exit.
The direction of the burr is predictable relative to the punch and die, but it is not automatically identical across every feature. Hole geometry, local support, sheet thickness, material temper, punch sharpness, and die clearance all influence the result. A progressive die may create different edge behavior at different stations, particularly after forming operations change the local geometry.
Tool wear generally increases rollover and burr formation. Excessive or poorly controlled clearance can also enlarge the fractured zone and make the edge less consistent. Reducing clearance is not a universal solution: it can increase force, accelerate wear, damage tooling, or make slug pulling more likely. The correct setting is a process decision tied to material and thickness, not a simple “tighter is better” rule.
If a stamped edge will be inserted into a seal, slide against another component, carry current through a contact, or remain exposed to an operator, the drawing should state the functional requirement. A secondary operation such as tumbling, brushing, belt finishing, or precision deburring may be appropriate, but each can affect dimensions, flatness, plated surfaces, and small features.
Machined part edges
Machining creates burrs through plastic deformation as the cutting tool exits a surface, intersects another toolpath, or breaks through a hole. Burr size depends on material ductility, cutting conditions, tool sharpness, feed direction, wall thickness, feature geometry, and the support available at the exit. A drilled cross-hole, for example, may produce a raised lip where the drill breaks through into a curved or thin wall.
Milling can leave a burr on the up-cut or exit side of a slot, around an external profile, or at the intersection of two passes. Turning may produce a feather edge at a shoulder or groove. Reaming and countersinking change the edge condition again, sometimes removing a burr but sometimes rolling material into a new lip if tools are worn or feeds are unsuitable.
A machinist can often add a chamfer or radius directly in the program. That is usually preferable to relying on manual deburring when the geometry is important. However, a programmed feature still needs a tolerance and a clear datum relationship. “0.2 mm chamfer” may be incomplete if the angle, allowable variation, and measurement convention are not known. A general edge note may govern noncritical edges, while individual callouts govern interfaces.
Choosing Between an Edge Break, Radius, and Chamfer
The selection should start with the part’s function rather than the finishing method. The following questions are useful during design review:
| Functional concern | Usually relevant edge condition | Buyer’s design question | |---|---|---| | Operator handling or exposed perimeter | Controlled edge break or small radius | What maximum sharpness or burr height is acceptable? | | Insertion into a bore or assembly | Lead-in chamfer or radius | Does the feature need a defined entry length and angle? | | Sliding or sealing contact | Continuous radius or specified chamfer | Could a burr cut, scrape, or damage the mating part? | | Fatigue-sensitive corner | Generous controlled radius | Is the radius continuous and free from tool marks or nicks? | | Coating, plating, or paint | Edge break or radius suited to coverage | Will the corner cause thin coverage or flaking? | | Electrical contact or grounding surface | Defined, burr-free edge with protected contact zone | Which surfaces must not be rounded or coated? | | Clearance around another component | Chamfer or relief | Is material removal limited so that strength is retained? |
An edge break is often the most economical option for general handling edges. A radius is better where stress flow, sliding, or coating durability matters. A chamfer is useful where the edge has an assembly or clearance role. A sharp edge should be retained only when it is genuinely functional, such as a cutting feature, a controlled wiping contact, or a locating shoulder whose geometry is explicitly defined.
Do not apply one demanding edge requirement indiscriminately to every edge. Critical edges should be individually identified, while a general note can address noncritical edges. This reduces interpretation risk and prevents a deburring process from damaging small holes, tabs, threads, or formed details.
Practical Specification for OEM Drawings and RFQs
A robust requirement answers five questions: where does it apply, what geometry is required, what variation is allowed, what defects are prohibited, and how will acceptance be verified?
For a general requirement, an OEM drawing might state that all unspecified edges must be free from harmful burrs and sharp projections, with a defined maximum edge break. The exact value should be selected by the design authority from the part’s scale, material, and function; it should not be copied from a generic template. For critical edges, use a local callout with a radius or chamfer dimension and tolerance.
A specification should also address edge direction when relevant. A note can identify the burr side, the preferred shearing direction, or the side that must remain free of rollover. In a stamped component, this may be linked to the forming direction or assembly orientation. In a machined component, the drawing can identify the surface where tool exit must not occur.
The inspection method should match the requirement. Visual examination under defined lighting may be adequate for a general no-sharp-edge condition, but it is weak for a critical chamfer or small burr. A profile projector, optical comparator, microscope, tactile gauge, radius gauge, or coordinate measurement method may be appropriate depending on size and tolerance. The supplier and buyer should agree whether the requirement concerns maximum burr height, maximum edge break, minimum remaining material, or a functional pass-through test.
Standards can help establish drawing language, but they do not replace engineering judgment. ISO 13715 addresses indication of unspecified edges on technical product documentation, while general GPS and dimensional-tolerancing practices provide a framework for communicating measurable requirements.[1] [2] The applicable drawing standard and revision should be identified in the product documentation.
Process Options and Their Trade-Offs
Manual deburring
Manual knives, files, abrasive pads, and rotary tools are flexible and useful for prototypes, repairs, and low-volume work. They can reach complex areas that automated methods cannot. Their limitations are operator variation, inconsistent edge size, and the possibility of overworking a feature. Manual work should not be the sole control for a narrow radius or a high-volume critical interface unless a validated method and inspection plan support it.
Tumbling and vibratory finishing
Mass finishing can remove loose burrs and soften many exposed edges efficiently. It is attractive for batches of small, robust parts. The media, cycle time, load, and part geometry affect the result. Delicate tabs may bend, corners may become too round, and threaded or precision features may collect media or experience dimensional change. Parts that must remain cosmetically distinct from one another may also require careful separation and cleaning.
Brushing, belt finishing, and abrasive finishing
Abrasive systems can provide a directional, controlled treatment on accessible edges. They are often useful for sheet-metal profiles and machined exterior surfaces. Access remains the governing limitation: an internal slot or intersecting hole may not receive the same treatment as an outside perimeter. Abrasive residue and changes to surface texture should be considered before plating, painting, bonding, or sealing.
In-process tool control
The most repeatable solution is often to reduce burr formation through appropriate punch condition, die maintenance, cutting tools, toolpaths, feeds, and exit strategies. This does not eliminate the need for post-processing, but it can reduce the severity and variability of the burr. A supplier’s process plan should identify how tool wear is monitored and how edge condition is checked after setup changes or tool replacement.
Common Failure Modes and Trade-Offs
One common failure is using “deburr all edges” without defining the outcome. A supplier may remove the obvious burr while leaving a small raised lip inside a hole, or may remove so much material that a locating edge no longer meets its intended geometry. Another failure is specifying a very small radius on a thin stamped part without considering punch and die capability. The result may be a nominally attractive drawing that requires unstable manual rework.
Over-deburring is as real a defect as under-deburring. Excessive abrasion can reduce a flange, enlarge a hole entrance, expose a softer substrate, round a sealing land, or alter the seating of a washer. On plated or coated parts, aggressive finishing can damage the protective layer or create an edge profile that receives uneven coverage.
A further problem occurs when the burr direction is ignored during assembly design. A part may pass a visual inspection but still scrape a mating component because the burr faces the insertion path. The same part may be acceptable when flipped, which is why assembly orientation and edge direction should be reviewed together.
Finally, buyers sometimes compare quotations based only on the base forming or machining operation and discover later that a critical edge requirement requires a separate operation, fixturing, washing, and inspection. The edge condition belongs in the initial manufacturability and cost discussion, not as an afterthought after the supplier has quoted.
RFQ and Pre-Production Checklist
Before requesting a quotation, the OEM team should confirm the following:
- Identify every edge that affects safety, sealing, insertion, sliding, fatigue, electrical contact, appearance, or coating performance.
- Separate critical edge callouts from a general requirement for unspecified edges.
- State whether the requirement is a radius, chamfer, edge break, maximum burr, or functional condition.
- Define angle, width, radius, or maximum projection where geometry matters.
- Indicate burr direction or the side that must remain protected when part orientation is important.
- Mark surfaces that must remain sharp, dimensionally intact, uncoated, or free of abrasive contact.
- Ask the supplier to identify the proposed deburring or edge-finishing process in the quotation.
- Confirm how internal holes, slots, cross-drilled features, threads, and recessed areas will be treated.
- Agree on the inspection method, sampling approach, lighting or magnification, and acceptance records.
- Request first-article evidence showing representative critical edges before releasing volume production.
At pre-production review, compare the supplier’s process flow with the drawing. Verify that edge finishing occurs at the correct stage relative to bending, heat treatment, washing, plating, painting, and assembly. A late finishing operation may remove a coating or change a formed edge, while an early operation may be partly undone by a subsequent forming step.
Conclusion
Burrs, radii, chamfers, and edge breaks are small features with system-level consequences. The right condition depends on what the edge must do, how the part will be made, and how acceptance will be demonstrated. For stamped parts, review shear direction, clearance, tool wear, and secondary finishing. For machined parts, review tool exit, intersecting features, accessibility, and programmed edge geometry.
An OEM specification becomes stronger when it distinguishes functional edges from general handling edges, uses measurable language, and discusses the finishing process before quotation. That approach gives suppliers room to choose a capable method while giving buyers a clear basis for inspection. The result is not the smoothest edge at any cost; it is the most appropriate, repeatable edge for the part’s function and production route.
References
[1]: https://www.iso.org/standard/25033.html "ISO 13715:2017, Technical product documentation — Edges of undefined shape" [2]: https://www.iso.org/standard/62085.html "ISO 1101:2017, Geometrical tolerancing"
