Executive summary

Metal hinges and pivot parts are interfaces between structure and motion. They must carry load, guide rotation, preserve alignment, tolerate assembly variation, and often survive repeated cycling in environments that include moisture, dust, vibration, or cleaning chemicals. Although a hinge may consist of only leaves, a pin, and a few holes, a small error in any one feature can create excessive play, binding, noise, accelerated wear, or difficult installation.

For an international OEM buyer, the right manufacturing route is not selected from a process name alone. It is selected from the part’s load path, annual volume, material, thickness, geometry, cosmetic requirements, expected cycle life, joining method, and inspection strategy. Progressive stamping is frequently efficient for repeatable sheet-metal leaves and brackets at established volumes. Laser cutting, turret punching, press-brake forming, and machining can be more suitable for prototypes, lower volumes, thick sections, or rapidly changing designs. A hybrid approach may combine stamped leaves with a machined or turned pin, formed knuckles, welded reinforcement, or a purchased bushing.

The most reliable programs begin with a functional definition rather than a generic request for a “custom hinge.” The drawing should identify the axis, supported load, opening angle, installation orientation, allowable movement, materials, finish, joining method, and acceptance criteria. Manufacturing details should then be developed with the supplier before tooling is released.

Start with the motion and load path

A hinge or pivot should first be understood as a mechanical system. The leaves, brackets, knuckles, pin, bushings, fasteners, and mating structures share the load. The sheet itself may be adequate while the pin bends, a fastener hole elongates, a welded joint cracks, or a thin knuckle collapses locally. Review the complete assembly, not only the isolated component.

The primary loads may include radial force perpendicular to the pin, axial force along the pin, moment caused by an offset center of gravity, and repeated impact at an end stop. A door, access panel, seat frame, enclosure cover, or equipment guard may experience different combinations during opening, closing, transport, and misuse. The buyer should communicate the design load and the likely peak or abuse condition separately. A part that is acceptable under slow static loading may be unsuitable when a panel is dropped or slammed.

Axis location is equally important. A hinge line that is not parallel to the mating structure can produce side loading and binding. Hole position, knuckle concentricity, bend angle, and mounting-face flatness all contribute to axis accuracy. If the hinge is part of a large assembly, specify which dimensions control the functional axis and which dimensions may float within a wider manufacturing tolerance.

A useful requirement is not merely “smooth rotation,” but a measurable condition such as permitted radial play, maximum starting torque, acceptable torque range after a defined number of cycles, or a specified opening-angle stop. The exact test method should match the product’s use and be agreed before production samples are evaluated.

Choosing stamping, fabrication, or a hybrid route

Process selection should balance repeatability, tooling investment, flexibility, and feature capability. The following comparison is a starting point rather than a substitute for a supplier’s process review.

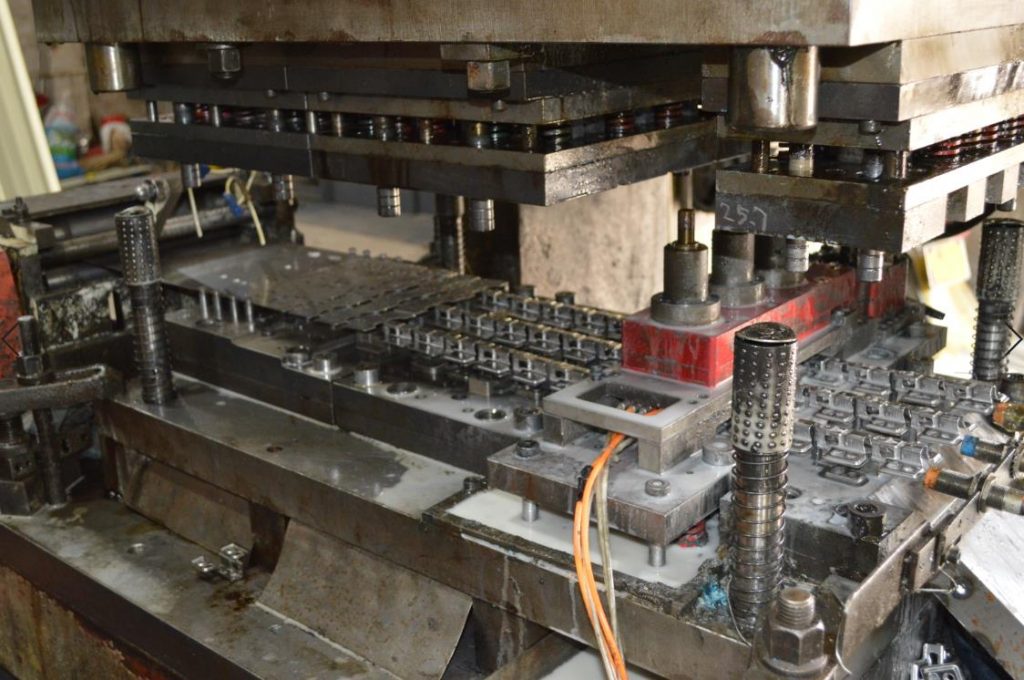

| Manufacturing route | Typical advantage | Main consideration for OEM buyers | |---|---|---| | Progressive stamping | High repeatability and efficient production of recurring sheet-metal features | Dedicated tooling, strip layout, and material utilization require early design commitment | | Transfer or single-hit stamping | Useful for deeper forms, larger parts, or multiple forming operations | Handling and die design can affect cost, springback, and part-to-part consistency | | Laser cutting and press-brake forming | Fast design changes and economical prototypes or lower volumes | Secondary operations and manual handling may increase variation at higher volumes | | Turret punching and forming | Efficient for hole patterns, louvers, and standard sheet features | Tool access, edge conditions, and feature spacing must be checked | | Machining or turned components | Strong control of pins, bushings, bores, and thick pivot bodies | Material removal, cycle time, and raw-stock cost can be significant | | Hybrid fabrication | Combines a formed leaf or bracket with a separate precision pivot element | Joining, alignment, and post-assembly inspection become critical |

For a stamped hinge leaf, the blanking pattern should leave enough material around mounting holes and formed knuckles to resist tear-out and distortion. Holes placed too close to an edge can weaken the joint or create burr-related assembly problems. Closely spaced features can also interfere with punch strength, die clearance, or material flow.

Fabrication is often preferable when the design is still evolving, demand is uncertain, or the component is too large for a practical progressive die. It can also simplify variants that share a bracket shape but differ in hole locations. However, laser-cut and press-brake parts may require more deburring, bending fixtures, or manual alignment. That is acceptable when the assembly and inspection plan control the resulting variation.

A hybrid design is common when the sheet component provides the mounting structure and a separate pin or bushing provides the wear interface. This can improve serviceability and material selection, but it introduces interfaces that must be designed deliberately. Weld distortion, rivet upset, staking force, or press-fit interference can change the hinge axis if the sequence is not controlled.

Design details that determine manufacturability

Knuckles, barrels, and formed radii

The knuckle or barrel is the most motion-sensitive region of a sheet hinge. Its inside diameter, wall thickness, length, end condition, and relationship to the leaf determine how the pin fits and how the load is distributed. A tight bend radius may increase cracking risk, especially in a hard or less ductile material and across an unfavorable grain direction. A larger radius may improve formability but consume space or alter the finished axis.

The drawing should distinguish the functional bore or pin fit from nonfunctional external surfaces. If the barrel is formed around a mandrel, state whether the internal diameter is controlled by the tool, a reaming operation, a bushing, or the pin itself. Do not assume that a nominal sheet thickness automatically defines the final bore. Springback, coating thickness, burrs, and local flattening can all affect fit.

Holes, slots, and mounting interfaces

Mounting holes should reflect how the product is assembled. Round holes locate a part; slots accommodate adjustment or stack-up. If slots are used, specify their orientation and the intended adjustment direction. Countersinks, extruded holes, clinch features, and captive hardware should be included in the process discussion because they may require different tooling or secondary operations.

Hole size and position should be tied to function. A hinge with loose mounting holes may be easy to install but can shift under load. A very tight pattern may improve location but make the assembly sensitive to tolerance accumulation. Consider datums on the mating structure and define whether the hinge is located by a pilot feature, fastener pattern, weld fixture, or a combination.

Springback, flatness, and burr direction

Formed sheet parts rarely emerge from a press with perfectly theoretical angles. Elastic recovery after bending depends on material, thickness, bend radius, tooling, and forming direction. A supplier may compensate the tool, add a restrike operation, or use a fixture to achieve the required geometry. The drawing should identify the critical angle and axis dimensions instead of applying unnecessarily tight tolerances to every surface.

Burr direction matters when a hinge leaf contacts a mating panel, washer, seal, or operator-accessible edge. Specify an acceptable edge condition and identify surfaces where burrs are prohibited. Deburring can be tumbling, brushing, belt finishing, vibratory processing, or a controlled manual operation; each may affect small features differently.

Materials, finishes, and wear interfaces

Material selection follows the environment and load path. Low-carbon steels are widely used for formed brackets and leaves because they offer a useful balance of formability, strength, availability, and cost. Stainless steels may be selected for corrosion resistance or appearance, but grade, temper, surface condition, and forming behavior must be considered together. Aluminum can reduce mass, while copper alloys may be appropriate for specific wear, conductivity, or corrosion requirements. The pin and bushing do not necessarily need the same material as the leaves.

Protective finishes should be specified by performance need rather than color alone. Plating, conversion coatings, organic coatings, stainless passivation, paint, and powder coating each influence corrosion behavior, dimensional build, friction, and appearance. A coating on a pin or bore can change running clearance. Coated mating surfaces can also increase initial torque or produce debris during early cycling. If the hinge will be assembled before finishing, mask areas that must remain conductive, bonded, or dimensionally controlled.

For a dry pivot, material pairing and surface condition are central to wear. A bushing can provide a replaceable interface and reduce dependence on the sheet barrel’s surface finish. Lubrication may improve life, but it also attracts contamination and can be incompatible with seals, plastics, food-contact environments, or customer cleaning processes. Specify lubricant type, application location, and whether the part must operate without field lubrication.

Common failure modes and trade-offs

**Binding** usually points to axis misalignment, excessive coating build, distorted knuckles, a bent pin, or insufficient clearance for the assembly stack. Increasing clearance may solve binding but can create unacceptable play. The better response is to identify the source of misalignment and control the critical interfaces.

**Hole elongation or leaf deformation** can result from high local bearing stress, thin material, inadequate washer area, loose fasteners, or repeated impact. Increasing thickness is one option, but a formed emboss, reinforcement, larger washer, different fastener, or revised load path may be more efficient.

**Knuckle cracking** is associated with unsuitable material condition, small forming radius, excessive reduction, poor lubrication, or an unfavorable forming sequence. A prototype bend test and sectioned sample can reveal whether the issue is material-related or tool-related before production tooling is finalized.

**Excessive rotational play** may arise from an oversized bore, undersized pin, short bearing length, uneven knuckle engagement, or wear in a soft material. Tightening only one dimension can create a hinge that is initially stiff but becomes loose after use. Define both initial fit and end-of-life behavior when cycle life matters.

**Noise and galling** can occur when dissimilar surfaces slide under load without suitable lubrication or surface treatment. A bushing, thrust washer, controlled finish, or revised material pairing may help. The correct solution depends on contamination, temperature, maintenance access, and whether quiet operation is a product requirement.

**Corrosion at joints** is often missed because water, debris, and dissimilar metals collect around pins, folded edges, and fasteners. Drainage, compatible materials, sealed or shielded interfaces, edge treatment, and finish coverage should be reviewed together. A coating that looks acceptable on a flat leaf may be less robust inside a formed barrel.

RFQ and pre-production checklist

Before requesting quotations, provide the supplier with the complete assembly context and identify which requirements are mandatory. A practical package should include:

  • A 3D model and controlled 2D drawing showing datums, critical dimensions, material, thickness, finish, and revision status.
  • The axis definition, opening angle, stop condition, mounting orientation, and any required adjustment direction.
  • Static, dynamic, impact, and cycle-loading assumptions, including panel mass and center-of-gravity offset where relevant.
  • Pin, bushing, washer, rivet, weld, or fastener details, including whether components are supplied separately or assembled.
  • Functional requirements for play, torque, noise, corrosion exposure, temperature, cleanliness, and service lubrication.
  • Allowed burrs, sharp edges, cosmetic zones, coating masks, and packaging conditions.
  • Expected annual volume, launch quantity, forecast variation, engineering-change expectations, and acceptable tooling ownership terms.

During design review, ask for the proposed blank layout, forming sequence, critical tooling assumptions, secondary operations, and inspection points. Confirm how the supplier will measure the axis, bore, hole pattern, flatness, and assembled motion. For a new hinge, sample approval should include dimensional inspection and practical assembly, not only visual review.

A useful pre-production plan includes first-article parts made with production-intent material and tooling, a documented revision-controlled inspection report, and an assembly trial using representative mating parts. If the hinge is safety-relevant or difficult to replace, add a defined endurance or load test that reflects the real product rather than an arbitrary laboratory condition. Agree how failures will be classified and how returned or rejected parts will be traced.

Conclusion

Custom metal hinges and pivot parts succeed when motion, load, material, forming, joining, finish, and inspection are treated as one design problem. Stamping can provide strong repeatability and efficient output for stable, recurring sheet-metal designs, while flexible fabrication and machining support prototypes, lower volumes, thick sections, and evolving products. Hybrid construction can provide a practical wear interface, but only when assembly alignment and process sequence are controlled.

For OEM procurement, the most valuable early decision is to define the functional axis and the complete load path. Once those are clear, a supplier can recommend a realistic process, tooling strategy, tolerance scheme, and inspection method. A well-prepared RFQ reduces avoidable iteration, makes quotations more comparable, and gives production teams measurable criteria for approving a hinge that fits, moves, and remains reliable in the finished product.

References

[1]: https://www.iso.org/standard/63549.html "ISO 2768-1: General tolerances" [2]: https://www.astm.org/a0368_a0368m-21.html "ASTM A368: Stainless and Heat-Resisting Steel Wire and Wire Products" [3]: https://www.asme.org/codes-standards/find-codes-standards/y14-5-dimensioning-tolerancing "ASME Y14.5: Dimensioning and Tolerancing"
