Executive Summary
Metal brackets and mounting plates are often treated as low-risk commodity parts because they contain few features and are usually made from sheet or plate. In an OEM assembly, however, a bracket can determine alignment, carry vibration loads, protect cables, locate a subassembly, or transfer forces into a frame. A small error in a hole pattern or bend angle may create much larger problems during final assembly. The right sourcing decision therefore begins with function, not with a preferred machine or the lowest quoted piece price.
A robust specification connects the load path, datum scheme, material, thickness, bend geometry, holes, finish, and inspection method. Laser cutting, punching, press-brake forming, machining, stamping, and welding can all be appropriate, but each route has different implications for volume, repeatability, tooling, edge condition, and geometric control. Buyers should compare quotations only after suppliers are working from the same revision and understand which dimensions are function-critical.
This guide presents a practical framework for designing and purchasing custom brackets and mounting plates. It focuses on generally applicable manufacturing principles rather than a single material, process, or supplier capability.
Start With the Function and Load Path
The first design question is not “How thick should the plate be?” It is “How will the part carry force?” A flat mounting plate may distribute a load across a chassis, while an angle bracket may transfer shear through a vertical leg and tension through fasteners. A gusset may reduce flexing, but it can also interfere with tools, cables, weld access, or cleaning. Understanding the load path helps the designer place material where it contributes to stiffness instead of adding weight indiscriminately.
Document the principal loads, their direction, the number and spacing of fasteners, and whether the load is static, cyclic, shock-related, or installation-induced. Vibration and repeated loading deserve special attention because a bracket that survives a single overload may still develop fatigue cracks at a bend, weld toe, sharp internal corner, or hole edge. Where analysis is required, the supplier should receive the governing load cases and boundary assumptions rather than being asked to infer them from a drawing.
Fastener behavior is part of bracket design. A hole that is too close to an edge can weaken the net section or cause distortion during punching and forming. A clearance hole, tapped hole, captive nut, weld nut, or PEM-style insert each changes the assembly sequence and the local load transfer. If a mounting plate is intended to float for adjustment, that requirement should be expressed through slots, datum references, or a defined adjustment range—not through an ambiguous oversized hole.
Define Datums, Tolerances, and Critical Interfaces
A useful drawing separates functional requirements from ordinary dimensions. Identify the surfaces and holes that locate the part in the next assembly, then establish a datum scheme that reflects how the part is actually held and measured. A flat plate may use one mounting face and two locating holes as primary references. A formed bracket may need the inside or outside bend surface, depending on which face contacts the mating component.
Avoid applying a tight general tolerance to every feature. It increases manufacturing and inspection effort without necessarily improving assembly performance. Instead, call out the hole-to-hole relationship, mounting height, bend-to-hole distance, or flatness that truly affects fit. General tolerancing systems such as ISO 2768 can provide a framework, but the selected class must match the process and the part’s functional need [1]. A supplier should be able to explain how the proposed process will achieve a critical tolerance consistently.
Bend angles require practical interpretation. A nominal 90-degree bend is influenced by material thickness, temper, grain direction, tooling, springback, and whether the drawing controls the inside or outside intersection. For a formed part, define the inspection condition and the relevant leg dimensions. If two faces must be parallel or perpendicular after forming, state that relationship directly. Do not expect a collection of unconstrained linear dimensions to communicate the required geometry.
Flatness is similarly process-dependent. Cutting a large, thin plate can release residual stress and produce bowing. Punching may leave local distortion, while welding can introduce shrinkage. If a plate must sit against a gasket, heat sink, or precision frame, specify the usable contact area and flatness requirement rather than simply labeling the whole part “flat.”
Select the Manufacturing Route by Volume and Geometry
For prototypes and low-volume production, laser cutting followed by press-brake forming is often flexible because it avoids hard tooling and supports quick design changes. It suits brackets with varied hole patterns, moderate thickness, and relatively open forms. The buyer should still ask about heat-affected edges, dross, minimum feature size, bend sequencing, and the supplier’s method for compensating springback.
CNC punching can be efficient for repeated flat patterns with many standard holes, louvers, or nibs. It may provide good repeatability and fast cycle times, but tool access, minimum hole-to-thickness relationships, and witness marks must be considered. A punched edge can differ from a laser-cut edge in burr direction and rollover. If the part is handled, sealed, or assembled near wiring, the deburring requirement should be explicit.

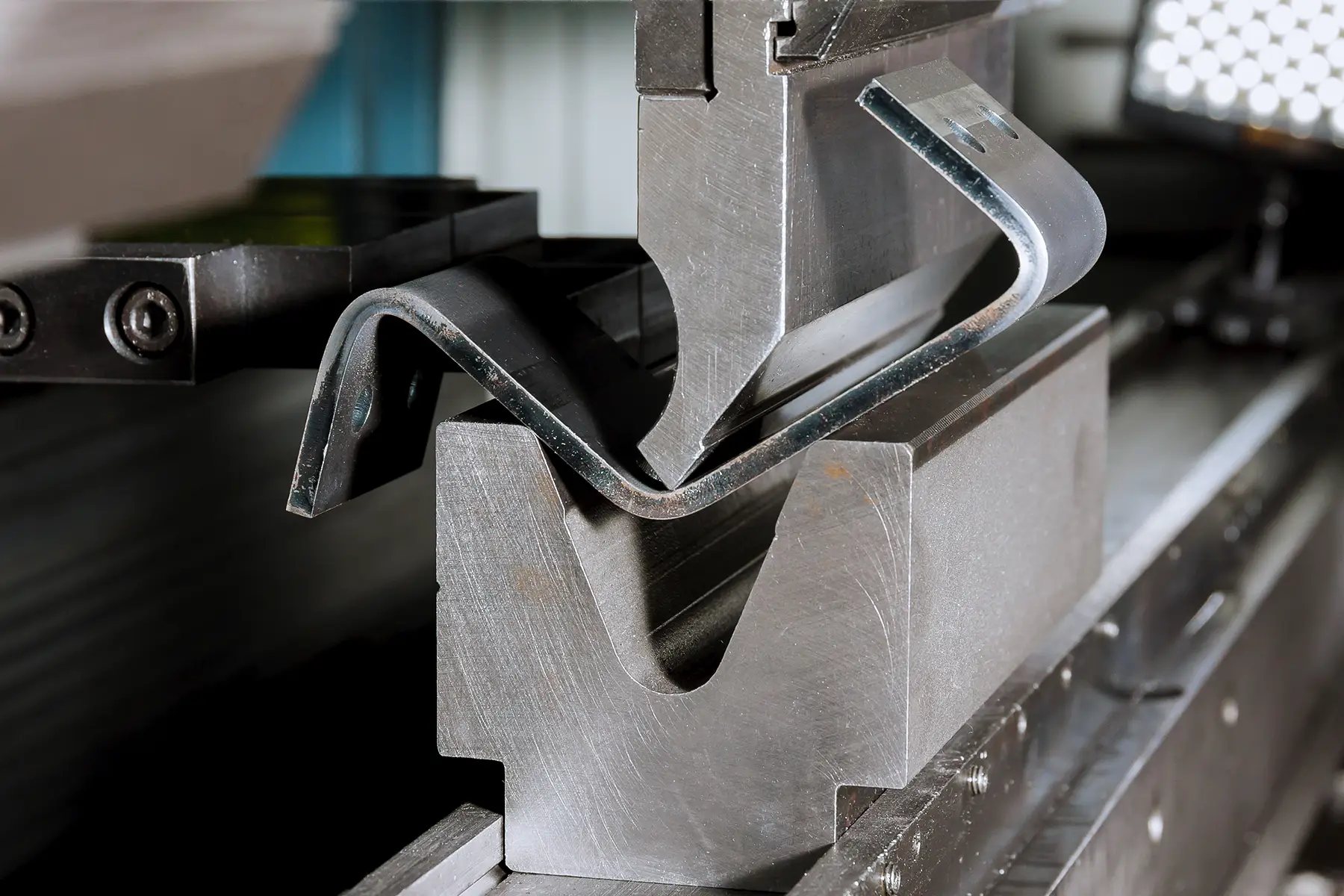

Press-brake forming is appropriate when a flat blank becomes a load-bearing three-dimensional component. The design should allow adequate bend relief at corners and avoid placing holes so close to a bend that they elongate or distort. Bend relief also reduces tearing and uncontrolled corner deformation. Grain direction can matter in some materials and thicknesses, particularly where a tight bend and high ductility are required; the supplier can recommend orientation when the drawing identifies the bend performance requirement.
Progressive stamping becomes attractive when annual volume justifies dedicated tooling and the part geometry is stable. It can deliver high throughput and consistent repeatability, but the tooling cost, maintenance, strip layout, material utilization, and engineering lead time must be evaluated over the expected life of the program. A stamped bracket may also need secondary tapping, forming, hardware insertion, or plating.
Machining is useful for thick plates, deep pockets, precision datums, or geometries that cannot be formed economically. It generally removes more material and may have a higher unit cost than sheet fabrication, but it can simplify control of critical surfaces. Welding or riveting can join multiple pieces when a one-piece formed solution is impractical. These methods introduce joint design, distortion, access, and inspection considerations; a weld symbol without a defined acceptance expectation is not a complete production requirement.
| Requirement | Questions for process selection | |---|---| | Annual volume | Is dedicated stamping or tooling justified, or is flexible fabrication preferable? | | Thickness and strength | Can the material be formed without cracking, or is machining or welding more appropriate? | | Geometry | Are bends, gussets, inserts, slots, or deep features required? | | Surface condition | Will heat tint, tool marks, burrs, or weld discoloration be visible or functional? | | Change risk | How likely are design revisions during launch and service life? |
Choose Material and Finish as a System
Common bracket materials include carbon steel, stainless steel, aluminum alloys, and galvanized or pre-coated sheet. Selection depends on strength, stiffness, corrosion exposure, mass, electrical behavior, temperature, joining method, and appearance. “Stronger” does not automatically mean “better”: a higher-strength grade may be harder to form, more sensitive to bend radius, or less convenient to weld.
Material thickness affects stiffness strongly, but geometry often affects stiffness more efficiently. Adding a flange, return, bead, or gusset can increase section stiffness without the same mass increase as simply using thicker material. The designer should confirm that the chosen feature remains manufacturable and does not block assembly access. For steel sheet, the procurement specification should identify the grade, thickness range, surface condition, and applicable material standard; ASTM A1008 is one example of a standard covering certain cold-rolled carbon steel sheet products [2].
Finishing should be specified according to the environment and handling requirements. Options may include deburring only, powder coating, wet paint, electroplating, zinc flake, anodizing, passivation, or conversion coating. Each has effects on thickness, masking, threaded features, edge coverage, color consistency, and corrosion behavior. Stainless steel passivation, for example, is a chemical treatment with defined process considerations rather than a decorative paint substitute; ASTM A967 provides requirements for chemical passivation treatments for stainless steel parts [3].
State whether the finish applies before or after hardware insertion and whether coating must be removed from grounding, press-fit, or bonding surfaces. Define protected areas, acceptable cosmetic variation, and the inspection method. A finish callout that names only a color is insufficient for a demanding outdoor or industrial application.
Practical DFM Details That Prevent Rework
Design holes with the cutting and forming route in mind. Tiny holes relative to sheet thickness can be difficult to cut cleanly and may be unsuitable for punching. Slots need adequate end radii to avoid stress concentration and tool limitations. Countersinks, counterbores, and tapped holes should be included only where they provide a clear assembly benefit, because they add operations and inspection points.
Control sharp edges deliberately. A general deburr note may be suitable for ordinary handling, but parts near seals, cables, operators, or sliding components may need a defined edge break or edge radius. If the bracket will be powder coated, excessive sharpness can also reduce coating coverage at edges. Conversely, an unspecified large radius may interfere with mating components.
Plan for inspection access. A supplier cannot reliably measure a hidden bend intersection or an inaccessible underside feature with the same method used for an open surface. Add inspection datums, gauge points, or a checking fixture when the part is difficult to measure directly. For larger production volumes, a simple go/no-go fixture can be more repeatable for a hole pattern than repeated manual measurement, provided the fixture itself is controlled.
Consider nesting and material utilization without weakening the part. A low scrap rate is valuable, but rotating blanks or sharing a nest can change grain direction, edge orientation, or cosmetic exposure. Ask the supplier to identify any proposed material substitution or thickness change before implementation. “Equivalent” materials are not automatically equivalent in forming response, coating compatibility, or corrosion performance.
Common Failure Modes and Trade-Offs
One frequent failure is a bracket that fits the drawing in isolation but cannot be assembled because the fastener tool has no access. Another is a hole pattern that is dimensioned from unrelated edges, allowing accumulated tolerance to move the functional holes apart. A datum-based pattern is usually easier to manufacture, inspect, and troubleshoot.
Bend cracking can result from an unsuitable material, an overly tight inside radius, unfavorable grain orientation, or a process that does not match the grade. Springback can produce a correct blank with an incorrect final angle. These are not solved reliably by simply tightening the drawing tolerance; they require a feasible bend definition and process validation.
Welded brackets may warp, lose coating protection near the joint, or contain spatter that affects assembly. Mechanical fastening can avoid some heat distortion but may require overlapping flanges, access for tools, and control of joint slip. A one-piece formed bracket may be stiffer and cleaner, yet it can require larger blank size, more complex tooling, or difficult bend sequencing.
Cost trade-offs also appear in finishing. A low-cost coating may be adequate indoors but unsuitable for salt, moisture, chemicals, or UV exposure. Conversely, an expensive finish applied to hidden surfaces may add cost without improving performance. The correct comparison considers the complete lifecycle requirement, including masking, rework, packaging, and field corrosion risk.
RFQ and Pre-Production Checklist
An effective RFQ lets suppliers quote the same technical scope. Provide the released 2D drawing, native 3D model where relevant, revision level, annual and batch quantities, forecast horizon, prototype expectations, packaging requirements, and delivery location. State whether the quotation should include tooling, fixtures, first-article inspection, samples, secondary operations, and freight separately.
Before placing an order, confirm the following:
- Material grade, thickness, temper, and allowed substitutions are defined.
- Critical datums, hole relationships, bend angles, flatness, and edge requirements are identified.
- Finish, masking, corrosion expectation, cosmetic zones, and post-finish dimensions are clear.
- Hardware, welds, threads, inserts, and installation sequence are specified.
- The supplier has reviewed DFM risks and listed deviations or assumptions.
- Inspection records, material certificates, first-article samples, and traceability needs are agreed.
- Packaging prevents bending, scratching, contamination, and mixed revisions.
- Engineering-change approval and nonconformance handling are defined before production.
Ask for a process description that names the major operations in sequence. This reveals whether the supplier has understood the part and exposes hidden subcontracting, such as finishing or tapping. For a new bracket, request representative samples made with production-intent material and tooling. Inspect fit in the actual mating assembly, not only on a bench, because stack-up and fastener access often determine success.
When comparing quotes, separate recurring piece cost from one-time costs and likely secondary operations. A lower blank price can be outweighed by manual deburring, special handling, rejected finishes, or a complex inspection method. The most useful commercial comparison is a total delivered cost at the expected volume and quality level, with assumptions visible to all bidders.
Conclusion
Reliable metal brackets and mounting plates result from alignment between functional intent, design datums, material behavior, manufacturing route, finish, and inspection. OEM buyers should resist treating these parts as generic cut metal. The best specification explains the load path, protects the interfaces that matter, and leaves noncritical features flexible enough for efficient production.
A disciplined RFQ makes suppliers comparable and surfaces risk before tooling or production begins. Whether the final route is laser-cut and formed, stamped, machined, welded, or assembled from several pieces, the decision should reflect volume, geometry, performance, change risk, and total lifecycle cost. That approach improves fit, reduces avoidable rework, and gives both the OEM and manufacturer a clear basis for controlling the part throughout its production life.
References
[1]: https://www.iso.org/standard/60418.html "ISO 2768-1:1989" [2]: https://www.astm.org/a1008_a1008m-24.html "ASTM A1008/A1008M Standard Specification" [3]: https://www.astm.org/a0967_a0967m-25.html "ASTM A967/A967M Standard Specification"
