Executive Summary
A metal sub-assembly is the point where individual fabricated parts become a functional manufacturing unit. It may contain laser-cut sheet, machined blocks, formed brackets, turned pins, weldments, fasteners, seals, and purchased hardware. For an OEM buyer, the central sourcing question is not simply whether a supplier can make each component. It is whether the supplier can control the complete route from incoming material to a verified, protected, and correctly documented assembly.
The most reliable route is planned before quoting. Engineering and procurement should define the assembly’s function, interfaces, joining method, critical characteristics, inspection evidence, and delivery condition. The supplier can then select suitable processes, establish an order of operations, identify fixtures, and separate characteristics that need 100 percent verification from those suitable for sampling. This approach reduces late clarification, rework, hidden labor, and disputes over what “complete” means.
Start with the Assembly Function, Not the Part List
A parts list describes contents; it does not fully describe an assembly. Begin with the job the sub-assembly performs in the larger product. Does it carry load, locate another module, contain fluid, shield electronics, guide motion, dissipate heat, or provide a repeatable mounting interface? Function determines which dimensions and conditions deserve priority.

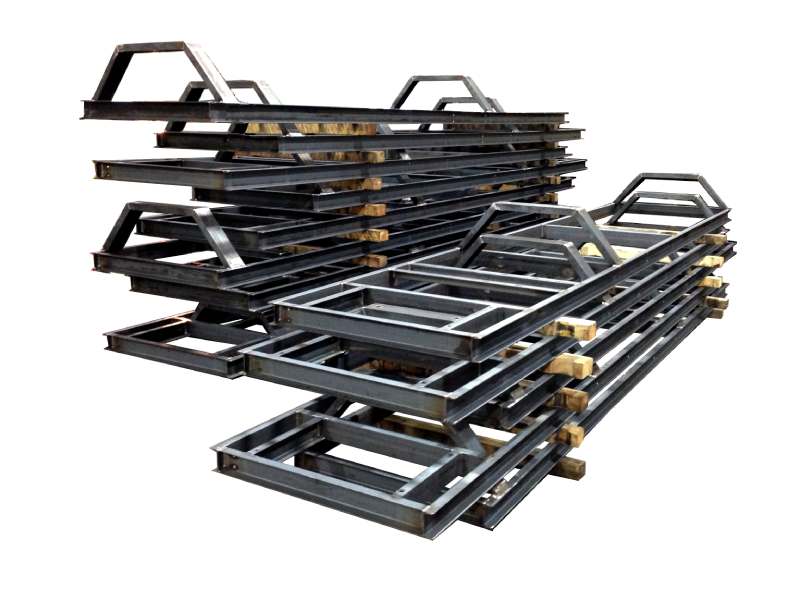

For example, a welded frame may have many noncritical exterior dimensions but only a few important datums that control installation. A bracket may tolerate cosmetic weld discoloration while requiring a precise hole pattern. A machined-and-fastened manifold may need clean passages and leak integrity more than a particular surface appearance. Without this hierarchy, suppliers may spend effort on visible features while missing the characteristics that affect assembly at the OEM plant.
The released package should identify the assembly drawing, individual part drawings, bill of materials, revision status, joining specifications, and any applicable process notes. It should also state whether the supplier is responsible for sourcing standard hardware, applying finish, performing final cleaning, or packing the completed unit. Ambiguity at this stage becomes a commercial and technical variable later.
Define Interfaces and Datums
Interfaces deserve a common language between the OEM and supplier. Identify mounting faces, locating holes, shaft centers, connector positions, sealing surfaces, keep-out zones, and access requirements for tools. Establish the primary, secondary, and tertiary datums where appropriate, then dimension functional features from those references rather than from unrelated edges.
A useful review asks how the sub-assembly will be located during its own manufacture and how it will be located in the next assembly. Those two conditions may differ. A fixture datum that is convenient for welding can introduce an offset relative to the final installation datum. The route should therefore include a controlled transfer of reference, with a measurement method capable of verifying the final interface.
Select the Manufacturing Route as a System
The best route combines processes rather than choosing one process in isolation. Sheet components may be laser cut or punched, bent on a press brake, deburred, and then welded or fastened. Solid components may be sawed, milled, turned, drilled, treated, and inspected before integration. Tubular structures may require cutting, coping, forming, tack assembly, welding, straightening, and coating.
Process selection depends on material, geometry, volume, accuracy, appearance, available equipment, joining access, and downstream risk. Laser cutting can be flexible for varied profiles and low-to-medium volumes, while dedicated stamping tools may become attractive for stable, higher-volume shapes. CNC machining is useful for controlled interfaces and complex three-dimensional features, but removing unnecessary stock can add cost and cycle time. Forming can reduce part count, yet springback and bend sequencing must be managed.
The route should preserve the features that matter. A supplier may cut holes before forming when the pattern is stable and accessible, or machine a locating feature after welding when distortion could move it. A threaded hole might be produced before coating, while a final reaming operation may be reserved for a joined condition. These are not universal rules; they are decisions based on how each operation changes the next operation’s reference and access.
| Route decision | Main question for the OEM team | Typical control concern | |---|---|---| | Part consolidation | Can fewer pieces reduce joints without harming serviceability? | Formability, repair access, and inspection access | | Cut and form sequence | Will forming move a critical hole or edge? | Springback, bend allowance, and feature location | | Pre- or post-machining | Is the critical feature stable before joining? | Weld distortion, clamping, and datum transfer | | Joining method | What load, heat, access, and appearance are acceptable? | Penetration, alignment, fastener preload, or adhesive cure | | Finish timing | Which surfaces must remain uncoated until final fit? | Masking, coating thickness, grounding, and corrosion protection |
Plan Joining and Assembly Operations Deliberately
Joining is often the largest source of variation because it changes both geometry and material condition. Welding introduces localized heat and contraction. Mechanical fastening can pull parts into alignment but may also distort thin sheet or damage finish. Riveting, clinching, brazing, soldering, and structural adhesives each impose their own requirements for access, surface preparation, tooling, and verification.
A good weld route specifies joint type, accessible sides, tack sequence, weld sequence, and any required distortion-control method. Parts should be designed with realistic joint access and enough clearance for the torch, electrode, gun, or inspection tool. If a weld is called out but cannot be visually or physically accessed after another component is installed, the drawing and route are in conflict.
Tack welding is not merely temporary work. Tack locations, fit-up, and sequence influence final alignment. Fixtures should locate parts without overconstraining them, and clamps should hold functional datums while allowing predictable thermal movement. When the assembly is large or asymmetric, the supplier may need a staged sequence with interim checks rather than one uninterrupted weld cycle.
For bolted joints, the specification should distinguish clearance holes, tapped holes, inserts, captive nuts, and torque-critical fasteners. State whether torque values, locking features, or witness marks are required. If a joint depends on friction, clamping force, or a defined stack-up, the supplier needs the correct fastener grade, washer arrangement, surface condition, and tightening method. “Assemble with bolts” is not enough for a joint that affects safety, alignment, or sealing.
Make Inspection Fit the Risk
Inspection should verify function and process control, not generate paperwork without purpose. Divide characteristics into critical, significant, and general categories. Critical characteristics may include a sealing face, safety load path, alignment axis, electrical bonding point, or interface pattern. Significant characteristics may affect fit or performance but allow a wider operating range. General features can usually be checked through normal process inspection and visual review.
The measurement method must match the requirement. A caliper may be suitable for a noncritical outside dimension but not for a positional relationship between multiple datums. A coordinate measuring machine, gauge fixture, height gauge, torque tool, leak test, or functional mating check may be more appropriate depending on the feature. The inspection plan should identify the instrument or method, sampling frequency, acceptance condition, and record retained.
For a multi-part assembly, inspect at meaningful gates. Verify incoming material and purchased hardware before use. Check cut and formed parts before joining when correction is still practical. Confirm tack-fit and key datums before completing welds. Perform final dimensional, visual, functional, and cleanliness checks after finishing. This sequence catches errors when they are cheaper to correct than at final shipment.
Documentation should be agreed in the RFQ rather than requested unexpectedly after production. Depending on risk, the package may include material certificates, coating or treatment records, weld maps, dimensional reports, torque records, nonconformance approvals, photographs of hidden areas, and a certificate of conformity. Requirements should be proportionate to application risk and should identify the revision to which the records apply.
Account for Finish, Cleaning, and Packaging
Finishing is part of the manufacturing route because it changes dimensions, conductivity, corrosion behavior, and appearance. Powder coating, wet paint, plating, anodizing, passivation, chemical conversion, and oil preservation are not interchangeable. The choice should reflect the base metal, service environment, masking needs, electrical requirements, and expected handling.
Define which surfaces may receive finish, which must remain bare, and whether coating thickness is included in a dimensional limit. Threads, bores, grounding pads, sealing faces, and sliding interfaces often require masking or post-finish treatment. Small scratches may be acceptable on a concealed surface but unacceptable on a visible panel; acceptance criteria should make that distinction explicit.
Cleaning also needs a clear endpoint. An assembly can be dimensionally correct yet fail because of chips in a cavity, weld spatter near a moving part, abrasive residue, loose fasteners, or oil on a bonding surface. State whether the unit must be dry, particle-controlled, degreased, capped, bagged, or protected with a specified preservative. Packaging should prevent metal-to-metal rubbing, deformation of projecting features, and moisture exposure during international transit.
Common Failure Modes and Trade-Offs
One recurring failure is quoting parts individually while overlooking assembly labor. The commercial offer may omit fixture preparation, deburring between operations, hardware kitting, cleaning, final inspection, or special packaging. Compare suppliers using a route-based cost breakdown that identifies purchased content, processing, joining, finishing, inspection, and logistics assumptions.
Another failure is tolerancing every feature tightly. Tight tolerances can be justified at interfaces, but applying them to all edges and cosmetic dimensions increases inspection effort and may reduce manufacturing flexibility without improving product performance. Functional tolerancing, clear datums, and explicit acceptance zones usually produce a more stable route.
Distortion is a further risk. A thin welded panel can meet individual part dimensions before joining and still produce an assembly that will not mate. The remedy may involve a better fixture, a different sequence, intermittent welds, a formed stiffener, post-weld machining, or a design change. Straightening can recover geometry, but it should be controlled and agreed because excessive force can mark surfaces or leave residual stress.
Finish-related failures include coated threads, blocked drains, poor adhesion from contamination, unmasked grounding points, and corrosion at dissimilar-metal interfaces. These problems are reduced by identifying finish-critical features on the drawing and by performing a pre-production review with the finishing supplier when the process is outsourced.
Supply-chain complexity is also a technical trade-off. A single supplier may simplify coordination, but subcontracted cutting, heat treatment, finishing, and testing can create additional handoffs. A multi-source route may improve capacity or regional resilience while increasing responsibility for configuration control. The OEM should decide which operations require direct traceability and how changes are approved.
RFQ and Pre-Production Checklist
A strong RFQ gives bidders enough information to quote the same product and route. Include the following items:
- Released assembly and part drawings, 3D models, bill of materials, and revision identifiers.
- Material grades, thicknesses, tempers, substitutions allowed, and traceability expectations.
- Functional datums, interface dimensions, key tolerances, joint requirements, and cosmetic zones.
- Joining method, weld symbols or fastening requirements, access restrictions, and post-join operations.
- Finish specification, masking areas, surface preparation, color or appearance standard, and repair limits.
- Inspection plan expectations, test requirements, sample size, retained records, and approval documents.
- Annual demand, lot size, forecast assumptions, prototype quantity, and expected production ramp.
- Packaging configuration, labels, moisture protection, pallet limits, and delivery terms.
- Supplier assumptions, exclusions, subcontracted processes, tooling charges, and engineering questions.
Before releasing production, hold a documented pre-production review. Confirm that the supplier’s process flow matches the drawing, that fixtures locate the correct datums, and that inspection equipment can reach the required features. Review first-article or pilot-unit criteria, deviation approval, change notification, and the disposition process for nonconforming material. If a hidden weld, internal cavity, or sealed joint cannot be inspected after completion, agree how it will be verified before it becomes inaccessible.
Questions Worth Asking the Supplier
Ask the supplier to identify the highest-risk operation, the features checked after that operation, and the planned response if the assembly is out of alignment. Request a marked-up drawing showing inspection points and any proposed design-for-manufacturing changes. Ask which processes are performed in-house, where outside processing occurs, and how material and revision identity are maintained across those handoffs.
It is also useful to ask what the supplier needs from the OEM to prevent delay: mating samples, master gauges, approved finish panels, torque specifications, packaging samples, or clarification of interchangeable parts. These questions reveal whether the quotation reflects an executable route rather than a nominal process list.
Conclusion
Reliable metal sub-assembly manufacturing begins with functional definition and ends with controlled delivery. The route should connect part fabrication, datum strategy, joining, finishing, inspection, documentation, and packaging into one coherent plan. OEM buyers can improve outcomes by asking suppliers to expose assumptions, identify risk gates, and quote the complete delivered condition rather than isolated operations.
The objective is not maximum process complexity or the tightest possible drawing. It is a repeatable assembly that fits, performs, survives handling, and can be verified at a sensible cost. Clear interfaces, proportionate controls, early fixture review, and disciplined configuration management give both the manufacturer and the OEM a practical foundation for production decisions.
