Executive summary
Insert moulding places a metal component inside a polymer part during injection moulding, creating an integrated assembly rather than joining two finished parts afterward. The insert may provide a thread, electrical terminal, bearing seat, reinforcement, heat path, locating feature, or structural load path. The process can reduce assembly operations and improve repeatability, but it also introduces a demanding interface between metal, plastic, tooling, and thermal processing.
For an OEM buyer, the central question is not simply whether a metal insert can be encapsulated. It is whether the complete part can be moulded, ejected, inspected, assembled, and used without damaging the insert or generating unacceptable stress in the polymer. A robust specification therefore addresses insert preparation, retention, resin selection, mould architecture, loading method, critical dimensions, inspection, and validation together.
The best projects begin with a cross-functional design review. Product engineering defines the loads, electrical requirements, environment, and service life. The moulder assesses flow, cooling, venting, insert placement, and automation. The metal-part supplier confirms achievable geometry, surface condition, and material traceability. Treating these as separate decisions often creates late changes, expensive tooling revisions, or quality disputes.
How the process works
Insert preparation and loading
Metal inserts can be stamped, machined, formed, cast, sintered, or purchased as standard hardware. Before moulding, they must be clean, dimensionally stable, and free from oil, loose scale, burrs, or corrosion products that could interfere with bonding or sealing. Depending on the application, preparation may include degreasing, washing, abrasive treatment, plating, conversion coating, or application of a primer. The appropriate treatment depends on the resin, exposure conditions, and whether the interface must carry mechanical load or only prevent movement.

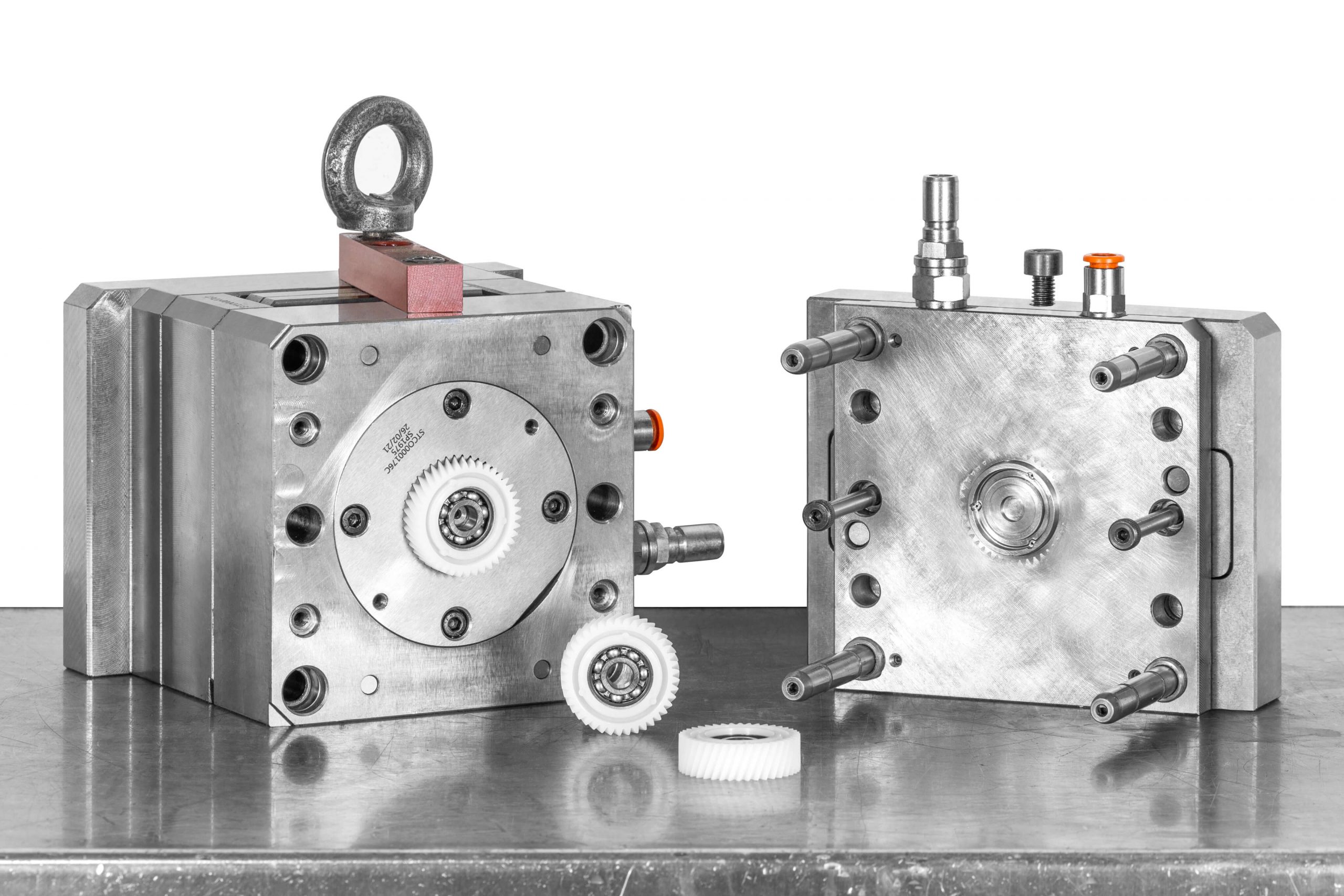

The inserts are then placed into the mould manually, with a pick-and-place system, or through a dedicated loading fixture. Location is controlled by pins, pockets, shoulders, magnets, vacuum, clamps, or a combination of these features. The mould must support the insert against injection pressure without distorting thin sections or marking functional surfaces. A locating feature should position the insert positively; relying only on friction or a loose cavity fit makes variation more likely.
Filling, packing, cooling, and ejection
When molten polymer enters the cavity, it flows around the insert and may exert significant force on it. The gate location and flow direction should be selected so that the insert is not pushed away from its datum or rotated. Flow fronts meeting around an insert can also create weld lines, air traps, or uneven packing. Vents must allow displaced air to escape, especially in narrow pockets and at the ends of encapsulated features.
Packing pressure compensates for material shrinkage while the polymer solidifies. Excessive pressure can increase residual stress around the insert, while insufficient packing can leave voids, sink, or poor dimensional control. Cooling is equally important because metal usually conducts heat differently from the surrounding resin. A large insert may create a local hot spot or a rapid cooling zone, producing differential shrinkage and stress.
Ejection requires careful planning. Ejector pins should act on sufficiently rigid polymer areas, not on unsupported thin walls or exposed insert edges. If the mould grips the insert too strongly, ejection can pull the insert out or crack the part. If the insert has a threaded bore, the toolmaker must also consider whether it is protected from flash and whether post-mould cleaning or thread gauging is required.
Design decisions that determine reliability
Define the insert’s real function
The insert should be classified by its primary function: fastening, conduction, alignment, reinforcement, heat transfer, sealing, or wear resistance. Each function changes the design priorities. A threaded brass insert in a plastic housing needs reliable torque and pull-out resistance. A stamped electrical terminal needs controlled position, adequate creepage and clearance, and a surface compatible with the joining process. A steel reinforcement may need to transfer bending loads without creating a sharp stress concentration in the polymer.
The drawing should identify which metal dimensions are critical after moulding and which may vary within the insert supplier’s normal process capability. It should also distinguish exposed, partially encapsulated, and fully encapsulated surfaces. This prevents a common problem in which a supplier meets the overall part drawing but interprets the insert’s functional position differently.
Use geometry that helps the polymer retain the metal
Smooth cylindrical inserts can rely heavily on polymer shrinkage and friction, but these mechanisms may be insufficient under repeated torque, vibration, thermal cycling, or moisture exposure. Knurls, grooves, flats, holes, undercuts, and enlarged shoulders can provide mechanical interlock. They must be designed so that resin can fill the feature and air can escape without creating fragile thin ligaments.
Mechanical interlock is not automatically better. Deep undercuts may complicate mould release, require slides, trap air, or increase tooling cost. Sharp grooves can concentrate stress in the polymer. A practical design uses the simplest retention geometry that meets the tested load requirement and remains compatible with the intended mould-opening direction.
Metal corners should generally be radiused where space permits. A sharp metal edge can cut or split the polymer during cooling, assembly, or service. Similarly, a sudden change from a thick encapsulated boss to a thin wall can produce sink or warpage. Uniform polymer thickness around the insert is desirable, but it must be balanced against the need for sufficient cover, electrical insulation, and structural support.
Control thermal and chemical compatibility
Metal and polymer expand at different rates. Temperature changes can therefore generate interface stress even when the part is initially sound. The risk is higher with large inserts, rigid high-temperature polymers, thin encapsulation, long exposure cycles, and designs that prevent the polymer from relieving strain. A material review should consider the full service temperature range, not only the moulding temperature.
Chemical compatibility also matters. Plating, cleaning residues, mould-release agents, adhesives, and environmental contaminants can affect adhesion, corrosion, or long-term stability. Dissimilar metals may create galvanic corrosion when moisture and an electrolyte are present. The insert specification should identify the base metal and surface finish, while the assembly specification should identify exposure to salt, humidity, coolant, oils, cleaning agents, or sterilisation chemicals where relevant.
Tooling and production strategy
The tooling concept should be selected after the insert and polymer design are reasonably stable. A prototype tool, soft tool, or production tool may be appropriate depending on volume, urgency, and confidence in the design. Even for early parts, the supplier should explain whether the proposed method uses manual loading, a nest, a rotary table, a robot, or in-mould automation. Labour content and placement repeatability can differ substantially between these approaches.
A loading fixture is often as important as the mould cavity. It should prevent upside-down placement, omitted inserts, mixed variants, and damage to plated or precision surfaces. Presence sensors, vision checks, weight checks, or a poka-yoke nest can be considered where a missing insert would create a safety or functional risk. The buyer should ask how nonconforming loaded moulds are identified and contained.
Gates and parting lines require special attention. A gate directed at an exposed metal edge may cause jetting, cosmetic damage, or insert displacement. A parting line crossing a sealing surface or thread can create flash that is difficult to remove consistently. The toolmaker should show the proposed gate, vent, ejector, slide, and insert-datum strategy before tool release.
Decision table for OEM reviews
| Decision area | Lower-risk direction | Main trade-off to review | |---|---|---| | Insert retention | Simple shoulder, flat, or shallow interlock | More geometry can complicate tooling and cleaning | | Loading method | Dedicated nest with poka-yoke features | Automation may require higher initial investment | | Gate location | Flow that supports the insert against a datum | Cosmetic and filling constraints may limit options | | Surface treatment | Controlled, documented finish compatible with resin | Additional treatment adds process and corrosion variables | | Polymer cover | Adequate, uniform encapsulation around load paths | More cover can increase size, sink, or cooling time | | Inspection | Direct checks of insert position and critical interfaces | More gauges and fixtures increase launch effort |
Common failure modes and trade-offs
**Insert movement** occurs when injection force, packing pressure, or an inadequate locating feature shifts the metal. Symptoms include position error, exposed edges, short shots, or inconsistent wall thickness. Corrective actions include improving the nest, adding a positive stop, changing the gate direction, reducing unsupported insert length, or revising the moulding window. Increasing clamp force alone is rarely a complete solution.
**Flash around the insert** may result from excessive clearance, worn shutoffs, misalignment, or a deforming insert. Flash can interfere with connectors, seals, threads, or electrical clearances. The design should define permitted flash by function, not merely by appearance. A trimming operation may be possible, but it introduces handling, damage, and inspection requirements.
**Cracking and crazing** can arise from residual stress, sharp metal edges, excessive interference, aggressive ejection, or chemical exposure. Cracks may appear immediately or after thermal cycling. Rounded edges, balanced wall design, controlled packing, suitable resin drying, and realistic validation reduce risk. A visual inspection immediately after moulding cannot prove long-term resistance.
**Voids, sink, and weak weld lines** are often linked to difficult flow around a large insert, insufficient venting, nonuniform section thickness, or inadequate packing. These defects may be cosmetic in one region but structural in another. Sectioning, radiography, microscopy, or targeted destructive testing may be appropriate during process development, subject to the product’s risk level.
**Corrosion or poor adhesion** can be caused by contaminated inserts, incompatible plating, trapped moisture, or an unsuitable surface treatment. Bond strength should not be assumed from a clean appearance. Where the metal-to-polymer interface is functionally important, validation should reproduce the intended environment and loading rather than relying on a single pull test.
The major trade-off is integration versus flexibility. Insert moulding can remove assembly steps and improve positional consistency, but a moulded insert is less replaceable than a separately assembled component. It can also lock the design into a particular metal finish, resin, and tooling architecture. Buyers should compare the integrated process with alternatives such as overmoulding, press fitting, heat staking, ultrasonic insertion, or a conventional fastened assembly.
RFQ and pre-production checklist
A useful RFQ gives the supplier enough information to quote the actual manufacturing route rather than an abstract part. Include the 3D model, drawing revision, annual and batch volumes, forecast horizon, target launch date, and expected packaging or delivery condition. State whether the metal insert is supplied by the buyer or the moulder, and identify responsibility for incoming inspection and traceability.
The technical package should also specify:
- Insert material, temper or grade where relevant, dimensions, plating, coating, and cleanliness requirements.
- Polymer grade, colour, reinforcement, flame or chemical requirements, and permitted regrind policy.
- Critical insert-to-part dimensions, datum scheme, angular orientation, and exposed-metal limits.
- Functional loads such as torque, pull-out, insertion force, electrical resistance, sealing, or pressure exposure.
- Cosmetic zones, flash limits, burr limits, marking requirements, and packaging protection.
- Required sampling, capability evidence, material documentation, process records, and change-control expectations.
Before production-tool approval, request a design-for-manufacture review showing the proposed gate, vents, parting line, ejectors, insert supports, loading sequence, and any slides or unscrewing mechanisms. Confirm how the supplier will detect missing or misoriented inserts. Agree how first-off samples will be measured and which characteristics require a fixture rather than a handheld tool.
Validation should include more than dimensional inspection. Depending on the application, consider torque or pull-out testing, electrical checks, leak testing, thermal cycling, humidity, vibration, chemical exposure, and assembly trials. The test plan should define conditioning, sample identification, acceptance criteria, and disposition of failures before testing begins. If the insert is safety-critical, the OEM should retain authority over any deviation or design change.
Conclusion
Metal insert moulding is most reliable when treated as a system of interfaces rather than a simple encapsulation operation. Insert geometry, surface condition, polymer behaviour, tool support, flow, cooling, ejection, and inspection must work together. OEM buyers can reduce launch risk by defining the insert’s function, identifying critical datums, reviewing the tool concept early, and validating the failure modes that matter in service.
A competitive quotation is useful only when it represents a controlled process. Ask suppliers to explain how inserts are prepared, loaded, located, protected, inspected, and traced. Then compare the integrated solution with alternative joining methods on total quality risk, not only piece price. That discipline turns insert moulding from a convenient assembly shortcut into a dependable manufacturing process for repeatable moulded assemblies.
