Executive summary
Hydroforming is a forming process in which hydraulic pressure pushes a metal blank against a die, producing a three-dimensional component with a controlled contour. The blank may be a tube, a sheet, or a preformed shell, depending on the equipment and part family. Unlike conventional stamping, which commonly relies on matched rigid tools and several forming stages, hydroforming uses fluid pressure as a flexible forming medium. That difference can reduce part count, support smooth transitions, and distribute material more efficiently in selected designs.
For an international OEM buyer, hydroforming is not automatically a lower-cost substitute for stamping, machining, or welded fabrication. It is a process choice that becomes attractive when the part has complex tubular geometry, variable cross-sections, integrated branches, deep draws, or a strong need to reduce joints. The business case depends on annual demand, material, dimensional requirements, tooling amortization, secondary operations, and the supplier’s ability to control pressure, lubrication, material flow, and springback.
A sound evaluation begins with the functional part envelope rather than with the process name. Define loads, interfaces, corrosion exposure, joining method, appearance requirements, and inspection characteristics first. Then compare hydroforming with stamping, roll forming, bending, casting, machining, and fabricated assemblies on a total-system basis.
How the process works
Tube hydroforming
In tube hydroforming, a cut tube blank is positioned inside a closed die. Axial cylinders seal or push the tube ends, while a pump introduces pressurized fluid into the tube. As pressure rises, the tube wall expands into the cavity. Axial feeding may be applied at the same time to supply material to regions that would otherwise thin excessively. The forming sequence is therefore a coordinated relationship between internal pressure, axial movement, die closure, and the tube’s material response.
The die determines the final outside geometry, but the starting tube dimensions are equally important. A blank that is too small may require excessive expansion and become thin or split. A blank that is too large may wrinkle, buckle, or demand excessive calibration. Some parts use a preliminary bending or preforming operation so the tube enters the hydroforming die closer to its final centerline. Ends are then trimmed, pierced, flared, machined, or prepared for joining.
Sheet hydroforming
Sheet hydroforming uses fluid pressure to form a sheet against a single rigid tool or punch. It can be useful for deep or smoothly contoured components where conventional draw tooling would require several operations. The fluid supports the sheet over a broad area, while the process applies pressure progressively rather than relying only on a fixed opposing die surface.
Sheet hydroforming still requires careful control of blank holding, lubrication, material flow, and draw depth. The fluid does not eliminate tensile stress, compression, or thickness change. It changes how the load is applied. Draw beads, corner radii, pressure curves, and tool surface quality remain important to repeatability.
A typical production sequence
A practical sequence may include material receipt, tube cutting or sheet blanking, cleaning, bending or preforming, loading, sealing, fluid filling, pressure ramping, axial feeding or controlled blank holding, depressurization, unloading, trimming, piercing, calibration, cleaning, inspection, and surface treatment. The exact order varies by part and equipment. Buyers should request a process flow that identifies which dimensions are created during forming and which are created later by machining or trimming.
| Process stage | Main purpose | Buyer concern | |---|---|---| | Blank preparation | Establish suitable starting length, diameter, width, and surface condition | Traceability and blank consistency | | Preforming | Bring the blank closer to final geometry | Added operation, bend quality, positional repeatability | | Forming | Expand or draw material into the die cavity | Pressure control, thinning, wrinkling, splitting | | Calibration and trimming | Refine interfaces and remove excess material | Datum strategy and secondary-operation capability | | Inspection | Confirm geometry, material condition, and defects | Measurement method and sampling plan |
Why OEMs consider hydroforming
The strongest justification is often **functional integration**. A hydroformed tube can combine bends, changes in section, mounting areas, and transitions that might otherwise require several stamped components joined by welding. Fewer components can mean fewer fixtures, welds, heat-affected zones, sealing risks, and opportunities for tolerance stack-up. This is not guaranteed; the integrated part must still be evaluated for forming feasibility and downstream joining.
Hydroforming can also create efficient load paths. A tubular section naturally carries bending and torsional loads, while local geometry can be shaped around attachment points or clearance zones. In vehicle structures, exhaust components, chassis members, heat-management parts, and fluid-handling assemblies, this can support a compact design. In industrial equipment, frames, manifolds, guards, and pressure-related components may benefit from continuous formed geometry, although pressure-containing applications require application-specific engineering and validation.
A further advantage is surface continuity. Smooth transitions can reduce abrupt section changes and may improve appearance or fatigue behavior when the design and material are appropriate. However, a smooth outside surface does not prove that the part has uniform thickness or adequate fatigue life. It must be supported by engineering analysis and inspection of critical regions.
Design decisions that determine feasibility
Material and formability
Material selection should be based on the required strength, ductility, corrosion resistance, weldability, conductivity, temperature capability, and supply form. Hydroforming is used with many steel, stainless, aluminum, and other ductile metal grades, but each grade behaves differently. Yield strength, anisotropy, strain hardening, wall thickness, tube weld quality, and prior cold work affect the pressure and feed window.
A higher-strength grade may reduce section size or wall thickness, but it can narrow the forming margin and increase springback. Aluminum may offer mass advantages but can require different lubrication, pressure control, and joining practices. The correct question is not whether a material is “hydroformable” in general; it is whether the specified grade and product form can achieve the local strain state without unacceptable thinning, buckling, cracking, or dimensional drift.
Radii, transitions, and local features
Sharp corners are difficult for any metal-forming process. Generous radii generally improve material flow, reduce localized strain, and make the die easier to manufacture and maintain. A sudden transition from a large section to a small section can create a high-demand region. Branches, beads, holes near corners, and closely spaced features should be reviewed for their effect on local thinning and tool access.
Holes are often pierced after hydroforming because pre-pierced holes can distort during expansion. A preformed feature may be justified when it supports material flow or reduces a difficult secondary operation, but it should be tested rather than assumed. Hole position should be dimensioned from functional datums established after forming, not only from the original blank ends.
Springback and datums
After pressure is released, elastic recovery changes the part’s shape. Springback depends on material strength, thickness, geometry, forming history, and restraint. A supplier may compensate through die correction, pressure strategy, calibration, or controlled secondary operations. These methods should be agreed during design review because compensation can affect tool cost and lead time.
OEM drawings should distinguish product requirements from process preferences. Identify functional interfaces, mating surfaces, hole locations, sealing regions, and inspection datums clearly. Avoid applying a tight general profile tolerance to every surface when only a few locations control assembly. A realistic datum scheme gives the manufacturer room to manage natural forming variation while protecting the interfaces that matter.
Tooling, equipment, and production economics

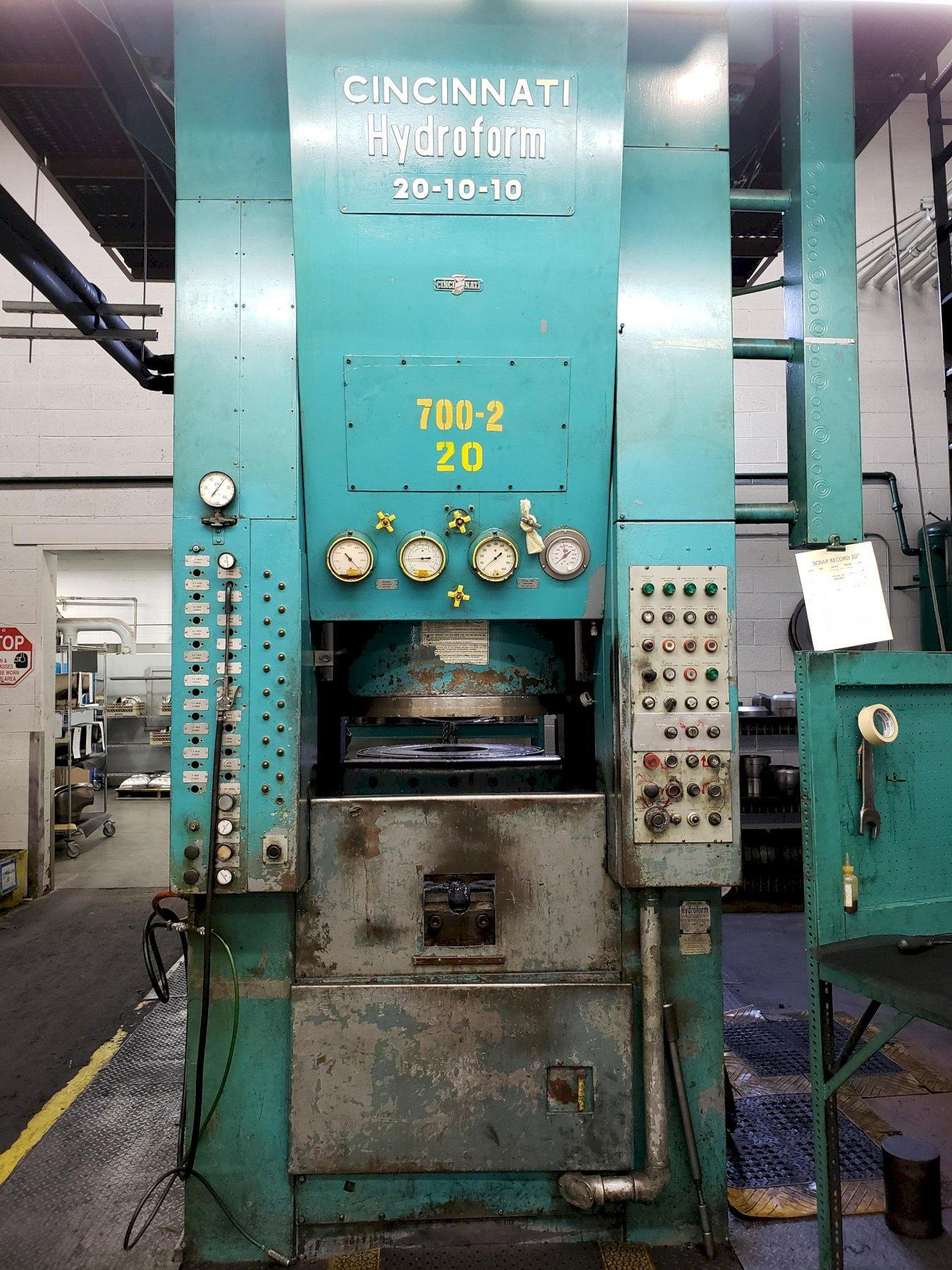

Hydroforming tooling is often more involved than a simple bending die because it must contain pressure, seal the blank, withstand repeated loading, and permit reliable loading and unloading. Die inserts, seals, end closures, axial cylinders, piercing arrangements, and calibration features all contribute to the manufacturing system. Tool durability depends on material, pressure, lubrication, sliding conditions, maintenance, and production cadence.
The process may reduce the number of component tools and joining fixtures, yet it does not make tooling free. A buyer should compare the complete launch package: forming die, preforming tooling, trimming and piercing tools, gauges, inspection fixtures, programming, trials, material development, and maintenance provisions. For low volumes or frequent design changes, a fabricated assembly or flexible machining route may remain preferable. For stable medium- to high-volume production, integrated forming can offset tooling through reduced assembly content and simpler logistics.
Cycle time is more than the pressure-hold duration. Loading, sealing, filling, forming, depressurizing, unloading, trimming, cleaning, and inspection can dominate the line balance. Ask for a process map and preliminary capacity model rather than judging economics from forming time alone. The comparison should include scrap, labor, secondary operations, packaging, freight, joining, leak testing where applicable, and the cost of late engineering changes.
Common failure modes and trade-offs
Splitting and excessive thinning
Splits usually occur where local strain exceeds the material’s capability. Typical contributors include excessive expansion, insufficient axial feed, a small radius, poor lubrication, a material defect, or an unsuitable blank dimension. Thickness mapping, forming simulation, trial parts, and destructive sectioning can help identify high-risk zones. The remedy may involve changing geometry, increasing starting wall thickness, adding preforming, altering the pressure path, or selecting a different material.
Wrinkling and buckling
Wrinkles form when material experiences compressive stress without adequate support or controlled flow. In tube hydroforming, end feeding and preform shape are especially influential. In sheet work, blank-holder force and draw-bead design affect compression. Removing wrinkles by simply increasing pressure can create a split elsewhere, so the process must be adjusted as a system.
Leakage and sealing problems
A leak may result from damaged tube ends, poor end preparation, seal wear, misalignment, contamination, or excessive surface roughness at the closure region. Leakage interrupts production and can mask a forming problem because the intended pressure curve is never reached. End-condition requirements, seal inspection, replacement intervals, and leak-detection methods should be defined before production approval.
Dimensional variation and springback
Variation can arise from material lot differences, blank length, bend position, die wear, pressure calibration, temperature, lubrication, and inconsistent loading. A stable process needs controlled inputs and a measurement system that separates forming variation from trimming or fixture variation. If a part is welded or bolted into a larger assembly, the supplier and OEM should evaluate the complete tolerance stack rather than inspecting isolated dimensions only.
Surface damage and corrosion risk
Handling marks, galling, tool pickup, and residue may affect appearance or later coating. Cleaning chemistry and post-forming protection should be compatible with welding, painting, plating, adhesive bonding, or sealing. Internal fluid contact can also matter for parts that later carry coolant, air, fuel, or process media. The drawing and specification should state the required cleanliness and surface condition instead of leaving them implicit.
RFQ and pre-production checklist
An effective RFQ gives suppliers enough information to assess process fit without forcing them to guess at functional priorities. Include the 3D model, 2D drawing, material grade and product form, starting blank assumptions if known, annual and peak volumes, launch timing, forecast life, packaging orientation, and geographic delivery point. State whether the part is a safety-related, pressure-containing, cosmetic, structural, or general-purpose component.
The following questions are useful during technical review:
- Which regions are expected to be formed, trimmed, pierced, machined, welded, or calibrated?
- What are the critical interfaces, datums, profile zones, and inspection characteristics?
- What minimum wall thickness or local thinning limit is required by the design authority?
- Is preforming acceptable, and which additional operations are included in the quoted scope?
- What material traceability, surface condition, cleanliness, and joining requirements apply?
- How will first-article geometry be measured, and which gauge or fixture represents assembly conditions?
- What trials, simulation, sectioning, leak tests, or capability studies are planned before release?
- How are tool modifications, engineering changes, spare seals, and preventive maintenance handled?
Before production approval, review a documented process flow, control plan, risk analysis, inspection plan, sample definition, and reaction plan for defects. Confirm that the supplier’s proposed process can meet the real assembly interfaces, not merely produce a visually similar shape. If the geometry is new or near the forming limit, plan an engineering trial with representative material and tooling rather than relying solely on a desktop feasibility opinion.
A practical decision framework
Hydroforming deserves serious consideration when the design benefits from a continuous tubular or smoothly drawn shape, when component integration removes meaningful joining content, and when volumes justify dedicated tooling. It is less compelling when the part is flat, highly open, easily stamped, very low volume, or dominated by tight machined interfaces that must be created after forming anyway.
Compare candidate processes using the same requirements and boundaries. A useful decision matrix can score structural performance, mass, part count, tooling investment, development risk, cycle time, secondary operations, inspection burden, material availability, and change flexibility. Give the highest weight to characteristics that affect the product’s function and launch risk. A nominal piece price without these boundaries can produce a misleading sourcing decision.
Conclusion
Hydroforming is best understood as a coordinated material-flow process, not simply as “forming with water.” Its value comes from shaping metal into useful load paths and integrated geometries while potentially reducing assembled content. Its risks come from the same source: material must travel, stretch, compress, and recover within a controlled process window.
For OEM procurement and engineering teams, the most reliable path is early collaboration around geometry, material, datums, tooling scope, and validation. Define what the part must do, identify where thickness and dimensional control matter, and require the supplier to explain how those requirements will be created and measured. When the design, volume, and process controls align, hydroforming can be a robust manufacturing option. When they do not, a simpler process may deliver lower overall risk even if its individual operations appear less elegant.
