Executive summary
HVAC sheet metal components are often treated as straightforward folded parts: a blank is cut, flanges are formed, holes are added, and the result is shipped to assembly. That description misses the engineering decisions that determine whether a duct section, equipment panel, filter frame, transition, or control enclosure performs reliably in the field. Geometry affects airflow and fit. Material and coating affect corrosion life. Seams, fasteners, and bend details affect leakage, vibration, serviceability, and repeatability.
For an international OEM buyer, the central question is not simply whether a supplier can make the shape. It is whether the supplier can translate a released design into a controlled process, preserve functional interfaces across batches, and document the characteristics that matter. The strongest sourcing decision therefore begins with a clear product definition and a manufacturing review, not with a unit price alone.
This article explains how to evaluate custom HVAC sheet metal manufacturing for ductwork and enclosures. It focuses on generally applicable principles: selecting practical materials, designing bend and joining details, controlling air-side geometry, specifying finishes, planning inspection, and avoiding common production failures. It also provides an RFQ and pre-production checklist that can be used with suppliers in different regions.
Start with the function of each component
A duct panel and an electrical enclosure may both be made from thin sheet, but they have different critical characteristics. Ductwork must preserve a defined air path, connect to adjacent sections, resist vibration and handling loads, and limit unintended leakage. An enclosure must protect internal equipment from its environment while maintaining access, mounting accuracy, cable routing, and sometimes electromagnetic or thermal requirements. A fan guard, drain pan, bracket, or filter rack introduces another set of priorities.
Before discussing equipment or tolerances, classify each part by its functional role. Identify the surfaces that contact gaskets, filters, rails, doors, insulation, or mating flanges. Mark openings that must align with fans, coils, dampers, sensors, terminals, and service tools. Distinguish air-stream surfaces from exterior cosmetic surfaces. This simple separation helps the manufacturer understand which deviations are functional and which are merely visual.
A useful design review also separates requirements into three levels:
| Requirement level | Typical HVAC example | Sourcing implication | |---|---|---| | Critical interface | Gasket land, coil slide path, mounting-hole pattern | Define datum scheme, inspection method, and acceptance limits | | Performance-related | Seam construction, drain slope, airflow transition | Review geometry and joining process before tooling or release | | General | Non-mating exterior face, hidden stiffener | Use practical sheet-metal tolerances and visual standards |
This hierarchy prevents a drawing from applying an unnecessarily tight tolerance to every dimension while leaving the important interfaces ambiguous.
Material selection: balance corrosion, formability, and lifecycle
Galvanized steel is common for HVAC ductwork because it combines useful stiffness, broad availability, and a zinc coating that provides sacrificial corrosion protection. It is often a practical choice for indoor air-handling assemblies and general duct components, provided the coating is not damaged excessively during cutting, forming, or installation. The coating designation, base-metal grade, thickness, and surface condition should be stated rather than left to a generic phrase such as “galvanized sheet.”
Stainless steel is selected when corrosion exposure, hygiene, cleaning chemicals, or appearance justify its higher material and fabrication cost. Austenitic grades are widely used in demanding environments, but the exact grade should follow the media, temperature, cleaning regime, and local design requirements. Stainless material also changes fabrication behavior: it work-hardens, can show heat tint after welding, and is more sensitive to scratching and contamination from carbon-steel tooling or handling.
Aluminum can reduce weight and offers useful corrosion resistance in suitable environments. Its lower stiffness compared with steel may require thicker material, formed beads, returns, or additional stiffeners to control oil-canning and vibration. Aluminum alloys also differ in formability and weld response, so the supplier needs the specified alloy and temper, not only the word “aluminum.”
The selected thickness should be considered with panel size, unsupported span, pressure, vibration, handling, joining method, and acoustic objectives. Increasing thickness is not always the best answer to deflection; a return flange, bead, hat section, or strategically placed stiffener may add rigidity more efficiently. However, formed reinforcement must not obstruct insulation, filters, airflow, drainage, or service access.
Material substitutions deserve formal approval. A supplier may propose an equivalent grade because of regional availability, but equivalence includes more than nominal chemistry. It can affect bend performance, coating mass, surface appearance, weldability, hole quality, and corrosion behavior. Require a documented deviation or engineering change process before substitution enters production.
Design the part around repeatable sheet-metal operations

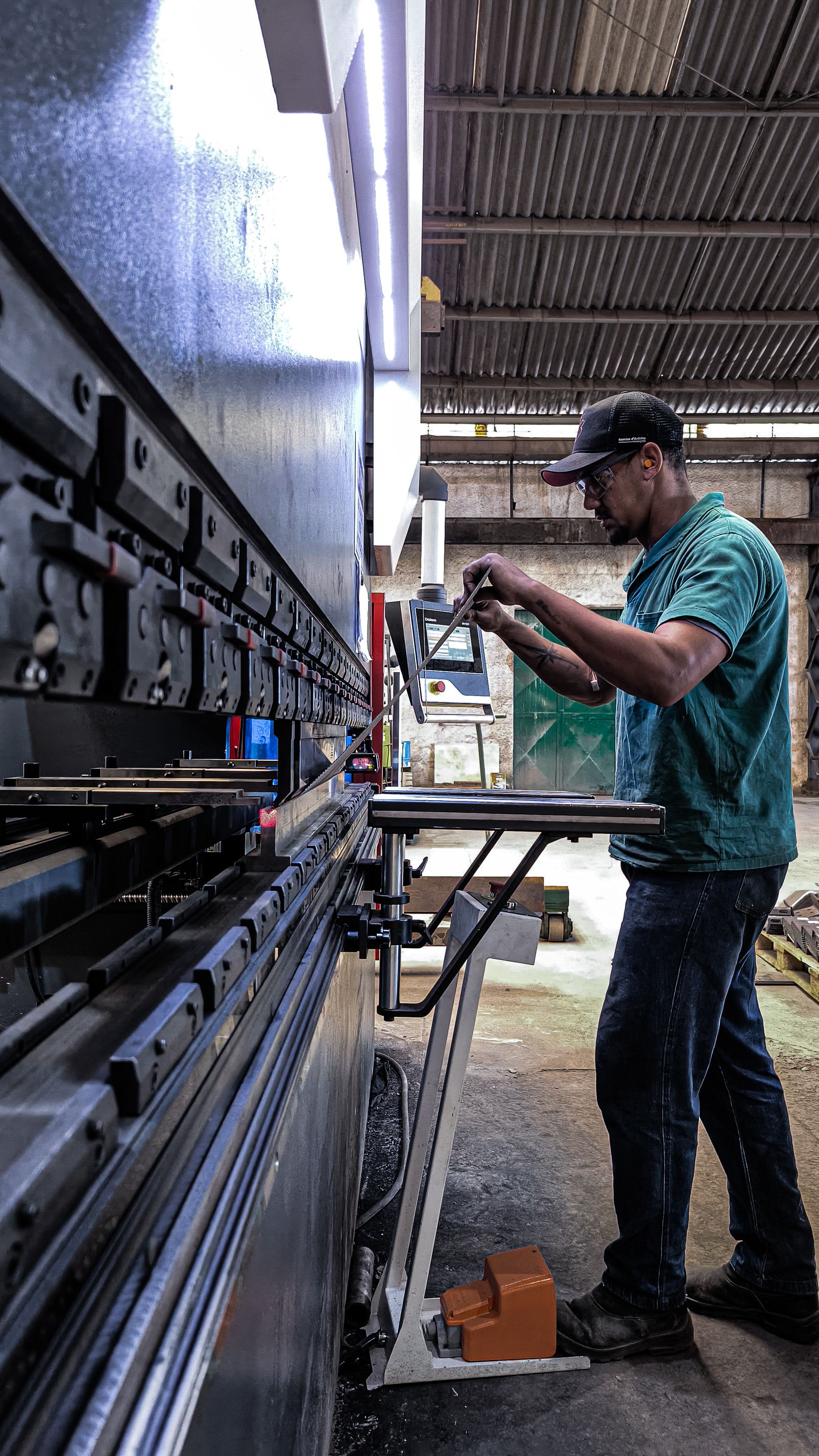

The preferred process sequence depends on volume, size, thickness, and feature mix. Laser or turret cutting is suitable for many profiles and hole patterns. Press-brake forming creates flanges, channels, hems, and returns with flexible tooling. Roll forming can be efficient for long, repeated profiles. Punching may be advantageous for recurring hole patterns or lanced features. Welding, clinching, riveting, screws, and sealants then create the assembly.
A manufacturing review should confirm that the flat pattern, bend allowances, bend directions, and tool access are realistic. The inside bend radius should suit the material and thickness; a radius that is too small can cause cracking, coating damage, distortion, or inconsistent springback. A radius that is unnecessarily large may interfere with a gasket, clearance, or adjacent part. Bend reliefs at corners reduce tearing and uncontrolled deformation, while adequate distance between holes and bend lines helps preserve hole shape and flange position.
Avoid designing every feature as a separate welded item when a folded detail can deliver the same function. A formed return can improve stiffness and remove a seam; a hem can protect an exposed edge; a punched louver can provide ventilation without an added grille. Conversely, do not force a complex one-piece fabrication when it creates inaccessible welds, difficult coating coverage, or unacceptable distortion. Splitting a part at a logical service or assembly boundary can improve manufacturability and repairability.
Flatness and squareness require particular attention on large panels. Cutting heat, residual stress, forming sequence, and welding can all move a part. A drawing should define functional flatness or alignment where it matters, but the inspection method must be practical. For example, a gasket seating surface may need a controlled check against a fixture, while a hidden panel may only need freedom from interference during assembly.
Protect airflow, sealing, and service interfaces
In ductwork, small geometric details can have system-level consequences. Abrupt transitions, sharp internal projections, misaligned openings, and protruding fasteners may disturb the intended air path or create local turbulence and noise. The appropriate design depends on the system, but the general manufacturing principle is consistent: identify air-side surfaces and keep joints, sealant, insulation, and hardware from intruding beyond the intended envelope.
Seams and flanges should be selected for the required pressure, access, assembly method, and sealing approach. A mechanically locked seam may provide a clean repeatable joint, while a welded seam may be appropriate where hygiene, strength, or leak resistance dominates. Fastened flanges need a coherent hole pattern, edge distance, gasket land, and tightening access. If a sealant is required, specify its location, compatible substrate, cure expectations, and whether excess material may appear inside the air stream.
Drain pans and condensate-related parts require more than a nominal slope dimension. The design should provide a continuous drainage path, avoid pockets that retain water, and allow cleaning and inspection. Welds, corners, penetrations, and coating condition deserve special review because leakage and corrosion often begin at discontinuities rather than broad sheet surfaces. The supplier should understand whether a pan is intended for a leak test, visual inspection, or another defined acceptance method.
Doors and removable panels have competing requirements: they must seal when closed, remain stable during operation, and open without damaging adjacent components. Overly flexible panels can rattle or lose gasket compression. Excessive gasket compression can increase closing force and accelerate wear. Hinges, latches, captive hardware, and access clearances should be evaluated together rather than specified as isolated components.
Joining, welding, and finishing decisions
Joining method influences both appearance and performance. Clinching and riveting can reduce heat distortion and may be efficient for coated or dissimilar materials, but they require access and a suitable overlap. Screws simplify service and field replacement, though loose hardware, thread damage, and protrusion into the air path must be controlled. Welding can create strong, sealed joints, but heat input may distort thin sheet and damage nearby protective coatings.
For welded stainless or aluminum assemblies, the drawing or process specification should identify visible-weld expectations, post-weld cleaning, and treatment of discoloration where relevant. A smooth appearance is not automatically evidence of a leak-tight joint, so visual quality and functional testing should be separated. For galvanized steel, welding burns away local zinc protection; the repair method must be compatible with the corrosion requirement and approved by the responsible engineer.
Powder coating, liquid paint, plating, conversion coating, and supplied mill finish each suit different environments. Finish specifications should state the required color reference when appearance matters, the coated surfaces, masking zones, edge expectations, and any test or inspection standard selected by the OEM. Masking holes, earth points, gasket lands, threads, and sliding surfaces is a common source of disagreement if not defined before production.
Surface preparation is as important as the topcoat. Oil, scale, weld residue, fingerprints, and embedded particles can impair adhesion or create cosmetic defects. Coating thickness should not be treated as a universal cure for poor preparation. For outdoor or chemically exposed equipment, the complete corrosion system—including joints, cut edges, fasteners, and field touch-up—should be reviewed rather than judging only the broad painted face.
Common failure modes and trade-offs
One frequent failure is a component that matches the nominal drawing but does not assemble. Hole patterns can shift through bend sequence or weld distortion, and a supplier may inspect individual dimensions without checking the full assembly. A functional fixture or mating sample is often more revealing than dozens of isolated measurements.
Another failure is leakage caused by an incomplete seam, inconsistent gasket compression, unsealed fastener, or surface waviness at the sealing land. The corrective action may be a process change, a better joint design, or a clearer acceptance test—not simply more sealant. Excess sealant can detach, obstruct airflow, complicate cleaning, and conceal poor fit.
Oil-canning and vibration can appear when a large panel is too thin or insufficiently reinforced. A thicker blank adds mass and cost, while beads or stiffeners add forming and assembly operations. The right choice depends on span, pressure fluctuation, acoustic expectations, and the location of insulation. Buyers should request a design review when a panel is visibly flexible, especially if it carries hardware or supports a gasket.
Corrosion may originate at cut edges, scratches, mixed-metal contact, trapped moisture, or unprotected weld zones. A robust specification identifies the environment and the repair or treatment expectations. Cosmetic scratches on hidden surfaces may be acceptable in one assembly and unacceptable where they expose a corrosion-prone substrate or compromise a gasket.
Finally, late changes create disproportionate risk. Moving a hole after tooling, adding a thicker coating, changing a gasket, or substituting material can alter bend compensation and clearances. Revision control, sample approval, and written deviation handling are therefore manufacturing controls, not administrative extras.
RFQ and pre-production checklist
An RFQ should give suppliers enough information to quote the intended product rather than an ambiguous approximation. Provide released 2D drawings, 3D models where useful, revision status, annual and batch quantities, packaging constraints, target delivery region, and the expected production horizon. Identify whether the quoted part is a prototype, pilot build, service replacement, or repeat production item.
Include the following operational details:
- Material grade, thickness, coating or finish, and permitted substitutions.
- Critical datums, mating features, sealing surfaces, and assembly interfaces.
- Bend-radius assumptions, edge conditions, weld symbols, seam requirements, and hardware specifications.
- Air-side restrictions, drainage requirements, insulation clearances, and access limitations.
- Cosmetic zones, acceptable marks, masking requirements, and packaging protection.
- Inspection records, first-article expectations, leak or functional tests, and sample-retention needs.
- Traceability expectations for material, revisions, deviations, and outsourced finishing.
Before production approval, review the supplier’s proposed process route and flat pattern. Confirm that tooling, fixtures, inspection gauges, and finishing partners are identified. Ask how the supplier will control springback, weld distortion, hole alignment, and coating masking. A first article should be evaluated in the same way the OEM will use the part: assembled, sealed, fitted with the relevant hardware, and checked for service access.
A practical pre-production package also includes approved reference samples or photographs for cosmetic decisions, a packing drawing for vulnerable flanges and finished faces, and a change-notification rule. If the part is safety-relevant or performance-critical, define who approves process deviations and what evidence is required before shipment.
Conclusion
Successful HVAC sheet metal sourcing is a coordination problem between design intent and manufacturing reality. The buyer must define function, environment, interfaces, and acceptance methods; the manufacturer must convert those requirements into stable cutting, forming, joining, finishing, and inspection steps. Material choice, bend geometry, seam design, panel stiffness, drainage, and coating protection should be considered as one system.
The best RFQs make critical characteristics visible, allow practical tolerances where precision is not needed, and require functional validation before volume release. That approach helps international OEM teams compare suppliers on capability and risk rather than on nominal price alone. It also creates a clearer path from prototype learning to repeatable production for ductwork, enclosures, and the many sheet-metal components that support dependable HVAC equipment.
