Executive Summary
Custom washers and shims are often treated as inexpensive accessories, yet their geometry can determine whether a bolted joint remains stable, a bearing seats correctly, a shaft stays aligned, or an electrical assembly remains insulated. For an OEM buyer, the central sourcing question is not simply which supplier can cut a ring. It is whether the part’s material, thickness, flatness, hole geometry, edge condition, and surface finish are controlled for the actual load path and assembly environment.
A robust specification begins by separating function from habit. A washer may distribute clamp load, protect a surface, provide electrical isolation, act as a spring element, or retain a seal. A shim may establish axial position, remove play, set a gap, or compensate for stack-up variation. Those functions lead to different requirements. The best production process then follows quantity, material, thickness, feature complexity, tolerance, and required repeatability—not the part’s small size.
This guide explains how to make those decisions, where common trade-offs arise, and what an RFQ and pre-production review should contain. It intentionally avoids universal tolerance promises: achievable values depend on alloy, gauge, tooling, equipment, geometry, and inspection method.
Start With the Functional Requirement
Before selecting a material or manufacturing route, describe what the part must do in the assembly. “Washer” and “shim” are product names, not complete engineering requirements. The same annular shape can be a cosmetic spacer in one assembly and a fatigue-critical load-distribution component in another.
For a load-distributing washer, identify the fastener size, bearing surfaces, expected preload, external forces, joint movement, and the strength of the clamped material. The outside diameter controls how load is spread; the inside diameter must clear the fastener without creating unwanted interference; thickness affects stiffness and seating behavior. If the joint is exposed to vibration, fretting, moisture, or repeated service loads, specify those conditions rather than relying on a generic flat-washer label.
For a shim, define the nominal gap or position, the adjustment range, whether one thickness or a calibrated set is required, and whether the shim remains permanently installed. A shim that sets bearing preload has a different risk profile from one that merely removes visible play. If several shims are stacked, the drawing should state whether individual thickness variation, total stack thickness, or both are critical.
A useful drawing also identifies datum surfaces and the features that matter in assembly. Concentricity to the bore may be important for a rotating component, while outside diameter runout may matter where the washer locates inside a pocket. Do not apply tight tolerances to every dimension by default. Broad, justified tolerances usually reduce inspection burden and allow more economical process choices.
Material Selection: Match the Environment and Load Path
Material selection should address mechanical behavior, corrosion, temperature, electrical properties, and interaction with mating parts. Common choices include low-carbon steel, stainless steel, aluminum, copper alloys, engineering plastics, and technical laminates. Each can be appropriate, but none is universally interchangeable.
Low-carbon steel is widely used when strength, stiffness, availability, and cost are priorities. It normally needs a suitable protective finish when exposed to humidity or corrosive atmospheres. Zinc-based coatings, conversion coatings, organic finishes, or oil films can change dimensions, friction, hydrogen-management requirements, and appearance, so the finish belongs in the engineering specification rather than being left to the supplier’s default.
Stainless steel is selected for corrosion resistance, cleanability, or appearance, but grades differ in strength, forming response, magnetic behavior, and resistance to specific media. A stainless washer can still gall against a stainless fastener, and corrosion resistance does not eliminate the need to consider crevices, dissimilar-metal contact, or elevated temperature. Where electrical continuity is required, verify the contact behavior of the finish and oxide layer.
Aluminum provides low mass and useful corrosion behavior in many applications, but its lower hardness can permit embedding or surface damage under high clamp loads. Copper and copper alloys are valuable for conductivity, thermal transfer, and certain sealing or contact functions; they can also be relatively soft and susceptible to deformation. Plastics and laminates are useful for insulation, isolation, low friction, or chemical resistance, but their creep and thermal expansion may make them unsuitable for a permanently loaded joint.
The table below is a starting framework, not a substitute for application testing or compatibility review.
| Requirement | Candidate material families | Main question for the buyer | |---|---|---| | General structural spacing or load distribution | Low-carbon steel, stainless steel | What load, environment, and finish are required? | | Corrosive or washdown environment | Appropriate stainless grades, coated steel, selected polymers | Is corrosion resistance needed at edges and interfaces? | | Low mass | Aluminum, thin stainless, engineered polymers | Will lower stiffness or creep affect the stack? | | Electrical insulation | Nylon, PEEK, laminates, ceramic-based materials | What voltage, temperature, dielectric, and compression conditions apply? | | Electrical or thermal conduction | Copper alloys, aluminum, plated metals | Is contact resistance stable after assembly and aging? | | Controlled friction or wear | Hardened metals, filled polymers, bearing materials | Which surface is intended to wear, and how is debris managed? |
Material substitutions should require formal approval when they change modulus, hardness, coefficient of thermal expansion, conductivity, corrosion potential, or coating compatibility. “Equivalent” should mean equivalent for the function, not merely similar nominal chemistry.
Choosing the Manufacturing Process
Stamping and Punching

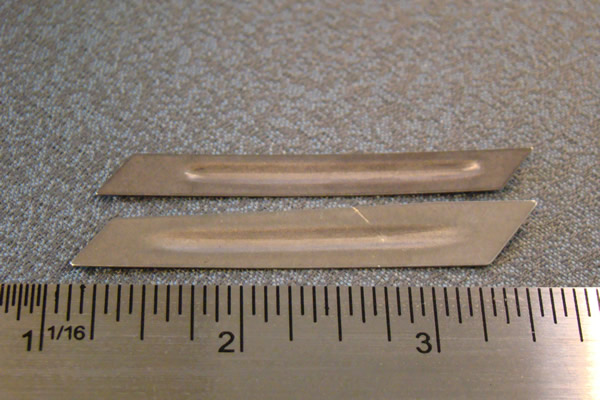

Progressive or single-operation stamping is often efficient for high-volume flat washers and shims, especially when the profile is repeatable and material thickness is compatible with available tooling. A punch and die create the bore and outside profile, sometimes in one operation or through staged operations. Tool design influences burr direction, rollover, hole quality, edge condition, and tool life.
Stamping’s economic advantage depends on volume and part stability. Tooling is an upfront commitment, and design changes after release can be expensive. Buyers should ask how the supplier will control strip feed, tool wear, slug evacuation, and periodic dimensional verification. For thin material, distortion or edge rollover can be more important than nominal cutting accuracy.
Laser, Waterjet, and Other Flexible Cutting
Laser cutting is useful for prototypes, low-to-medium volumes, larger diameters, nested parts, and designs that may still change. It avoids dedicated hard tooling, but heat input can affect a narrow edge zone, discolor certain materials, or introduce taper and dross depending on thickness and settings. The drawing should identify whether the cut edge is functional and whether heat tint or oxide removal matters.
Waterjet cutting avoids a heat-affected zone and can accommodate many materials and thicker sections. It may leave a tapered edge or require secondary finishing, and the cost structure is not always attractive for very small, simple washers. CNC punching, routing, turning, and milling can also be appropriate for thicker stock, unusual profiles, countersinks, slots, or small batches. A turned washer may provide excellent control of concentric features, while a machined shim can be economical when thickness and geometry cannot be produced reliably from sheet.
Forming, Grinding, and Secondary Operations
If the component includes a conical profile, wave form, tabs, louvers, or spring action, forming becomes part of the design. Formed parts may require controls for free height, load response, orientation, and residual stress. A flat drawing is insufficient if the functional requirement is spring force or deflection.
Grinding, lapping, deburring, tumbling, brushing, or vibratory finishing can improve flatness, parallelism, edge safety, or appearance. These operations remove material or alter edges, so they must be considered in the tolerance chain. A supplier should not be expected to achieve a tight finished thickness after an unspecified “deburr” step without a clear process plan.
Tolerance, Flatness, and Edge Condition
Thickness is commonly the most important shim characteristic, but it is not the only one. Flatness determines how fully the part contacts its mating surfaces. Parallelism affects the resulting gap or load distribution. Bore size and outside diameter influence clearance and location. Burr height and edge rollover affect assembly safety, electrical insulation, coating adhesion, and the risk of damaging a seal.
Specify tolerances according to function. A shim used to establish a precision axial position may need a controlled finished thickness and a defined measurement method. A washer under a conventional hex-head fastener may tolerate more variation if its purpose is simply to distribute load across a broad surface. If the assembly is sensitive to stack-up, state the total allowable assembled variation and identify which components contribute to it.
Measurement language matters. “Thickness” could mean a single-point micrometer reading, an average of multiple points, or a calculated result after mapping the part. “Flatness” requires a reference plane and a method; a thin flexible shim can produce different readings depending on fixturing. Ask the supplier to report how parts are supported, where readings are taken, and how many pieces are sampled.
A practical drawing may include a general tolerance note, critical dimensions with explicit limits, a burr or edge-break requirement, material and temper, finish, and a sampling or inspection reference. Avoid specifying a tolerance narrower than the measurement system can distinguish. Gauge resolution, calibration, operator technique, and part deformation all affect the confidence of the result.
Common Failure Modes and Trade-Offs
One frequent failure is selecting by nominal outside diameter and bore while ignoring bearing stress. A washer can dish, embed into a soft housing, or imprint a coated surface if its load area and hardness are inadequate. The opposite problem also occurs: a very hard washer can damage a mating surface or create a galvanic or fretting concern.
Another failure is assuming a thin shim will remain dimensionally stable under continuous compression. Plastics may creep, laminates may absorb moisture, and soft metals may conform to surface roughness. Temperature changes can alter the gap when the shim and surrounding components expand at different rates.
Burrs and sharp edges are often dismissed as cosmetic. They can cut an operator, scrape insulation, initiate a crack in a thin component, interfere with seating, or produce conductive debris. Excessive tumbling can round a locating edge or change a small feature. A coating applied too thickly can reduce bore clearance; a coating applied unevenly can create wedge effects or inconsistent friction.
Cost trade-offs should be evaluated across the full supply chain. A low piece price may be offset by dedicated tooling, sorting, manual handling, secondary deburring, packaging, or high scrap caused by a demanding tolerance. Conversely, a flexible laser-cut route can be expensive at mature volume even when it is ideal for launch. Review expected annual volume, release batches, engineering-change frequency, and inventory strategy together.
RFQ and Pre-Production Checklist
An RFQ should give a capable manufacturer enough information to identify process risk before quoting. Include the latest drawing revision, a neutral CAD file when the profile is complex, estimated annual volume, order quantity, forecast pattern, application environment, and required delivery window. State whether samples, first-article documentation, material certificates, or traceability are required.
The technical package should also clarify:
- Material grade, temper or hardness condition, thickness basis, and approved substitutions.
- Critical dimensions, flatness, parallelism, concentricity, and measurement datums.
- Burr direction, maximum burr or edge-break condition, and acceptable surface marks.
- Plating, coating, passivation, cleaning, color, masking, and corrosion or chemical constraints.
- Packaging orientation, cleanliness limits, lot identification, and protection against mixing.
- Inspection records, sampling plan, nonconformance notification, and change-control expectations.
During pre-production review, ask the supplier to identify the proposed process, tooling assumptions, critical-to-function dimensions, and any features likely to need secondary operations. Confirm whether tolerances apply before or after finishing. Review a representative sample for fit, seating, edge condition, coating coverage, and actual use in the assembly—not only a dimensional report.
For production approval, agree how lots are defined and how retained samples, inspection records, and material traceability will be managed. If a washer is safety-critical, electrical-critical, or part of a sealed system, define the relevant validation or functional test with the responsible engineering team. The supplier should not infer acceptance criteria from a photograph or an informal email.
Conclusion
Custom washers and shims deserve the same disciplined specification used for larger manufactured components. Start with the load path, alignment function, environment, and assembly method. Select material for its complete behavior, then choose stamping, flexible cutting, machining, forming, or finishing according to volume and required control. Define thickness, flatness, edge condition, and inspection methods in language a supplier can manufacture and measure.
For international OEM sourcing, the strongest RFQ is neither the longest nor the most restrictive. It is the one that distinguishes critical requirements from preferences, exposes process assumptions, and provides a clear route to approval. That approach reduces avoidable tooling changes, dimensional disputes, field failures, and total landed cost while giving the manufacturer a realistic basis for repeatable production.
References
[1]: https://www.iso.org/standard/60592.html "ISO 2768-1: General tolerances" [2]: https://www.astm.org/e0018-24.html "ASTM E18: Standard Test Methods for Rockwell Hardness" [3]: https://www.iso.org/standard/63768.html "ISO 21920-1: Geometrical product specifications—Surface texture"
