Executive summary
Copper and brass stamping is a practical route for producing electrical contacts, terminals, clips, shields, springs, washers, busbar features, and many other thin-gauge parts. The process uses a die set and press to cut or form sheet, strip, or coil material into repeatable geometries. For an OEM, the central sourcing question is not simply whether a supplier can stamp copper or brass. It is whether the proposed alloy, temper, tooling approach, surface condition, and inspection plan will preserve the part’s electrical, mechanical, dimensional, and assembly functions over the intended production life.
Copper offers excellent electrical and thermal conductivity, while brass generally provides a useful balance of conductivity, strength, machinability, corrosion resistance, and appearance. Both materials are relatively ductile, yet they do not behave identically in a die. Their work-hardening response, springback, edge quality, galling tendency, and sensitivity to burr orientation influence tool design and process settings. A drawing that omits temper, grain direction, burr limits, or functional contact zones can therefore create avoidable quotation differences and late engineering changes.
The most reliable programs begin with a functional material specification, manufacturable geometry, and a shared definition of acceptance. Buyers should evaluate not only piece price but also tooling ownership, coil or sheet traceability, secondary operations, plating compatibility, change control, and the evidence supplied with first articles.
How copper and brass behave in stamping
Stamping combines shearing and, where required, bending, embossing, coining, drawing, or lancing. During shearing, the punch forces material into the die opening until a fracture completes separation. The resulting edge contains a rollover, a relatively smooth burnished zone, a fracture zone, and a burr. Clearance between punch and die, material thickness, hardness, tool condition, and press alignment all affect the proportions of these zones.
Copper’s high conductivity makes it attractive for current-carrying parts, but the same material family includes grades with very different strength and forming characteristics. Soft copper can form readily but may mark, distort, or lose flatness during handling. Harder tempers can improve spring force and dimensional stability while reducing allowable deformation. Brass alloys likewise vary: some are selected for conductivity and forming, others for higher strength, wear resistance, or improved machinability. The alloy designation and temper should be treated as production requirements, not optional purchasing language.
Both metals can work-harden. A bend that is reshaped, flattened, or struck repeatedly may become harder and less ductile in the affected zone. This can be beneficial for a spring contact, but excessive deformation can produce cracking or inconsistent force. Copper and brass also conduct heat efficiently, so heat generated during high-speed cutting is distributed quickly; lubricant selection and tool sharpness still matter because local friction and adhesion can damage surfaces.
| Design or material variable | Why it matters to the OEM | What to define early | |---|---|---| | Alloy and temper | Controls conductivity, strength, ductility, and forming response | Standard designation, temper, and permitted substitutions | | Thickness and flatness | Affects press force, stack-up, contact pressure, and feeding | Nominal thickness, tolerance, flatness, and coil condition | | Grain direction | Can influence bend consistency and cracking risk | Preferred rolling direction where bends are critical | | Surface condition | Influences appearance, contact resistance, plating, and handling | Mill finish, cleanliness, protective film, or plating condition | | Burr orientation and height | Can affect safety, insertion, electrical contact, and assembly | Maximum burr, required direction, and measurement method |
Choosing the material for the function
Material selection should start with the part’s operating function. A high-current connector may prioritize conductivity and low contact resistance. A retention clip may need stable spring force, fatigue resistance, and resistance to stress relaxation. A shielding component may need conductivity, formability, grounding continuity, and a surface compatible with assembly. A decorative brass component may place greater emphasis on color consistency and corrosion appearance.
Copper is often favored when conductivity is the dominant requirement. Oxygen-free or electrolytic tough-pitch grades may be considered for different electrical and processing environments, but the selected grade must match the application and joining method. Brass is often chosen when greater strength or a more rigid stamped feature is useful. Its conductivity is lower than that of pure copper, and the exact value depends on alloy and temper. It should not be accepted as a generic replacement when electrical performance is specified.
If the component will be plated, the buyer should confirm the base-metal and plating stack together. Cleaning, activation, intermediate layers, and final plating can change solderability, contact behavior, corrosion resistance, and dimensional fit. Plating may also cover or soften the visual evidence of a burr without removing the underlying geometry. The drawing should distinguish a raw stamped condition from a plated finished condition and identify which dimensions are measured at each stage.
Process and tooling decisions

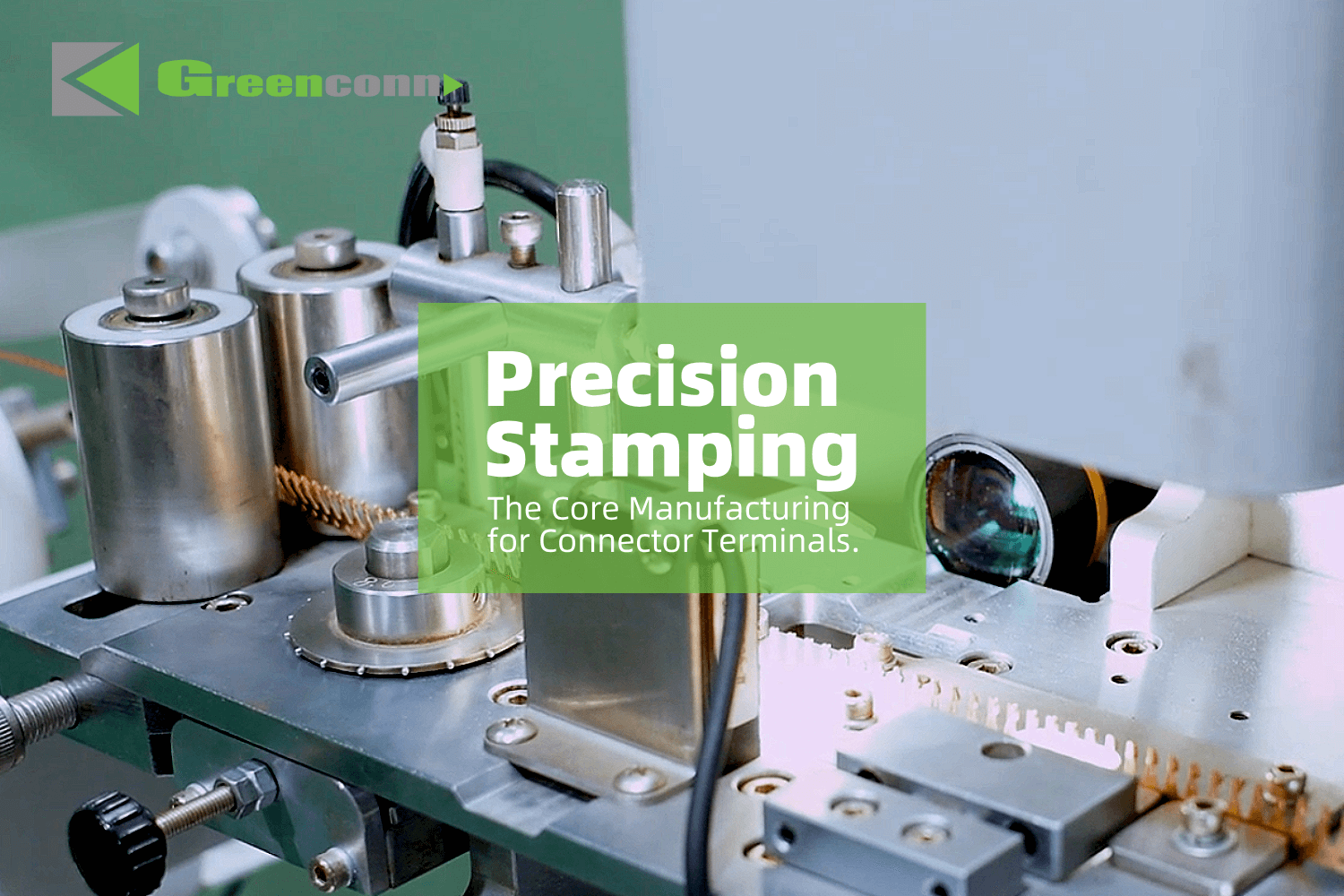

A supplier normally assesses whether the part is best produced by single-hit, progressive-die, compound-die, or a transfer arrangement. Low volumes or large parts may justify simpler tooling, whereas high volumes often benefit from progressive tooling that feeds strip through several stations. The best choice depends on annual demand, part size, feature density, material utilization, changeover requirements, and the need for integrated forming or tapping.
Progressive tooling can combine piercing, notching, bending, coining, embossing, and cutoff in one sequence. It can improve repeatability and reduce manual handling, but it requires careful strip layout, carrier design, pilot control, and maintenance planning. A carrier that is too weak may allow pitch variation; an overly generous carrier can increase scrap. The strip must also support the part while it passes through forming stations without distorting functional features.
For copper and brass, toolmakers pay particular attention to punch edge condition, die clearance, stripper pressure, guidance, and lubrication. Sharp tools generally produce cleaner edges with less rollover and reduced burr growth. Excessive clearance can increase fracture and burr formation; insufficient clearance can raise force, accelerate wear, and create slug pulling or galling. The correct balance is material- and thickness-dependent, so generic clearance percentages should not replace supplier trials and documented process approval.
The press must provide adequate tonnage, shut height, stroke, feed accuracy, and bed support. Tonnage alone is not a process capability statement. A press may have sufficient force but lack the stiffness, speed control, or feed stability needed for a fine-pitch terminal. Buyers should ask how the supplier controls overstroke, strip progression, slug detection, and die protection, especially when a tool contains small punches or narrow carriers.
Designing parts for manufacturability
A stamping drawing should make functional priorities visible. Avoid placing a very narrow web beside a large pierced opening unless the web has been reviewed for strength, distortion, and tool access. Bends close to holes, slots, or coined areas can deform those features. Small inside radii may be achievable in a suitable temper but can raise cracking risk, tool wear, and setup sensitivity. When a sharp edge is not functionally necessary, a practical radius usually improves robustness.
Flat patterns, bend direction, and progressive-tool orientation should be reviewed before tool release. A supplier may recommend moving a hole, widening a carrier, changing a bridge, or adding a small forming relief. Such changes should be evaluated against assembly datum requirements, not accepted or rejected solely on visual preference. For electrical parts, keep contact zones away from handling marks, carrier witness points, and features likely to twist during cutoff.
When spring action is required, specify the working deflection, force range, contact travel, and expected cycling environment rather than relying on a nominal angle alone. Stamped geometry, temper, and forming sequence jointly determine spring performance. A part that looks correct in a free-state inspection may fail after insertion if its force, contact wipe, or retention feature was never defined.
Common failure modes and trade-offs
**Excessive burrs** may result from worn punches, incorrect clearance, poor alignment, or material variation. The solution may involve sharpening, die adjustment, better support, or a controlled deburring operation. Deburring can improve handling but may round an edge, remove material from a contact feature, or add cost and contamination risk.
**Cracking at bends** is commonly associated with a tight radius, unsuitable temper, unfavorable grain orientation, excessive forming in one station, or a damaged tool. Increasing radius or using a more formable temper may help, but either change can reduce compactness or spring force. A staged bend can distribute deformation, although it adds tooling complexity.
**Distortion and twisting** can occur when cutting forces are unbalanced, the carrier releases too early, or a formed feature is not supported. More stations, balanced layouts, restriking, or a revised cutoff sequence may improve flatness. These measures should be checked against material utilization and cycle time.
**Surface marks and galling** may appear when material rubs against a rough, contaminated, or poorly lubricated tool. Copper and brass parts that will remain visible or serve as contacts need defined cosmetic zones. Protective handling, tool polishing, and suitable cleaning can be more effective than attempting to sort defects after production.
**Inconsistent contact performance** may arise from plating variation, oxide or residue, spring-force drift, burr orientation, or a contact surface that was never protected during forming. Electrical inspection should be connected to the actual application requirement. A visual check alone cannot establish contact resistance or long-term retention.
Inspection and process control
The inspection plan should separate material certificates, dimensional checks, functional tests, and appearance criteria. Critical dimensions need clear datums and a measurement method that accounts for springback. Thin copper and brass parts can move under clamping force, so gauges should avoid imposing a shape that the component does not hold in service.
First-article samples should represent the intended material, tool, press, surface condition, and secondary operations. If samples are hand-finished or made from a different temper, they may demonstrate design intent but not production capability. A useful approval package identifies revision level, material heat or lot, tool station changes, inspection equipment, and any deviations accepted for the trial.
For production, buyers may request control of feed pitch, tool-life checks, burr monitoring, plating thickness where relevant, and periodic functional tests. The frequency should reflect risk and volume. Traceability is particularly important when conductivity, temper, or surface treatment is safety- or performance-critical. Nonconforming material should be segregated with a documented disposition process rather than silently reworked.
RFQ and pre-production checklist
Before requesting quotations, provide the supplier with the latest drawing, three-dimensional model where useful, estimated annual volume, release pattern, target launch date, packaging requirements, and forecast assumptions. State whether the quotation should include tooling, inspection gauges, plating, deburring, sorting, packaging, and engineering changes.
A practical RFQ checklist includes:
- Alloy designation, temper, thickness, width, grain-direction requirement, and permitted equivalents.
- Annual demand, batch size, forecast horizon, delivery locations, and expected ramp profile.
- Critical-to-function dimensions, datums, flatness, burr limits, bend angles, and free-state requirements.
- Required electrical, mechanical, corrosion, solderability, or retention tests, if applicable.
- Surface finish, plating system, masking zones, cleanliness, packaging, and shelf-life expectations.
- Tool concept, expected tool ownership, maintenance responsibility, spare-part policy, and end-of-life arrangements.
- First-article content, sample quantity, submission timing, deviation approval, and change-notification rules.
During pre-production review, ask the supplier to mark risks directly on the drawing. Request a strip-layout concept or manufacturability review when carrier marks, material yield, bend sequence, or tool access may affect the design. Confirm how burrs will be measured, how parts will be protected from tangling, and how plated contacts will be separated without scratching.
Evaluating suppliers beyond piece price
A meaningful comparison normalizes the complete cost and risk. One quotation may exclude plating, sorting, gauges, packaging, or preventive tool maintenance; another may include them. Ask for a clear breakdown of nonrecurring tooling, sample charges, secondary operations, recurring unit price, freight assumptions, and validity period without treating any quoted number as a performance guarantee.
Technical questions are equally important. Does the supplier have experience with the specified alloy and temper? Can it demonstrate stable feeding at the required thickness and pitch? How are tool wear, burr growth, strip misfeed, and mixed lots detected? Who owns the die and approved revisions? How are engineering changes controlled across raw material, stamping, plating, and final inspection?
International sourcing also requires alignment on packaging, customs documentation, Incoterms, communication windows, and escalation contacts. The objective is not to select the supplier with the most impressive equipment list. It is to select a process that can repeatedly deliver the required function, with evidence and accountability at each handoff.
Conclusion
Copper and brass stamping rewards disciplined specification. The material’s conductivity, strength, ductility, work hardening, surface condition, and temper all interact with die clearance, forming sequence, press control, and finishing. OEM buyers can reduce late surprises by defining the functional zones, approving manufacturability changes deliberately, and validating samples made under production-representative conditions.
The strongest sourcing decision balances material performance, tool life, inspection effort, secondary operations, logistics, and total risk. When those factors are discussed at RFQ stage, copper and brass stamping becomes more than a low-cost cutting operation: it becomes a controlled manufacturing system for reliable electrical and mechanical components.
References
[1]: https://www.copper.org/resources/properties/ “Copper Properties and Applications,” Copper Development Association. [2]: https://www.copper.org/publications/pub_list/pdf/A7035.pdf “Copper and Copper Alloy Die Stamping,” Copper Development Association. [3]: https://alloys.copper.org/ “Copper and Copper Alloy Standards,” Copper Development Association. [4]: https://www.copper.org/publications/pub_list/pdf/A7038.pdf “Copper and Copper Alloy Manufacturing Processes,” Copper Development Association.
