Executive Summary
Clinching and self-pierce riveting (SPR) are mechanical joining methods that connect sheet-metal components without melting the parent material. For OEM programs, that distinction matters when assemblies combine coated steel, aluminum, dissimilar metals, heat-sensitive finishes, sealed cavities, or production environments where welding access is limited. Both methods can reduce thermal distortion and eliminate weld spatter, but they solve different joint problems and require different tooling, stack-up rules, and validation plans.
Clinching forms a mechanical interlock by locally reshaping overlapping sheets. No separate fastener is added. SPR drives a specially shaped semi-tubular rivet through the upper sheet and expands its legs into the lower sheet, creating an interlock that remains below the lower surface when the joint is designed correctly. The best choice depends on material combination, required strength and sealing, appearance, access, corrosion strategy, service loads, and expected production volume.
For an international OEM buyer, the important question is not simply whether a supplier owns a press. It is whether the proposed joint has been engineered around the actual material stack, coating condition, hole-free assembly sequence, tool life, inspection method, and foreseeable variation. A clear RFQ should therefore specify the joint function and operating environment, not only the desired joining process.
How the Two Processes Create a Joint
Clinching: an interlock made from the sheets themselves
In a clinched joint, a punch and die press the overlapped sheets together. The sheets flow plastically into the die cavity, producing a necked region and a button or interlock on the die side. The resulting joint depends on material flow rather than a separate rivet. Tool geometry, sheet thickness, yield behavior, ductility, coating, and stack orientation all influence the final button.
Clinching can be round, rectangular, or otherwise specialized, and it may be used as a point joint or as a distributed pattern. Since the process does not pierce a hole and does not consume rivets, it can be attractive for high-volume sheet assemblies. It is especially useful where moderate structural performance is acceptable and the joint can tolerate a visible local impression. The joint is not automatically airtight; if a seal is required, a compatible sealant, gasket, or secondary sealing operation must be designed into the assembly.
Self-pierce riveting: a controlled fastener and interlock
SPR uses a rivet that pierces the upper material but does not pass completely through the lower sheet. The rivet flares inside the lower layer, while the lower sheet forms a residual thickness beneath the rivet legs. The rivet head remains on the setting side, and the lower surface can remain free of a protruding nut or tail when the stack is suitable.

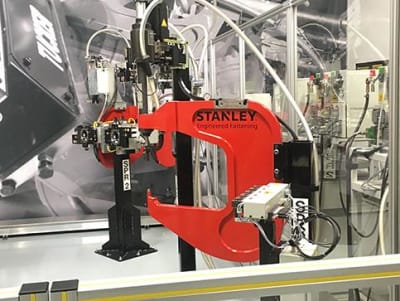

The process requires a setting tool, a die, and rivets selected for the materials and thicknesses involved. Rivet length, hardness, head style, die profile, and setting force are not interchangeable details. The lower sheet must generally provide enough thickness and ductility for the legs to flare without cracking or breaking through. SPR is often selected when a higher and more predictable point-joint capability is needed than a simple clinch can provide, or when a multi-material stack needs a dedicated mechanical fastener.
Choosing Between Clinching and SPR
The decision should begin with the load path and failure consequence. Clinching may be appropriate for covers, brackets, ducts, appliance panels, interior structures, and assemblies where distributed point joints carry shear or moderate peel loads. SPR is often favored for more demanding structural panels, aluminum-intensive assemblies, or stacks in which a rivet’s material and geometry can be specified and verified. Neither description replaces testing: joint performance is strongly dependent on the actual stack and loading direction.
Material compatibility is a critical divider. Very soft, thin, or highly ductile sheets may clinch well, while hard or brittle materials can split around the button. SPR can join combinations that are difficult to clinch, but a rivet that is too hard for the upper sheet can cause head seating problems or cracks. Aluminum, galvanized steel, pre-painted sheet, high-strength steel, and coated laminates each alter friction and deformation. Supplier feasibility work should use production-intent materials and coatings rather than generic substitutes.
Consider access early. Both methods usually need opposing tool access, although specialized equipment and tooling can accommodate particular geometries. The tool must reach the joint without colliding with flanges, ribs, return edges, seals, or nearby components. A CAD feasibility review should identify gun throat depth, die clearance, normal approach direction, and access for maintenance. A joint that is theoretically possible can still be uneconomical if every point requires awkward repositioning.
Appearance and corrosion also affect the choice. Clinching leaves a formed feature that may be acceptable on a hidden flange but undesirable on a Class A surface. SPR leaves a rivet head and can disturb coatings locally. Exposed joints may need a cosmetic cover, sealant, touch-up, or a different joining architecture. Designers should not assume that “no welding” means “no corrosion work.” The joint area still needs a galvanic, moisture, and edge-treatment strategy, particularly when aluminum and steel are combined.
Practical Manufacturing Details for OEM Programs
Define the stack, orientation, and joint envelope
An RFQ should show every layer at the joint, including nominal and minimum-to-maximum thickness, coating or adhesive, substrate grade, grain considerations where relevant, and the intended top and bottom sides. Adhesive can be beneficial because it distributes load and seals a lap, but it changes setting force, squeeze-out, contamination risk, and process sequencing. The supplier should confirm whether clinching or SPR occurs before cure, after cure, or through a wet adhesive film.
The joint envelope must include edge distances, corner radii, nearby holes, embosses, and formed transitions. Placing a joint too near an edge can cause tearing or a weak interlock. A die located over a rib or unsupported region may distort the part instead of forming a stable joint. Local flatness is therefore a process requirement even when the overall part is three-dimensional.
Tooling, force, and process control
A production cell should control more than a nominal press force. The useful process window includes force or energy, stroke, setting depth, tool alignment, die condition, rivet feed for SPR, and part support. Force monitoring can identify a missing rivet, double feed, incorrect stack, or unusual material before the joint leaves the station. For clinching, force-displacement signatures and periodic sectioning can reveal progressive wear or changes in material flow.
Tool wear is a sourcing concern because die geometry directly affects joint quality. Wear may reduce interlock, change button diameter, damage coatings, or increase force. A supplier should define how tools are inspected, cleaned, replaced, and requalified. For SPR, rivet storage and feeding deserve equal attention. Mixed rivet grades, damaged rivets, oil contamination, or poor orientation can create intermittent defects that are difficult to detect visually.
Inspection and validation
Visual inspection is useful for head seating, obvious cracks, misplaced points, and surface damage, but it cannot prove the internal interlock. Destructive cross-sections are commonly used during development and at defined audit intervals. Measurements may include minimum residual bottom thickness for SPR, interlock or undercut, neck thickness, button height, rivet head stand-off, and evidence of cracks or gaps. Acceptance limits must be established for the actual joint design and test method; they should not be copied from an unrelated stack.
Mechanical tests should represent service loading. Shear, cross-tension, peel, coach-peel, fatigue, vibration, and environmental exposure may each reveal different weaknesses. A joint can perform adequately in static shear yet fail under peel or cyclic loading. If the assembly relies on adhesive as well as mechanical points, test the combined system after the relevant cure and environmental conditioning. Validation should also consider tolerance extremes, coating variation, and realistic assembly damage.
Common Failure Modes and Trade-Offs
A weak clinch often results from insufficient material flow, excessive edge proximity, an unsuitable die, or a stack that is too thin or too hard. The button may be undersized, the neck may be thin, or the sheets may separate under peel. Excessive force can create cracking, distortion, or a sharp feature that interferes with neighboring parts. Increasing force is not a universal correction; the tool, support, and stack may need redesign.
SPR failures include rivet head failure, upper-sheet cracking, rivet-leg fracture, lower-sheet breakthrough, inadequate flare, and excessive bottom bulge. A short rivet may fail to create a sufficient interlock, while a long rivet can break through the lower sheet or leave inadequate residual material. Incorrect die geometry can produce a symmetric-looking head with a defective internal flare. Cross-sections and controlled trials are essential when changing rivet grade, sheet thickness, coating, adhesive, or die.
Both processes have trade-offs against welding and conventional bolting. They avoid heat-affected zones, weld spatter, and many post-weld dressing operations, but they do not create a continuously sealed weld line. They may require overlapping flanges, and the local joint can be more sensitive to peel and eccentric loading. Compared with bolts, they can reduce loose hardware and access requirements, but they are less convenient to disassemble and may require destructive repair. Compared with spot welding, they can be attractive for coated or dissimilar materials, but the part must accommodate mechanical deformation and tool access.
RFQ and Pre-Production Checklist
Include the following information before requesting a firm process proposal:
- Complete material stack, thickness ranges, coatings, adhesive, and surface treatments.
- Joint locations, quantity per part, access direction, edge distances, and cosmetic restrictions.
- Required load cases, service temperature, corrosion exposure, vibration, fatigue, and sealing expectations.
- Annual volume, launch timing, takt assumptions, part presentation, and automation requirements.
- Whether the preferred process is mandatory or whether the supplier may propose a technically justified alternative.
- Required records for force monitoring, traceability, destructive audits, and nonconformance handling.
- Tooling ownership, maintenance responsibility, spare-tool strategy, and change-control expectations.
- Validation samples representing nominal and tolerance-limit stacks, including coated and adhesive conditions.
Conclusion
Clinching and self-pierce riveting give OEMs practical ways to join sheet metal without welding heat, but they are engineered processes rather than generic substitutes for welding. Clinching uses controlled deformation of the sheets and can be efficient when the materials are formable and the loads are suitable. SPR adds a specified rivet and can offer greater stack and strength flexibility, provided rivet, die, thickness, coating, and access are matched.
The strongest sourcing decision comes from defining the stack and service requirements first, then comparing feasible joint architectures with sectioned samples, representative mechanical tests, and measurable process controls. When the RFQ addresses geometry, inspection, maintenance, corrosion, repair, and change control, the joining method becomes a controlled manufacturing choice rather than an assumption made from equipment availability.
