Executive summary
A burr is the raised, displaced edge material left when a punch shears sheet or strip through a die. It is not automatically a defect. A small, consistent burr may be acceptable on a hidden edge, while the same condition can cause injury, poor seating, electrical interference, particle generation, or premature fatigue in a precision assembly. For an international OEM buyer, the practical question is therefore not “Can the supplier make a burr-free part?” but “Where may a burr exist, how large may it be, in which direction, and how will compliance be verified?”
Burr control begins in part design and tool setup, not at the deburring station. Punch-to-die clearance, material grade and thickness, edge geometry, press alignment, cutting-edge condition, lubrication, and progression design all influence the fracture pattern. The best control strategy combines a realistic drawing requirement with a stable shearing process, targeted secondary operation, and inspection method matched to function. General shearing principles are described in technical references from the [International Manufacturing Technology Association][1] and [ASM International][2].
This article provides a specification framework for custom stamped parts. It distinguishes burr height from rollover and fracture, explains why burr direction matters, compares prevention with removal, and gives a pre-production and RFQ checklist that reduces ambiguous quotations and late quality disputes.
How a stamping burr forms
Metal stamping cuts by forcing a punch into sheet supported by a die. At first, the material elastically and plastically deforms around the cutting edges. A small rollover or radius forms on the entry side. As load increases, the punch penetrates the sheet and creates a relatively smooth burnished zone. Cracks then initiate near the punch and die edges and propagate through the remaining thickness. When the cracks meet, the slug or part separates. The irregular, sharp projection at the exit side is the burr.
The resulting edge usually contains several features rather than one simple defect. Rollover is the rounded or inclined region where the punch first contacts the material. The burnished land is the smoother sheared area. The fracture zone is rougher and angled. Burr height is the projection beyond the nominal edge, while burr thickness and sharpness describe how readily it can cut skin or release particles. A drawing that specifies only “no burr” does not tell a supplier which feature is restricted or how to measure it.
Burr direction follows the cutting direction. In a conventional blanking operation, the burr commonly appears on the die-exit side of the workpiece; in piercing, the relationship is considered relative to the hole and slug. This matters when parts stack, slide, seal, carry current, or contact a mating component. A burr turned toward a gasket may be more serious than a larger burr facing an open cavity. The buyer should identify critical edges and the required orientation rather than assume every edge has equal risk.
Primary causes and process levers
Punch-to-die clearance
Clearance is the gap between the punch and die cutting edges. It must be suitable for the material, thickness, strength, temper, and operation. Clearance that is too tight can increase cutting force, accelerate edge wear, and produce excessive burnishing or secondary cracking. Clearance that is too wide allows more bending and rollover before fracture; the cracks may not meet cleanly, leaving a large, sharp burr and a poor edge profile. The optimum is a controlled range, not a universal number.

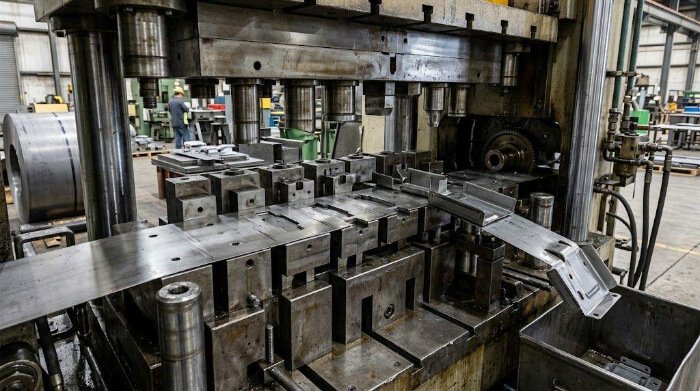

Clearance is also affected by actual tool condition. A tool designed with correct nominal clearance can behave as if it were too open when the punch or die edge wears, chips, or is reground without restoring its intended dimensions. Progressive dies add another consideration: a small location error or strip-feed variation can shift the effective clearance on one side of a cut. Suppliers should monitor the cutting condition and establish a regrind or replacement trigger based on edge quality, force, dimensions, and tool history.
Material and thickness
Ductile low-carbon steel, stainless steel, aluminum, copper alloys, high-strength steels, and spring materials do not fracture in the same way. Strength, elongation, work hardening, coating, rolling direction, and lot variation can change the balance between plastic deformation and crack propagation. Thin material may be especially sensitive to edge damage because a modest absolute burr is large relative to thickness. Conversely, hard or high-strength stock can raise tool loading and encourage chipping if the cutting system is not robust.
Material certification does not by itself guarantee a particular burr result. The part drawing or purchase specification should identify the material standard, grade, thickness and condition, while the process plan should account for its shearing behavior. If multiple material sources are allowed, a supplier may need a controlled trial or first-article review to confirm that the same tool settings remain suitable.
Tool geometry, alignment, and wear
A sharp, properly aligned punch and die produce a more predictable edge than damaged or poorly guided tooling. Excessive clearance at one side, punch-to-die misalignment, uneven stripper pressure, and press deflection can make burrs directional or nonuniform around the perimeter. A rounded punch corner may be intentional for forming, but an unintended radius on a cutting edge changes penetration and can increase rollover and burr height.
Die support and slug removal also influence repeatability. A blocked die opening, weak stripper, or slug pulling back into the work area can damage edges on subsequent strokes. In progressive work, scrap carryover can mark the part or interfere with the next station. Maintenance should therefore address the complete cutting environment, not just sharpen the most visible tool edge.
Part geometry and operation sequence
Small holes, narrow webs, acute corners, and closely spaced features concentrate stress and reduce the room available for a stable fracture. A hole diameter close to material thickness may be feasible in one alloy and problematic in another. Very small edge distances can leave torn ligaments or distort adjacent features. Reliefs, corner radii, and a suitable feature sequence can reduce these risks.
Where function permits, a supplier may use a two-stage operation, fine blanking, shaving, restriking, or a secondary machining step. These methods can improve edge quality but add tool complexity, cycle time, inspection requirements, or scrap risk. The right decision depends on the critical edge and the assembly consequence, not on pursuing a visually perfect perimeter everywhere.
Acceptable limits: specify function, not slogans
A practical burr requirement should answer four questions: which edges are controlled, what measurable limit applies, how the limit is measured, and what action is required if it is exceeded. A general note such as “parts shall be free from sharp edges” can be useful as a safety baseline, but it is not a complete acceptance criterion for a custom stamped component.
Burr height is often the most accessible measurement, but it does not capture every risk. A thin, needle-like burr can be hazardous even when its height is modest. A broad rollover may affect seating despite not being classified as a burr. A loose sliver or partially attached slug is a contamination risk. OEM specifications should therefore combine a numerical limit where necessary with a qualitative condition such as “no loose or detachable metal particles” and a functional statement for mating, sealing, or handling edges.
The limit should be tied to the edge’s role. A concealed edge inside a nonmoving enclosure may tolerate a different condition from a connector contact, a bearing seat, a fluid passage, a hand-accessible surface, or an edge adjacent to an elastomer seal. If deburring changes a critical dimension, radius, flatness, coating, or residual stress condition, the specification must control that consequence too.
| Requirement element | Useful specification question | Why it matters | |---|---|---| | Location | Which perimeter, hole, slot, or formed edge is critical? | Prevents costly blanket treatment of harmless edges. | | Direction | Must the burr face away from a seal, operator, or mating part? | Orientation can determine functional risk. | | Size | Is a maximum burr height, thickness, or edge radius required? | Makes acceptance measurable. | | Condition | Are rollover, slivers, cracks, and sharpness included? | Captures risks height alone misses. | | Verification | What tool, magnification, sampling, and frequency apply? | Aligns supplier and buyer inspection. | | Post-process impact | What dimensions, finish, coating, or cleanliness may not change? | Avoids solving burrs by creating another defect. |
For high-consequence edges, the buyer should provide a datum or edge-zone callout and agree on the measurement method before tooling release. Optical measurement, calibrated microscopy, tactile methods, edge-radius gauges, or functional gaging may each be appropriate in different situations. The method must have enough resolution and repeatability for the stated limit. “Visual inspection” is not sufficiently precise unless lighting, magnification, sample size, and defect examples are defined.
Prevention versus deburring
The lowest-risk solution is often to prevent a large burr through correct clearance, alignment, material control, and scheduled tool maintenance. Prevention protects dimensions and avoids introducing media, chemicals, or handling damage. It cannot eliminate the basic shearing mechanism, however, and some geometries or safety requirements justify a secondary operation.
Mechanical methods include tumbling, vibratory finishing, brushing, abrasive belt work, scraping, and brushing with dedicated tooling. These are efficient for accessible edges and high volumes, but they can round corners, alter small tabs, entangle parts, or leave abrasive residue. A process engineer should confirm that the part does not have delicate features or surfaces that will contact a seal, electrical terminal, or optical component.
Thermal, electrochemical, chemical, and precision machining methods can reach difficult internal edges or provide a controlled edge condition. They may introduce heat, chemical compatibility concerns, masking needs, environmental controls, dimensional change, or surface finish variation. For stamped parts with a few critical holes, a localized shaving or brushing step may be more controlled than treating the entire component. For parts requiring a defined radius, the drawing should call for that radius rather than relying on an unspecified “deburr.”
Every deburring operation should be validated for both removal and damage. Check for residual slivers, embedded abrasive, discoloration, burr rollover into the hole, loss of plating, distortion, and changes to hole size or edge location. The process should be capable across the expected tool-life interval, not only immediately after a tool change.
Common failure modes and trade-offs
One common failure is selecting a very tight burr limit without allowing the supplier to identify which edges truly require it. The supplier may deburr all edges, increasing cost and potentially changing dimensions, while the buyer receives no functional benefit. A better approach is a critical-edge map with differentiated requirements.
Another failure is treating burr height as the only quality variable. A part can meet a height limit yet contain a loose feather, a sharp crack, or a burr directed into a seal. Conversely, an edge with visible rollover may be safe and functionally acceptable. Acceptance should reflect the failure mechanism the assembly can tolerate.
Over-aggressive deburring creates its own defects. Abrasive action can produce excessive edge rounding, expose substrate beneath a coating, smear soft aluminum or copper, or remove a locating corner. Manual scraping can be inconsistent and may leave tool marks. Chemical or thermal techniques can affect finishes and require downstream cleaning. Suppliers should document the selected method, control points, and reaction plan for out-of-limit parts.
A further failure is changing material, thickness, or coating after process approval without reassessing the edge. These changes can alter cutting forces and fracture behavior. Tool sharpening, die repair, and press changes deserve the same discipline. A control plan should link burr inspection to the events most likely to change the process.
RFQ and pre-production checklist
An RFQ should let a capable supplier distinguish ordinary stamped-edge condition from a controlled critical feature. Include the following information in the drawing package and technical inquiry:
- Mark critical external edges, pierced holes, slots, and contact surfaces by location or zone.
- State the material standard, grade, thickness, temper, coating, and permitted substitutions.
- Define maximum burr height or edge-radius requirements where function requires a number.
- State whether rollover, fracture cracks, loose slivers, sharp edges, or particles are prohibited.
- Identify the acceptable burr direction and any edges that must face away from seals or operators.
- Describe the inspection method, magnification, gage, sampling plan, and first-article evidence expected.
- Ask the supplier to identify the proposed tool type, operation sequence, clearance basis, and deburring method.
- Require confirmation that deburring will not violate hole size, profile, flatness, coating, cleanliness, or surface-finish requirements.
- Define how tool wear, regrinding, material-lot changes, and process deviations will be controlled.
- Request representative samples or an agreed edge-condition standard before production release.
Before production, review a cross-section or high-magnification sample from each critical edge family. Confirm the worst-case feature, not just a convenient straight edge. Check parts after the intended cleaning and finishing sequence, because washing, tumbling, plating, or heat treatment may expose or conceal conditions. Establish a reaction plan: segregate suspect material, identify the last accepted check, investigate tool and material causes, and obtain disposition before shipment.
Concise conclusion
Burr control in metal stamping is a coordinated design, tooling, material, maintenance, and inspection issue. Burrs arise from the normal penetration-and-fracture sequence, but their size, sharpness, direction, and consistency can be managed. International OEM buyers get better results when they map critical edges, specify measurable and functional limits, select a verification method with adequate resolution, and require suppliers to explain prevention and removal without damaging the part. A clear RFQ turns “burr-free” from an ambiguous slogan into a controllable manufacturing requirement.
