Executive Summary
Bend radius is one of the smallest dimensions on a sheet-metal drawing, yet it can determine whether a part is easy to form, expensive to tool, difficult to inspect, or impossible to produce without defects. For an OEM buyer or design engineer, the important question is not simply, “What is the smallest radius?” It is, “What radius gives the required function while remaining compatible with the material, thickness, tooling, grain direction, bend method, and tolerance plan?”
The inside bend radius is the radius formed on the compressed inside surface of a bend. It should be distinguished from the outside radius, which is approximately the inside radius plus material thickness, and from the neutral axis, whose position shifts according to the material and forming condition. A radius that looks generous in a CAD model may still create a demanding operation if the alloy is strong, the sheet is thick, or the bend runs across an unfavorable grain direction.
A robust specification identifies material grade and temper, nominal thickness, bend angle, bend-line orientation, inside-radius intent, critical dimensions, and acceptable visual or functional imperfections. It also leaves the manufacturing supplier enough information to select suitable press-brake tooling or another forming process. This approach reduces quotation assumptions and makes design reviews more productive.
What Bend Radius Means in Production

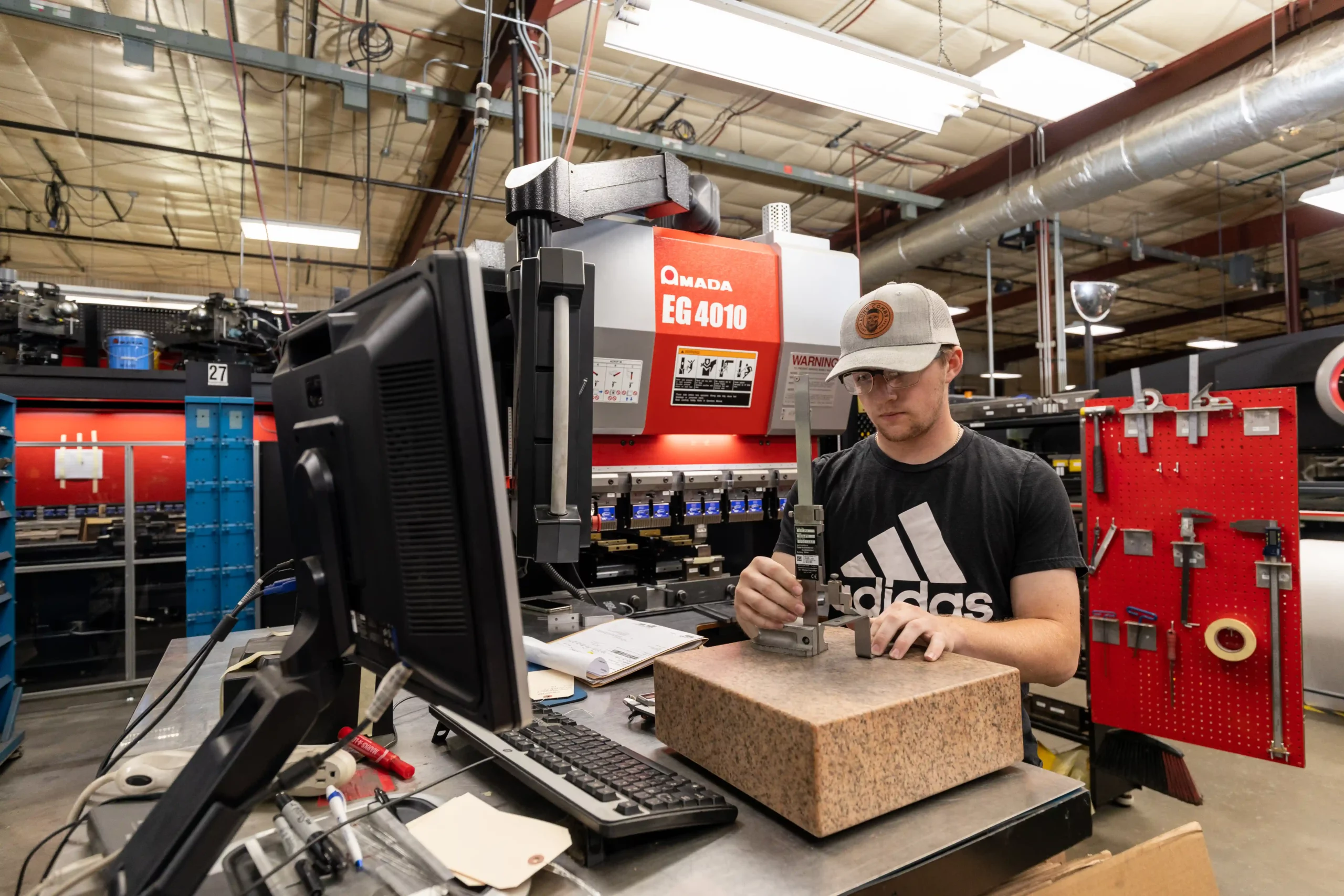

In a press-brake operation, a punch drives sheet into a die opening. The resulting radius is influenced by punch geometry, die width, material strength, thickness, bend length, forming method, and machine control. In air bending, the sheet contacts the punch tip and two die shoulders, so the final angle and radius depend substantially on the relationship between the tool opening and the material. Bottoming and coining constrain the sheet more strongly and can produce different repeatability, force, and tooling requirements.
The radius shown on a drawing normally refers to the inside radius unless the document states otherwise. That convention should never be left to assumption on a critical part. A drawing may show a dimension such as “R2” at a flange, but the supplier still needs to know whether that is a true formed radius, a maximum radius, or a nominal target with a general tolerance. If the radius is functionally important, it deserves a direct tolerance or an inspection method.
For a simple 90-degree bend, the developed flat length is not obtained by adding the two finished flange dimensions. The bend allowance or bend deduction accounts for material deformation around the bend. Its value changes with inside radius, thickness, material, tooling, and the selected K-factor. A small radius generally changes the developed length and may increase sensitivity to variation. Therefore, bend-radius design is connected to blank development and final dimensional control, not only to visual appearance.
Minimum, preferred, and functional radius
A **minimum radius** is a process limit below which cracking, excessive thinning, unacceptable distortion, or tool damage becomes likely for a particular material and direction. It is not a universal property of a material family. A **preferred radius** gives the manufacturer more process margin and usually improves consistency. A **functional radius** is selected because it satisfies clearance, fatigue, assembly, sealing, airflow, or appearance requirements.
These three concepts should be separated during design review. If a part requires a very tight radius for assembly, the team should confirm that the requirement is real rather than inherited from an arbitrary CAD default. If the radius has no functional purpose, increasing it may improve manufacturability without affecting performance. Conversely, replacing a specified radius with a much larger one can interfere with mating parts, reduce clearance, or change stiffness, so “larger is always better” is not a sufficient rule.
How to Select a Workable Radius
Start with the material and thickness rather than with a generic radius table. Mild low-carbon steel, stainless steel, aluminum alloys, copper, and high-strength steels respond differently to forming. Temper, rolling history, surface condition, and supplier variation also matter. Two sheets with the same nominal alloy and thickness can require different process settings if their yield strength or elongation differs within the applicable specification.
A useful early screen is to express the proposed inside radius as a multiple of material thickness. This ratio helps compare designs, but it should be treated as a planning index, not a guaranteed limit. A ratio near or below one thickness may be feasible for some ductile sheet and bend orientations, while other alloys require a larger radius. High-strength or less-ductile materials commonly need more generous radii, controlled tooling, and closer process validation.
The bend line matters because sheet is anisotropic. Rolling elongates grains and can make transverse and longitudinal bending behave differently. In many materials, bending across the rolling direction is more tolerant of tight radii than bending parallel to it, although the correct orientation depends on alloy, temper, thickness, and supplier practice. The drawing or purchase specification should identify grain direction when it is important, especially for visible panels, structural parts, and tight-radius features.
A practical selection sequence
The following sequence gives an OEM team a disciplined starting point:
- Define the material grade, temper, thickness range, surface condition, and required finish.
- Identify whether the radius is functional, cosmetic, fatigue-related, or simply a default geometry.
- Set a preferred radius that preserves clearance and assembly requirements while avoiding an unnecessarily severe bend.
- Check the ratio of inside radius to thickness against the material supplier’s forming guidance and the fabricator’s process capability.
- Confirm bend direction, minimum flange length, hole-to-bend distances, and nearby cutouts.
- Review springback and dimensional tolerances using the intended forming method.
- Request a first-article or process sample when the radius is tight, the material is high strength, or the feature is critical.
This sequence helps prevent a common sourcing error: asking for a nominal radius without defining the conditions under which it must be achieved.
Springback and Angle Control
Springback is the elastic recovery that occurs after forming pressure is released. The part opens toward its original shape, so a press brake may need to overbend the sheet to reach the specified final angle. The amount depends on material strength, thickness, inside radius, bend angle, tooling, and the deformation distribution through the thickness. Stronger materials and larger radius-to-thickness ratios can make springback more pronounced, but the actual result must be established by the selected process.
Springback affects more than the angle. It can alter flange position, overall part dimensions, hole alignment, and the relationship between multiple bends. If several bends accumulate in one part, a small angular error at each station may produce a significant final mismatch. Suppliers compensate using machine programs, angle measurement, empirical bend tables, or other controls. These methods are most effective when the material and tooling are stable.
OEM drawings should avoid specifying an angle tolerance tighter than the application needs. A very tight angle tolerance may require specialized in-process measurement, controlled material batches, or a more restrictive forming method. If a mating interface truly needs tight control, define the functional datum scheme and identify which surfaces or dimensions are critical. This allows the supplier to control the right characteristic instead of chasing every nominal dimension equally.
Design Details That Interact With Radius
A tight bend near a hole, slot, notch, emboss, or formed feature can distort the opening or create a tear path. As a general design principle, keep pierced features far enough from the bend zone that the material can deform without pulling the feature into the radius. The required distance depends on thickness, radius, feature size, tooling, and the capability of the fabricator. When space is limited, a relief notch, elongated opening, or revised feature orientation may be more robust than simply demanding a tighter bend.
Minimum flange length is also linked to die geometry. A short flange may drop into the die opening, contact the wrong tool surface, or become difficult to locate consistently. The supplier should review flange length relative to thickness, radius, die opening, and the selected punch. A design that is mathematically valid in CAD can still be impractical if the tooling cannot support the flange during forming.
Corner intersections deserve special attention. Two perpendicular bends meeting at a corner often need a bend relief to prevent material buildup, tearing, or an uncontrolled notch. Relief shape and size affect appearance and strength. A relief that is too small may not prevent cracking; one that is too large may weaken the corner or expose an unwanted gap. If the corner is visible or sealed, specify the acceptable condition and review it with the manufacturer before release.
Welded assemblies introduce another trade-off. A larger radius can improve formed-part integrity, but it may change weld access or the fit between adjacent panels. A smaller radius may preserve an envelope while increasing residual stress or distortion. The best design is often a coordinated decision across forming, welding, coating, assembly, and inspection rather than a radius decision made in isolation.
Common Failure Modes and Trade-Offs
**Cracking at the outside of the bend** is associated with excessive tensile strain. Contributing factors can include a radius that is too tight, unfavorable grain orientation, hard temper, surface damage, burrs, or inconsistent material. Increasing the radius, changing bend direction, improving edge quality, or selecting a more suitable material condition may help. A supplier may also recommend a different sequence or forming method, but no compensation should be assumed without validation.
**Unexpectedly open angles or inconsistent flanges** usually point toward springback variation, unstable material properties, inconsistent setup, or an unsuitable inspection datum. Tightening the drawing tolerance alone does not solve the process cause. The team should first establish repeatable tooling and a measurement method, then decide whether the tolerance is achievable and necessary.
**Surface marking** can result from die shoulders, punch contact, protective film movement, or contamination. It is especially important on prefinished stainless steel and cosmetic aluminum. Specify whether tooling marks are acceptable, whether the bend must be made with protective film, and which surfaces are customer-facing. A cosmetic requirement should include a practical viewing condition rather than an undefined demand for perfection.
**Hole distortion and corner tearing** often arise when features are too close to the bend or when relief geometry is inadequate. Moving the feature, changing its orientation, adding relief, or separating the operation into a more suitable sequence may be preferable to holding an unrealistic location tolerance.
The main trade-off is that tighter radii can save envelope space but consume process margin. Larger radii may improve consistency and tool life but require more clearance and can change the part’s fit. A sourcing team should compare the total manufacturing consequence, not only the apparent material usage or CAD compactness.
RFQ and Pre-Production Checklist
An RFQ package should make the bend requirement unambiguous while allowing the supplier to propose a controlled process. Include the following information where applicable:
- Material standard, grade, temper, thickness, and surface finish.
- Inside-radius definition, nominal value, tolerance, and whether the radius is functional or cosmetic.
- Bend angle tolerances and the dimensions that must be inspected from functional datums.
- Grain-direction requirements for tight, visible, or structural bends.
- Bend sequence constraints, assembly interfaces, and prohibited tool marks.
- Locations of holes, slots, notches, welds, embosses, and other nearby features.
- Bend-relief requirements or permission for the supplier to recommend relief geometry.
- Flat-pattern approval responsibility and revision-control method.
- First-article expectations, sample quantity, inspection report content, and acceptance criteria.
Before production release, ask the fabricator to confirm the proposed tooling, forming method, estimated springback compensation, and any features that fall near a process limit. For a critical part, review a formed sample rather than approving only the flat blank. Inspect the radius, angle, flange location, hole position, corner condition, and visible surface together because these characteristics interact.
The purchasing organization should also clarify what happens when the specified radius cannot be held with standard tooling. Acceptable alternatives might include a larger radius, a revised relief, a different bend sequence, or a controlled deviation submitted for engineering approval. This is better than allowing an undocumented substitution during production.
Conclusion
Bend radius is a design, process, and sourcing variable at the same time. The minimum feasible value depends on material behavior, thickness, grain direction, tooling, forming method, and the surrounding geometry. The preferred value is the one that meets functional requirements with useful manufacturing margin, not necessarily the smallest radius a supplier can produce once.
For international OEM programs, the clearest specification combines a defined inside radius, appropriate angle and dimensional tolerances, material condition, feature clearances, cosmetic expectations, and a practical first-article plan. Early supplier review is especially valuable for tight bends, high-strength sheet, visible surfaces, and assemblies with accumulated angular requirements. When the drawing communicates intent rather than only geometry, suppliers can quote more consistently and engineers can make better decisions about quality, risk, and total production effort.
