Executive summary
Anodising is an electrochemical conversion process that transforms the surface of aluminium into a controlled aluminium oxide layer. Unlike paint, the coating is integrated with the substrate rather than sitting on top of it. That distinction gives anodised parts useful resistance to abrasion, weathering, and corrosion while preserving a metallic appearance. It also creates design and purchasing obligations: alloy chemistry affects colour, geometry affects current distribution, masking affects function, and sealing affects long-term performance.
For an OEM buyer, the central question is not simply whether a part can be anodised. It is whether the selected aluminium grade, machining route, surface preparation, anodising type, colour, sealing method, and inspection plan are compatible with the part’s service environment and functional surfaces. A vague instruction such as “black anodise” leaves too much open to interpretation. A robust specification identifies the applicable finish standard, coating class or thickness, colour acceptance method, masking locations, pre-finish dimensions, and any required corrosion or abrasion testing.
The process is especially effective for machined housings, brackets, panels, heat-sink components, instrument parts, and consumer or industrial assemblies where a clean appearance matters. It is not a universal substitute for hard chrome, electroless nickel, powder coating, or a mechanically thick wear surface. The correct decision depends on load, exposure, electrical requirements, visual expectations, and total part architecture.
What anodising does to aluminium
Aluminium naturally forms a thin oxide film when exposed to air. Anodising deliberately thickens and structures that oxide through an electrolytic reaction. The aluminium part is connected as the anode in an acidic electrolyte, while a cathode completes the electrical circuit. Direct current drives oxygen-containing ions toward the aluminium surface, where a porous oxide layer develops. The pores may then accept dyes or inorganic colourants before sealing closes much of the pore structure.
The resulting layer is hard compared with the underlying metal and can protect against many forms of atmospheric corrosion. However, anodic oxide is ceramic-like and relatively brittle. It does not behave like a ductile metallic deposit, so sharp impacts, aggressive forming after treatment, or contact with hard debris can still cause chipping, scratching, or local wear. The coating also follows the existing surface. Machining marks, pits, rolled-in inclusions, and inconsistent blasting are not erased by anodising; in many cases, the finish makes them more visible.
The pores are central to both the benefits and limitations of the process. They enable decorative colouring and can retain lubricants in some engineered treatments, but they also make process cleanliness and sealing important. Poor rinsing, contamination, or inadequate sealing may reduce appearance consistency or resistance to staining. Buyers should therefore treat anodising as a complete surface-preparation and conversion sequence, not as a single tank operation.

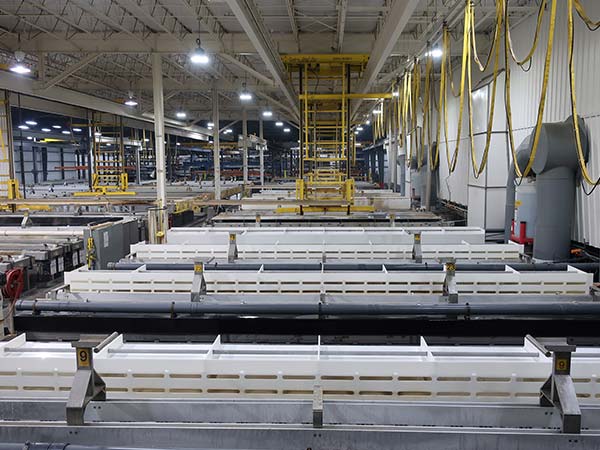

The production sequence from machined blank to finished part
1. Alloy and condition selection
The alloy should be chosen before the finish is written into the drawing. Wrought alloys in the 5000, 6000, and 7000 families can all be anodised, but they do not produce identical appearance or response. Silicon, copper, zinc, iron, manganese, and the material’s temper influence oxide formation and colour uniformity. High-silicon castings and some heavily alloyed grades may appear grey, mottled, or less receptive to decorative dye than a common architectural or machining grade.
For a cosmetic component, a buyer should ask the supplier to approve the exact alloy and, where appearance is critical, the same material source or a controlled reference panel. For a hidden bracket, a wider visual range may be reasonable. This is a commercial and engineering decision: demanding a uniform deep black across mixed alloys can increase risk without improving function.
2. Machining, deburring, and preparation
Parts are cleaned to remove coolant, oil, fingerprints, and shop residue. They may then receive a caustic etch, brightening treatment, mechanical finishing, or blasting. Each operation changes the final visual texture. Etching can soften machining lines and create a matte appearance, while brightening can produce a more reflective surface. Brushing and bead blasting create directional or diffuse effects that anodising will preserve.
Edges should be deburred before treatment, but not made knife-sharp. Sharp edges concentrate electrical fields and are more vulnerable to burning, thin coverage, and handling damage. A practical drawing should define edge breaks where they affect assembly, and the supplier should be told which cosmetic faces require consistent preparation. Thread cleanliness, hole accessibility, and internal cavities also deserve review because trapped chemicals can create staining or later corrosion.
3. Racking and electrical contact
The part must be held in a rack with a conductive contact point. That contact may leave a small uncoated mark, so it belongs on a hidden face, inside a bore, or in a later-removed machining allowance whenever possible. Contact design also affects part stability and current flow. Thin walls, flexible panels, and deep cavities may need support to avoid distortion or uneven treatment.
A rack mark should not be treated as a defect when it is located in the agreed mask zone. It becomes a quality problem when it appears on a sealing land, visible exterior, grounding surface, or critical fit. The RFQ should show contact and masking locations with a drawing view or datum-based note rather than relying on a general email instruction.
4. Cleaning, etching, and anodic oxidation
After pretreatment, the part enters the anodising bath. Voltage, current density, electrolyte temperature, time, agitation, and bath condition influence the oxide structure. Decorative anodising commonly uses a thinner, appearance-oriented coating, while harder anodic treatments use a thicker and more wear-resistant layer. Exact process windows vary by equipment, alloy, geometry, and governing specification, so a drawing should reference a recognized standard or supplier-approved process rather than prescribe an arbitrary voltage and time.
The coating grows partly into the aluminium and partly outward from the original surface. The balance is process-dependent, but the important purchasing implication is that finished dimensions can change. A tight bore, bearing seat, connector interface, or sliding fit may require masking, post-anodise sizing, or a design allowance. Blind holes and narrow slots can also receive less uniform current exposure than open faces.
5. Colouring and sealing
Natural or clear anodising leaves the metal’s own tone visible. Dyed finishes use the porous oxide to absorb colour, with black, bronze, red, blue, and other shades possible depending on the process. Colour should be specified with a physical master, an agreed colour system where applicable, and a defined viewing method. Digital screen values and generic names such as “satin black” are not sufficient production controls.
Shade variation can arise from alloy composition, grain structure, local surface preparation, rack position, bath age, dye concentration, and part orientation. Large panels and parts from different heat lots may not match perfectly even when processed together. If components will be installed side by side, the buyer should state whether they must be anodised in one controlled lot and whether adjacent parts require visual matching.
Sealing reduces pore openness and helps improve resistance to staining and environmental attack. Hot-water, steam, and chemical sealing are among the process families used in industry. Sealing can slightly alter colour and may reduce some dye stability if poorly controlled. The specification should identify whether the requirement is decorative appearance, functional corrosion resistance, electrical insulation, or a combination, because those objectives can pull the process in different directions.
Choosing the finish for the application
A useful selection begins with the service environment rather than the desired colour. Clear or coloured decorative anodising may suit indoor equipment, housings, trim, and moderately exposed assemblies. A harder anodic treatment may be more appropriate for sliding contact, repeated handling, or abrasive exposure, although it still requires realistic contact materials and load assumptions. In marine, chemical, or highly contaminated environments, anodising may need to be combined with careful alloy selection, sealing, drainage, and compatible fasteners.
| Requirement | Specification question | Main trade-off | |---|---|---| | Appearance | Which faces are cosmetic, and what reference controls shade and gloss? | Tighter matching can limit alloy and lot flexibility. | | Wear | Is contact sliding, impact, or merely handling? | A thicker coating may affect fits and still be vulnerable to impact. | | Corrosion | What chemicals, humidity, salt, or outdoor exposure are expected? | Sealing and testing add control requirements; anodising is not immunity. | | Dimensions | Which bores, threads, seats, and datums are functional after finish? | Masking or post-treatment machining may be necessary. | | Electrical function | Must the surface remain conductive or become insulated? | Anodic oxide is generally electrically insulating, except at intentional contacts. | | Repairability | Can scratches or local damage be accepted or refinished? | Local touch-up may not match the original shade or texture. |
Anodising also changes assembly behavior. The oxide is insulating, so grounding paths should use designated uncoated pads, threaded inserts, conductive washers, or another deliberate interface. Fastener selection matters because dissimilar metals and trapped moisture can create galvanic corrosion. Drain holes, venting, and avoidance of liquid traps are often more valuable than a stronger finish name.
Common failure modes and how to prevent them
**Uneven colour or mottling** is often linked to alloy variation, inconsistent etching, mixed material lots, or different rack positions. Prevention starts with approved alloy and preparation samples, followed by a visual standard that recognizes the realistic range of the chosen material.
**Burn marks and thin areas** can occur near contacts, sharp edges, or regions with unfavorable current density. Rounded edge breaks, improved racking, and a review of difficult geometry reduce risk. The supplier should identify areas where the specified coating class cannot be guaranteed uniformly.
**Staining, white marks, or water spots** may result from poor rinsing, handling, trapped solution, or incomplete sealing. Parts should be designed for drainage, thoroughly rinsed, dried without contamination, and protected from fingerprints during inspection and packing.
**Peeling or flaking** is not normally expected from a properly formed anodic layer, but local damage, embedded contamination, severe mechanical deformation, or an unsuitable substrate can compromise it. Rejecting an entire batch without first distinguishing substrate defects from process defects can lead to the wrong corrective action.
**Dimensional interference** commonly appears when an unmasked bore, thread, or seat was assumed to remain unchanged. The drawing should identify post-finish functional dimensions and, where needed, define a masking method or finishing allowance. It is safer to resolve this during design review than to discover it during assembly.
**Cosmetic scratches and rack marks** are controlled through handling instructions and agreed acceptability zones. A part can meet coating thickness and corrosion requirements while failing the customer’s visual expectation. Both criteria belong in the purchase specification.
RFQ and pre-production checklist
A technically useful RFQ gives the finisher enough information to quote the same requirement that engineering intends to buy. Include the aluminium alloy, temper or casting designation, part revision, quantity, and whether parts are machined, cast, extruded, or fabricated. Identify the finish type, colour, surface preparation, sealing expectation, and applicable standard. If the standard permits multiple classes, state the required class or performance level.
Mark cosmetic surfaces, acceptable rack locations, no-coat zones, grounding points, threads, bores, bearing seats, and sealing lands. State finished dimensions for critical features and explain whether inspection occurs before or after anodising. Clarify whether plugs, custom masks, sacrificial fixtures, or post-finish machining are permitted. For assemblies, specify whether colour matching applies across separate components and whether parts must be processed in one lot.
Before production approval, request a representative sample or first-article lot made from the intended alloy and using production-equivalent preparation and racking. Review colour under an agreed light source and viewing angle, but also inspect edges, holes, recesses, contact marks, and functional interfaces. A sample that looks good on a flat face may reveal problems in the geometry that matters most during assembly.
The buyer should also agree on inspection records. Depending on risk, these may include material certificates, coating-thickness readings, colour comparison, dimensional inspection, sealing or corrosion-related testing, and photographs of designated cosmetic areas. Test methods and acceptance limits should be named rather than implied. Sampling plans should be proportionate to the part’s safety, visibility, and replacement cost.
Questions to ask the finishing supplier
Ask how the selected alloy typically responds to the proposed finish, which surfaces will be contacted by the rack, how difficult cavities will be handled, and how colour matching is controlled between lots. Confirm whether coating thickness is measured on representative faces and whether the method is suitable for the geometry. Ask what happens if a part fails appearance inspection: can it be stripped and reprocessed, and what dimensional or cosmetic risks would that create?
It is equally important to ask what the supplier cannot guarantee. No responsible process partner should promise identical appearance across incompatible alloys, unlimited uniformity in deep recesses, or restoration of a damaged finish without qualification. Clear limits at quotation stage help an OEM choose between redesign, masking, a different finish, or a wider acceptance range.
Conclusion
Anodising is a capable and visually distinctive finish for aluminium OEM parts, but its success depends on decisions made before the first batch reaches the finishing line. Alloy, preparation, geometry, racking, colour control, sealing, and dimensional inspection are connected variables. The strongest specification treats them as one manufacturing system.
For sourcing teams, the practical path is straightforward: define the service environment, identify functional and cosmetic surfaces, approve the exact material and finish through representative samples, and place measurable acceptance criteria in the RFQ and drawing. That discipline reduces avoidable rework while preserving the advantages of anodised aluminium: a durable conversion layer, a controlled metallic appearance, and a finish that can be integrated into a well-designed production part.
References
[1]: https://www.anodizing.org/ “Aluminum Anodizers Council, Anodizing Fundamentals” [2]: https://www.iso.org/standard/67675.html “ISO 7599, Anodizing of Aluminium and Its Alloys” [3]: https://www.astm.org/b0580_b0580m-20.html “ASTM B580, Standard Specification for Anodic Oxide Coatings on Aluminium”
